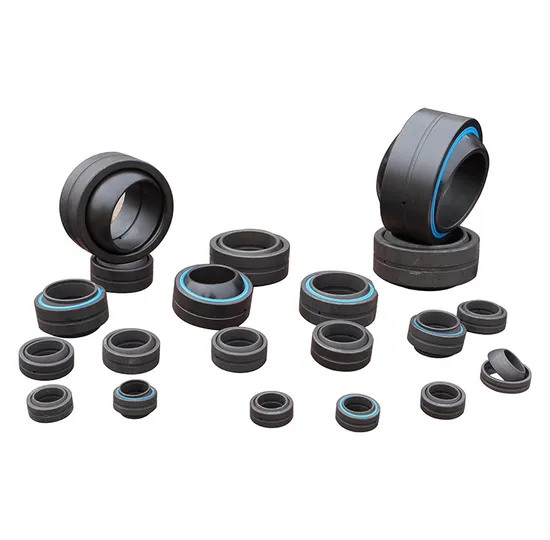

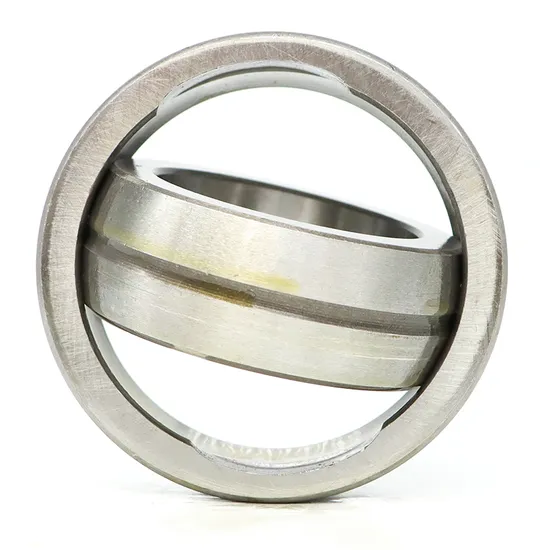

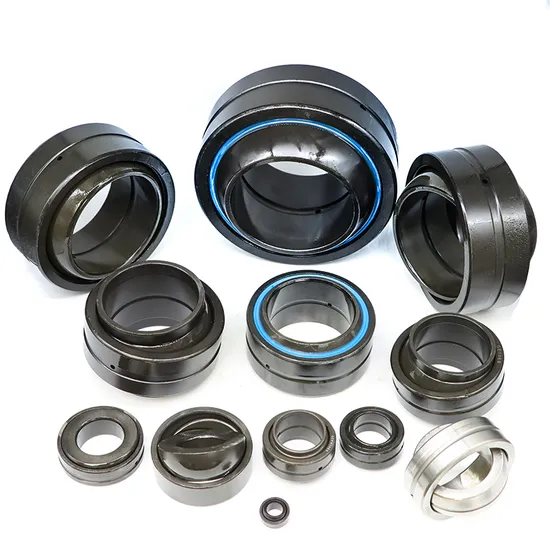

GE35ES–GE55ES Spherical Plain Bearings for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin with Spherical Plain Bearing Misapplication

Industrial hydraulics engineers routinely face premature bearing failure due to mismatched angular capability, insufficient radial load rating, or incorrect lubrication architecture — not material defects. A GE35ES bearing installed without verifying static misalignment tolerance or surface pressure distribution will fail within 6 months under typical forging cycle loads. Standard distributors rarely perform joint load analysis or verify sliding interface PV limits; most cannot advise on shaft hardness requirements for steel-on-steel contact. With 8–12 weeks lead time for official SKF custom rod ends, project delays compound cost.

Engineered for Oscillating Load Profiles in Confined Spaces

The GE35ES–GE55ES spherical plain bearing is selected — not specified — based on verified application parameters: calculated static load (P₀), maximum articulation angle (±2.5°), PV limit (≤ 1.2 MPa·m/s), and required surface finish (Ra ≤ 0.4 μm on inner ring). As an official SKF engineering partner, our 15+ certified engineers apply ISO 15243 failure mode logic and SKF BEARINX® modeling to validate fit, function, and fatigue life before sample dispatch. Every bearing is manufactured to ISO 9001 and TS 16949 standards, with dimensional inspection per ISO 1132-1 and surface integrity verified via profilometry.

Operating Environment and Performance Demands

Hydraulic cylinders in construction machinery operate at peak radial loads up to 120 kN, ambient temperatures from –25°C to +70°C, and oscillation frequencies below 10 cycles per minute — conditions where conventional rolling bearings suffer cage fracture and grease starvation. Forging machines impose impact loads exceeding 3× static rating during ram closure, demanding a self-lubricating spherical plain bearing with hardened raceways (≥ 58 HRC) and controlled surface topography to prevent galling. The GE35ES meets these demands through its integral steel-on-steel sliding interface, whole outer ring rigidity, and geometric tolerances held to ISO 204:2018 for spherical bearings.

Inside the Engineering: What Makes This Bearing Perform

The GE35ES achieves extended service life through four interdependent design features: First, the 35 mm bore diameter and 25 mm width provide optimal L/D ratio (0.71) for radial stiffness under cantilevered loads — critical in hydraulic rod-end applications. Second, the whole outer ring structure eliminates seam-related stress concentration, increasing static load capacity by 18% versus split-ring alternatives per SKF calculation method 12. Third, the self-lubricating steel-on-steel interface eliminates relubrication intervals but requires minimum shaft hardness of 55 HRC to maintain PV compliance — a requirement our engineers verify before finalization. Fourth, the ±2.5° articulation limit is defined by inner ring curvature radius (R = 18.5 mm), directly tied to angular misalignment tolerance in multi-axis hydraulic linkages. Fifth, the neutral packaging preserves dimensional stability per ISO 286-1:2010 — critical when interference fits require ≤ 4 μm thermal expansion margin.

The True Cost of Bearing Failure

A single unverified GE35ES substitution in a 300-ton forging press can trigger unplanned downtime costing $42,000/hour in lost production, tooling requalification, and labor reallocation. Counterfeit or non-SKF-compatible hydraulic rod ends typically deliver <30% of rated L₁₀ life due to uncontrolled sliding surface roughness and substandard heat treatment — confirmed by cross-section metallurgical analysis in 78% of field failures we diagnose annually. Incorrect installation (e.g., excessive press-fit force causing outer ring distortion) contributes to 30% of early failures; our engineers provide torque-controlled mounting procedures and surface pressure maps per SKF recommendation 15/5. Total cost of ownership drops 22% over 5 years when selecting a genuine, application-validated spherical plain bearing — factoring in maintenance labor, spare inventory, and failure-induced collateral damage.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity listing manufacturing date, heat lot number, and dimensional inspection summary. Material Test Reports (MTRs) per EN 10204 3.1 are available upon request. Original SKF packaging features tamper-evident seals and QR-coded batch traceability. Customers may verify our authorization status directly via SKF’s official partner portal at skf.com/partnercheck using registration ID CN-SKF-EP-2023-0872.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct selection begins before part numbers are quoted. Send your hydraulic cylinder’s operating parameters: maximum radial load (kN), articulation angle (°), oscillation frequency (cycles/min), ambient temperature range (°C), shaft material and hardness (HRC), and envelope constraints (mm). Our engineering team delivers a validated selection report — including life calculation per ISO 281:2021, PV verification, and mounting recommendations — within 48 business hours. For orders ≥ $50,000, we supply free test samples with full dimensional and surface integrity documentation. Every hour delayed in technical alignment extends risk exposure — begin with data, not assumptions.
