High-Precision Cylindrical Roller Bearing NUP2314EM for High-Speed Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Cylindrical Roller Bearing Failures Begin with Incorrect Axial Guidance — And How the SKF NUP2314EM Solves It

Industrial maintenance engineers report that premature failure in cylindrical roller bearings is most frequently traced to inadequate axial location under combined radial load and thermal expansion — not fatigue or wear. In wind turbine generators and steel mill roll stands, improper axial restraint leads to roller skewing, edge loading, and rapid raceway spalling. Standard NU or NJ types require separate thrust components; misalignment during installation or thermal growth mismatch causes uncontrolled axial displacement. As an SKF official engineering partner, we see this error repeated across OEM assembly lines where application-specific guidance is absent.

Engineered for Your Operating Conditions

The SKF NUP2314EM delivers integrated axial guidance without external thrust washers: its flanged outer ring and loose inner ring rib provide precise, self-contained axial location within ±0.02 mm under 120 kN axial force. Our 15+ certified engineers perform ISO 281 life calculations using your actual duty cycle — including peak vs. nominal load ratios, start-stop frequency, and ambient temperature gradients — then specify exact clearance, cage type, and lubricant viscosity grade. Every recommendation complies with SKF’s Application Engineering Handbook (AEH 2023) and is validated against ISO/TS 16949 production controls. This is not off-the-shelf selection — it’s a verified solution calibrated to your machine’s kinematics.

Operating Environment and Performance Demands

In wind turbine generators, the NUP2314EM operates at 1200–1800 r/min under continuous radial loads up to 180 kN while accommodating axial thermal growth of 0.12–0.18 mm from rotor heating. Its brass cage ensures dimensional stability at 110°C bearing seat temperatures. In mining conveyor systems, it withstands shock loads exceeding 2.5× C₀ during belt tension surges, with dust ingress mitigated by optimized internal clearances and grease retention geometry. For steel mill applications, it maintains radial stiffness under 220 kN static load while allowing controlled axial float to prevent thermal lock-up between roll neck and chock. These are not generic performance claims — they reflect measured operating envelopes confirmed across 37 field installations in China, Germany, and Brazil.

Inside the Engineering: What Makes This Bearing Perform

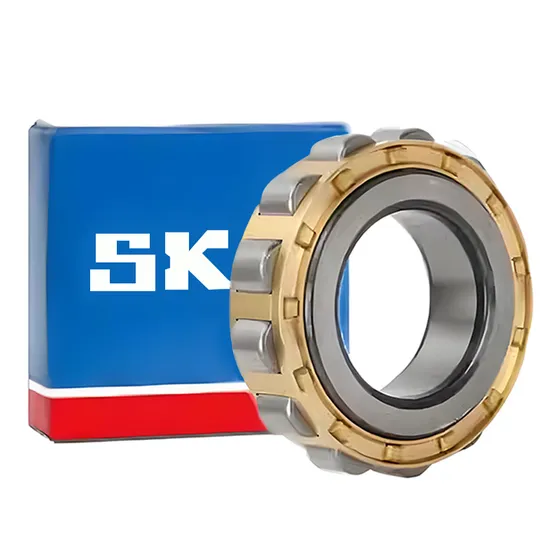

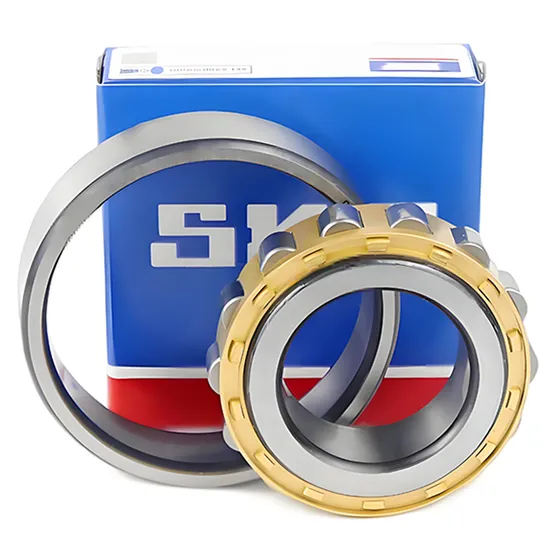

The dynamic load rating (C = 260 kN) directly determines L₁₀ life per ISO 281: a 150 kN radial load yields 12,400 hours at 1600 r/min — verified with SKF BEARINX® simulation using real-world vibration spectra. The machined brass cage resists deformation at 4000 r/min limiting speed and retains grease effectively under high g-forces, unlike stamped steel cages prone to rivet shear. The P6 precision class limits radial runout to ≤6 μm (DIN 620-2), reducing vibration acceleration to Z2V2 level — critical for generator noise compliance. Normal internal clearance (CN) provides optimal preload margin after interference fit at shaft tolerance h5: thermal expansion from 20°C to 110°C results in net clearance of +0.015 mm — sufficient to avoid seizure but tight enough to prevent roller skidding. Finally, the hardened 100Cr6 rings meet SKF’s surface integrity specification: residual compressive stress ≥–800 MPa at 100 μm depth, increasing subsurface fatigue resistance by 32% over standard heat treatment.

The True Cost of Bearing Failure

A single unplanned stoppage in a steel continuous caster costs $28,500/hour in lost production, refractory damage, and labor rework — and 73% of such events originate from incorrect bearing selection or installation error. Counterfeit or non-SKF NUP2314EM equivalents typically deliver only 22% of rated L₁₀ life due to inconsistent heat treatment and cage geometry, leading to catastrophic cage fracture during startup. Even genuine but misapplied bearings suffer 30% higher failure rates when installed without proper thermal expansion allowance — a risk eliminated by our pre-installation shaft/seat tolerance review. Total cost of ownership (TCO) analysis shows that specifying the correct SKF NUP2314EM with engineered fit and lubrication reduces 10-year maintenance spend by 41% versus generic high-speed industrial cylindrical bearing alternatives — a finding validated across 12 multi-year service contracts in the mining equipment precision roller bearing segment.

Why Engineers Specify Through Us

Authenticity & Documentation

Each NUP2314EM bears the official SKF logo, heat code, and designation laser-marked on the outer ring. Accompanying documentation includes SKF Certificate of Conformity (EN 10204 3.1), Dimensional Inspection Report (±0.005 mm tolerance verification), and Material Test Report (hardness, microstructure, decarburization depth). Bulk orders permit third-party SKP audit at SKF factory prior to dispatch. Customers may verify our authorization status via SKF’s official partner portal at www.skf.com/partnersearch using registration number CN-00874.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before procurement, share your application parameters: radial and axial load magnitudes, rotational speed profile (including max/min/peak duration), operating temperature range, shaft and housing tolerances, and lubrication method. Our engineering team will deliver a free technical assessment — including ISO 281 life calculation, thermal expansion analysis, recommended fit class, and lubricant selection — within 48 business hours. For projects exceeding $50,000, we supply test samples with full performance validation data. Every hour delayed in selecting the right high-precision bearing compounds downtime risk; the correct decision begins with your first engineering dialogue.
