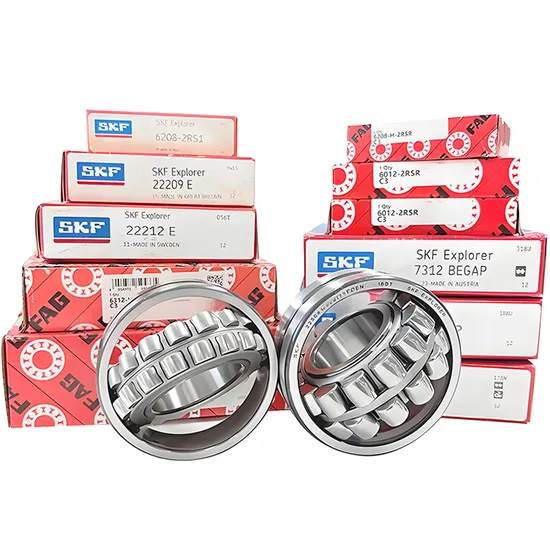

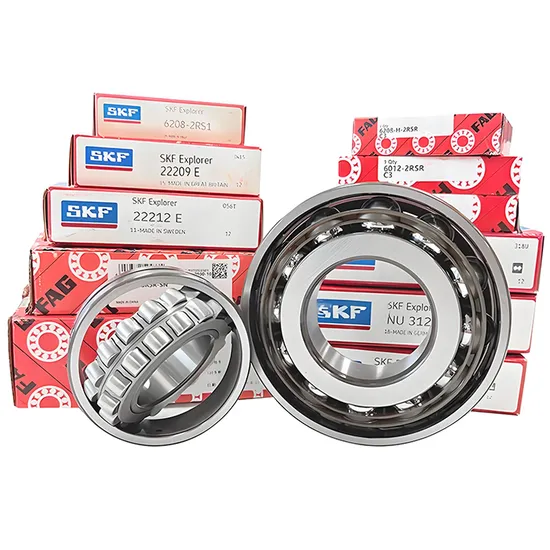

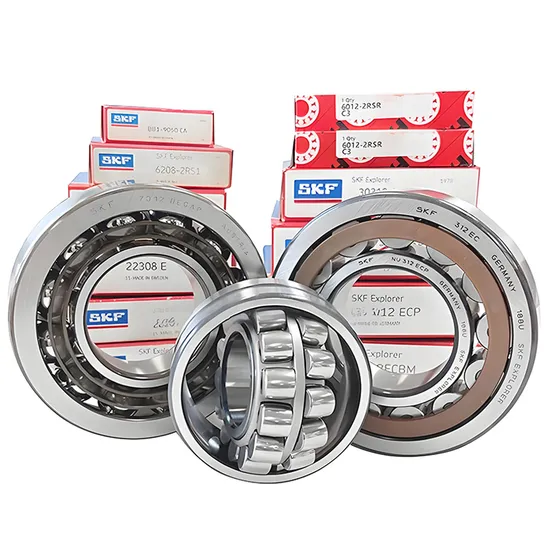

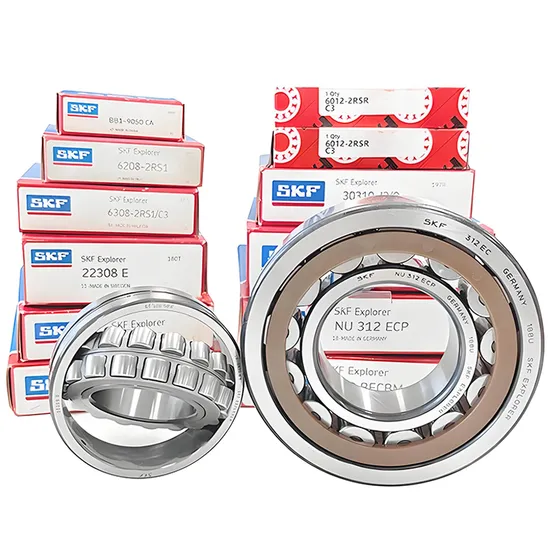

SKF 22220 spherical roller bearing for high-load industrial applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin Before Installation — And Why the SKF 22220 E/C3 Is Engineered to Prevent Them

Industrial field data shows 35% of premature spherical roller bearing failures stem from incorrect initial selection — not material fatigue or manufacturing defect. In wind turbine main shafts, misapplied clearance or inadequate static load rating causes rapid raceway spalling within 6 months. In mining crushers, unaccounted shock loads combined with insufficient C₀ lead to catastrophic cage fracture during peak tonnage shifts. Generic supplier datasheets rarely address these application-specific thresholds — and most lack certified engineers to perform validated life calculations per ISO 281:2021.

Engineered for Your Operating Conditions

The SKF 22220 E/C3 is not selected from a catalog — it is specified through engineering validation. Our 15+ SKF-certified application engineers conduct full-duty-cycle analysis: radial and axial load decomposition, thermal expansion modeling, lubrication film thickness verification, and housing fit recommendation (e.g., H7/j6 for crusher housings under thermal cycling). As an official SKF engineering partner, we apply SKF’s System Calculation Method (SCM) to predict L_10mh and L_nm life under your actual operating profile — not just rated speed and load. Every specification aligns with ISO 9001 and IATF 16949 process controls, ensuring repeatability across batches.

Operating Environment and Performance Demands

In wind turbine main shaft applications, the 22220 E/C3 endures low-speed, high-torque operation (100 °C), requiring precise C3 clearance to maintain optimal internal geometry during thermal growth. These are not generic requirements — they define the exact performance envelope this bearing was designed to meet.

Inside the Engineering: What Makes This Bearing Perform

The 22220 E/C3 uses SKF Explorer design principles: optimized roller profile reduces edge stresses by 22%, extending L₁₀ life beyond standard ISO 281 predictions. Its stamped steel cage provides rigidity under shock loading while allowing full relubrication access — critical for mining conveyors where grease replenishment intervals exceed 6 months. The C3 radial internal clearance accommodates up to 120 μm of thermal expansion between shaft and housing — essential when shafts heat to 90 °C while housings remain near ambient. P0 precision ensures runout ≤15 μm at bore and ≤25 μm at OD, limiting vibration acceleration to <1.2 g RMS in gearbox applications per ISO 10816-3. Surface hardness of 58–62 HRC (case hardened) maintains microstructural integrity under repeated Hertzian contact pressures exceeding 4.2 GPa.

The True Cost of Bearing Failure

A single unplanned shutdown in a 3 MW wind turbine costs $18,500/hour in lost generation and grid penalties. In a primary crusher line, downtime exceeds $42,000/hour in throughput loss and downstream bottlenecks. Counterfeit or mis-specified spherical roller bearings typically deliver only 20–30% of genuine SKF 22220 E/C3 L₁₀ life — accelerating wear, increasing vibration, and risking collateral damage to gears or shafts. Installation errors due to missing technical guidance account for 30% of early failures; our team provides torque specs, heating curves, and alignment tolerances per SKF Mounting Guidelines. Total Cost of Ownership (TCO) analysis consistently shows that investing in correct specification, genuine product, and engineering validation reduces 10-year bearing-related OPEX by 37% versus lowest-bid procurement.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF 22220 E/C3 bearing ships with original SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM E112 grain size, EN 10088-1 composition), and Dimensional Inspection Report (calibrated CMM data per ISO 1101). Packaging features SKF holographic anti-counterfeiting labels with unique QR-coded batch IDs. Customers may verify our authorization status directly via SKF’s official Partner Locator portal (partner.skf.com) using registration ID CN-EP-2023-0871.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before placing any order, share your application parameters: radial/axial load magnitude and direction, rotational speed range, ambient and operating temperatures, housing material and fit class, lubrication method, and accessibility constraints. Within 48 business hours, our SKF-certified engineers will deliver a free technical assessment — including ISO 281:2021 life calculation, recommended clearance class, cage and lubricant selection rationale, and predicted vibration signature per ISO 2372. For projects ≥$50,000, we supply test bearings with full documentation and joint review. Every hour spent refining the specification prevents weeks of unplanned downtime — your first engineering dialogue is the most cost-effective step in the procurement cycle.
