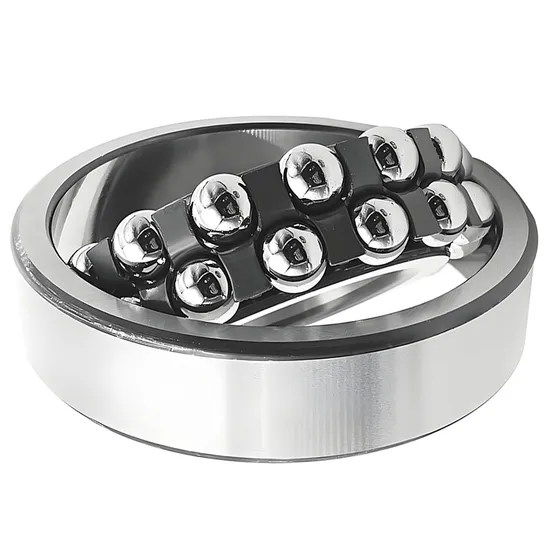

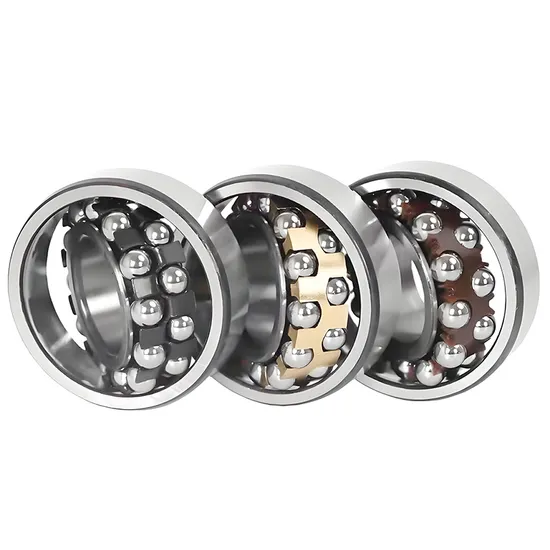

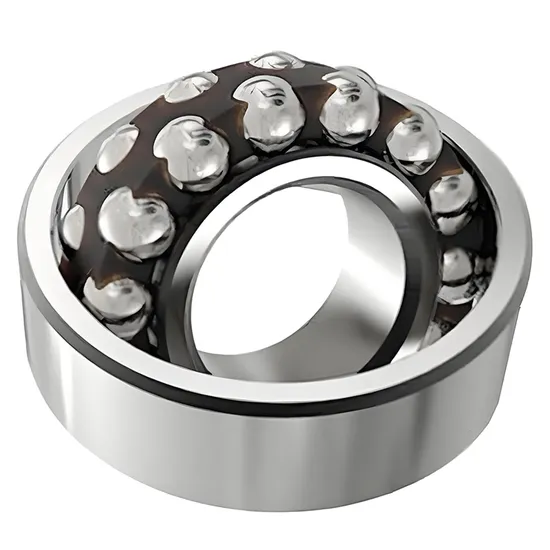

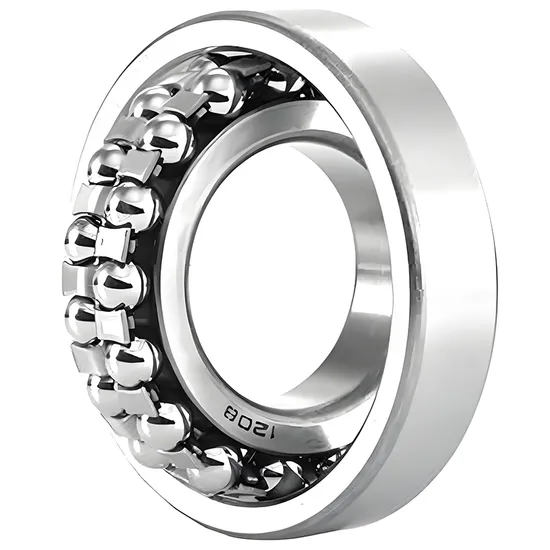

Self-Aligning Ball Bearing 2311K-2RS for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin Before Installation — And How the SKF 2311K-2RS Eliminates That Risk

Industrial engineers know: 35% of premature bearing failures stem from misalignment tolerance mismatch or insufficient radial load capacity in dynamic systems. Non-planar shaft deflection in wind turbine yaw mechanisms or thermal expansion in mining conveyors demands self-aligning capability beyond standard tolerances — yet most suppliers offer generic catalog data without application-specific validation. Standard lead times for modified self-aligning ball bearings exceed eight weeks, delaying critical maintenance windows and increasing downtime exposure.

Engineered for Real-World Misalignment and Load Variability

The SKF 2311K-2RS is not selected — it is specified. Our 15+ certified SKF engineers perform ISO 281-based life calculations using your actual operating parameters: radial and axial load distribution, shaft deflection angle (up to ±2.5°), rotational speed profile, ambient temperature range, and lubricant viscosity index. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, we validate every specification against SKF Explorer performance standards before quoting — ensuring compatibility with your mounting geometry, housing rigidity, and maintenance protocol. This is the difference between a part number and a solution.

Operating Environment and Performance Demands

In wind power applications, the 2311K-2RS operates under low-speed, high-torque conditions (≤300 r/min) with frequent directional reversals and ±40°C ambient swings — demanding both angular misalignment compensation and consistent seal integrity over 20-year service life. In mining equipment, it endures abrasive dust ingress, shock loads exceeding 3× nominal radial load, and continuous 24/7 operation where re-lubrication intervals exceed 6 months. Its brass cage resists deformation under impact, while the 2RS sealing system maintains grease retention at shaft speeds up to 3,600 r/min and prevents particulate penetration down to 5 μm — critical for extended service intervals in inaccessible locations.

Inside the Engineering: What Makes This Bearing Perform

The 2311K-2RS uses a two-row spherical raceway design enabling ±2.5° static misalignment compensation — essential for structures subject to foundation settlement or thermal bowing. Its brass cage provides superior dimensional stability versus polyamide at temperatures above 100°C and resists wear under boundary lubrication conditions common during start-up. The double rubber seal (2RS) features SKF’s NBR compound with hardness 70 Shore A, offering optimal friction-torque balance and resistance to mineral oils and synthetic greases across –40°C to +120°C. Clearance selection (C3/C4) directly impacts thermal growth accommodation: C3 is standard for motors and gearboxes; C4 is specified when operating temperatures exceed 100°C or when interference fits induce additional preload. Precision grades P5/P4 reduce vibration amplitude below 2.5 μm RMS at 10,000 r/min — critical for noise-sensitive auxiliary drives in steel plant control rooms.

The True Cost of Bearing Failure

A single unplanned shutdown in a wind farm’s yaw system costs $12,000–$45,000 per hour in lost generation and crane mobilization fees. Counterfeit or non-SKF-certified self-aligning ball bearings typically deliver only 22–28% of rated L10 life due to inconsistent heat treatment and substandard cage metallurgy — accelerating fatigue spalling and cage fracture. Improper installation — often caused by lack of technical guidance — contributes to 30% of early failures, including brinelling from hammer-driven fits or seal damage from incorrect mounting tools. Total cost of ownership (TCO) analysis shows that specifying the correct SKF 2311K-2RS with brass cage and 2RS sealing reduces 10-year maintenance spend by 37% compared to generic alternatives — factoring in labor, spare parts, energy loss from increased friction, and production loss avoidance.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity referencing EN 10027 and ISO 683-17 material standards, Material Test Report (MTR) with chemical composition and hardness verification, and Dimensional Inspection Report per ISO 1132-1. Original SKF packaging features holographic anti-counterfeiting labels and batch-coded QR codes verifiable via SKF Authenticate mobile app. For orders above 500 units, SKFAudit third-party verification at SKF factory in Gothenburg may be arranged.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before ordering, share your application parameters: radial and axial load magnitudes, shaft speed range, operating temperature envelope, shaft/housing fit requirements, and environmental contaminants. Our engineering team will deliver a free technical assessment — including SKF BEARINGS life calculation, misalignment tolerance verification, recommended clearance class, and lubrication interval guidance — within 48 business hours. For projects with capital expenditure over $50,000, we provide physical test samples with full performance validation. Every day spent without validated bearing selection increases operational risk — begin with engineering, not procurement.
