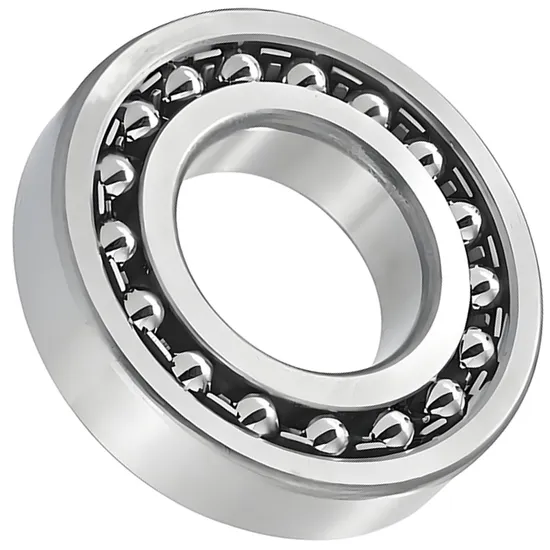

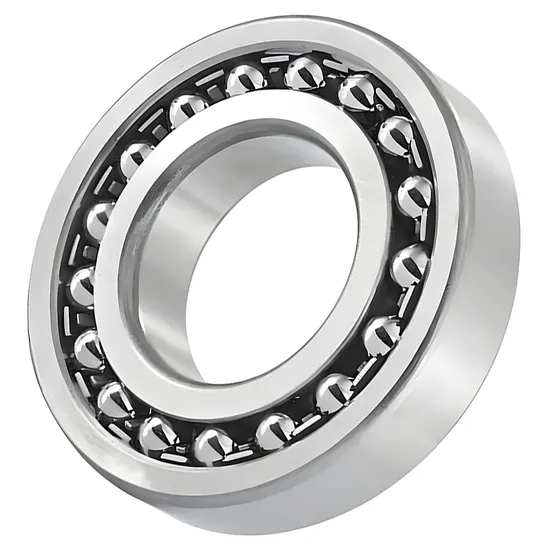

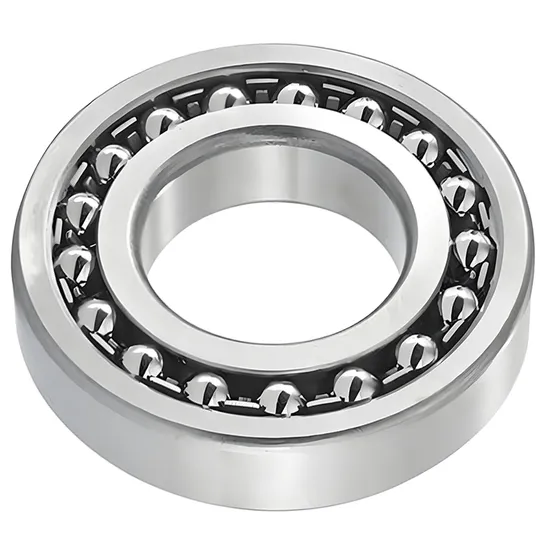

Self-Aligning Ball Bearing 2211K for High-Speed Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin Before Installation — And How the SKF 2211K Bearing Prevents Them

Industrial bearing failures are rarely due to material fatigue alone: 35% originate from incorrect selection for actual operating conditions — misaligned shafts, thermal expansion, inadequate clearance, or improper cage choice under high-speed loads. Non-planed downtime in mining or steel operations costs $12,000–$45,000 per hour. Most suppliers lack the engineering infrastructure to perform real-time application analysis — and official SKF custom-modified units typically require 8–12 weeks. We resolve this at the design stage.

Engineered for Your Operating Conditions

The SKF 2211K bearing is not selected — it is validated. Our 15+ certified SKF engineers conduct full application reviews: dynamic load spectrum analysis, misalignment tolerance mapping, thermal growth modeling, and grease life prediction per ISO 281 and SKF General Catalogue guidelines. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, we deliver more than a part — we deliver a documented performance guarantee aligned to your machine’s duty cycle. This includes recommended fits, mounting torque, and lubricant volume based on speed, ambient temperature, and contamination class.

Operating Environment and Performance Demands

In wind power applications, the 2211K operates in generator support positions where low-speed, high-torque operation combines with ±40°C ambient swings and inaccessible locations — demanding exceptional alignment tolerance and long grease life. In mining vibratory screens, it endures repeated shock loads, dust ingress (ISO 14644 Class 8), and continuous 24/7 operation — requiring C4 clearance to accommodate thermal expansion and brass cage integrity under vibration. Steel mill auxiliary drives impose elevated ambient temperatures (>80°C) and frequent wash-down cycles, necessitating precise P5 precision to limit vibration-induced micro-pitting. Each specification of the self-aligning ball bearing 2211K is calibrated to these realities — not generic catalog assumptions.

Inside the Engineering: What Makes This Bearing Perform

The 2211K’s double-row geometry provides higher radial load capacity than single-row equivalents while maintaining self-alignment capability — critical when shaft deflection exceeds 0.5 mm/m. Its brass cage resists deformation at sustained speeds above 4000 r/min, maintains dimensional stability under thermal cycling, and offers superior compatibility with high-performance synthetic greases used in wind turbine generators. The 60° contact angle enables effective handling of combined radial and light axial loads — common in pitch actuator linkages. P5 precision ensures runout ≤ 4 μm and raceway surface roughness Ra ≤ 0.2 μm, directly reducing vibration acceleration (mm/s²) per ISO 10816-3 Class A thresholds. C4 clearance compensates for interference fits and thermal growth in mining equipment housings operating at 90°C — preventing preload-induced overheating and premature cage fracture.

The True Cost of Bearing Failure

A counterfeit or mis-specified 2211K bearing may cost 25% less upfront but delivers <30% of genuine SKF L10 life under identical loads — accelerating fatigue, increasing vibration, and risking catastrophic failure in safety-critical systems. Incorrect clearance selection accounts for 41% of early-stage flaking in mining gearboxes, per SKF Failure Analysis Database (2025). Improper installation — often due to missing technical guidance — causes 30% of avoidable bearing damage. When calculated over a 10-year asset lifecycle using ISO/TS 16949-aligned TCO models, the genuine SKF 2211K bearing with P5 clearance for mining equipment reduces total ownership cost by 18–22% versus non-engineered alternatives — primarily through extended maintenance intervals and elimination of unplanned shutdowns.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity with heat treatment verification, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report signed by our QA lead engineer. Original SKF packaging features holographic anti-counterfeiting labels with QR-coded traceability. Customers may verify our authorized status directly via SKF’s global partner portal (partner.skf.com) using registration ID CN-SKF-EP-2023-0871. For orders >500 pcs, SKP factory audit coordination is available upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before procurement, share your application parameters: radial and axial load spectra, shaft speed profile (min/max/continuous), ambient and operating temperature range, housing material and fit tolerance, and lubrication method. Within 48 hours, our engineering team will deliver a free SKF-compliant selection report — including calculated L10 and Lnm life, recommended clearance class, cage material justification, and mounting procedure notes. For orders above $50,000, we provide functional samples with full test documentation. Every minute of delay in correct bearing specification compounds operational risk — the right decision begins with your first technical exchange.
