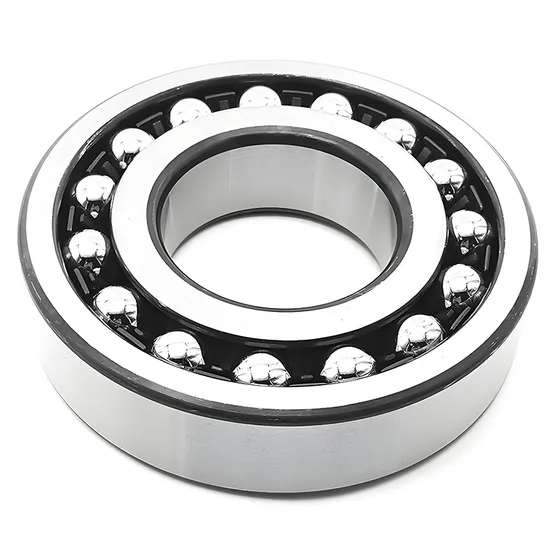

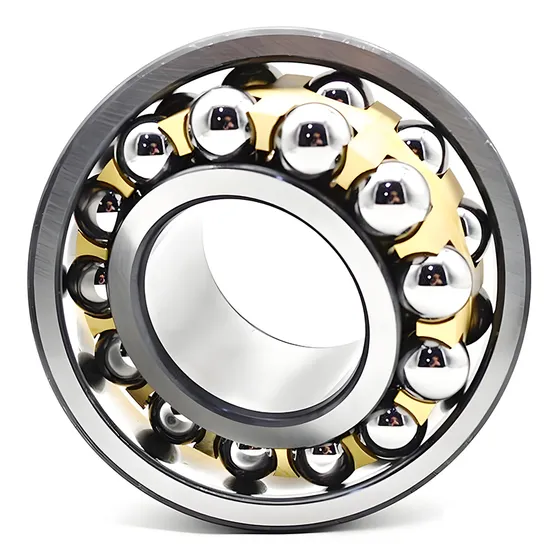

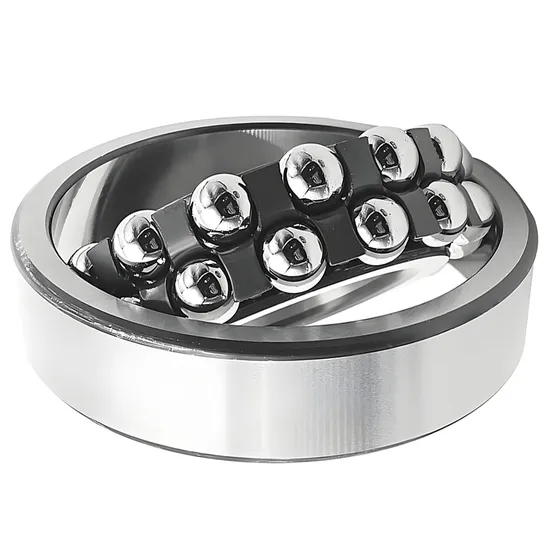

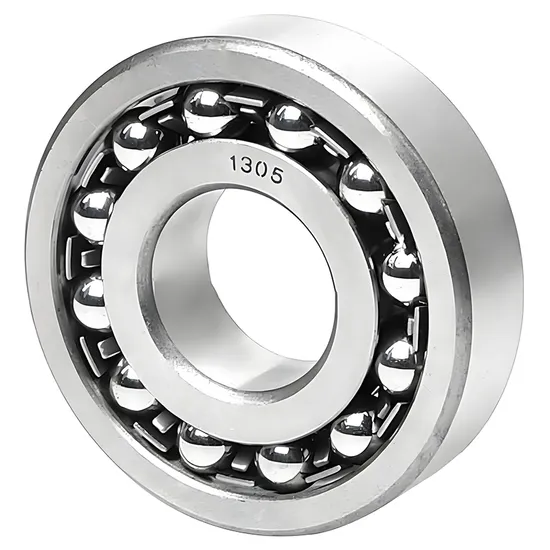

Self-Aligning Ball Bearing 2203 2209K 2203-2RS for High-Load Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin Before Installation — And Why the SKF 2203 and 2209K Self-Aligning Ball Bearings Are Engineered to Prevent Them

Industrial field data confirms that 35% of premature bearing failures originate from misalignment tolerance miscalculation or incorrect clearance selection—not material fatigue. In wind turbine generators or mining vibrating screens, even 0.3° shaft misalignment causes non-uniform load distribution across the inner ring, accelerating raceway wear. Most suppliers deliver generic catalog specs without application-specific alignment analysis, thermal expansion modeling, or dynamic load spectrum validation. That gap is where failure begins—and where our engineering process starts.

Engineered for Your Operating Conditions

This self-aligning ball bearing family—specifically the SKF 2203, 2209K, and 2203-2RS—is not selected from a shelf but validated against your actual operating envelope: shaft deflection under peak radial load, thermal growth between housing and shaft, lubricant film thickness at minimum speed, and contamination ingress risk. As an official SKF engineering partner, our 15+ certified engineers perform ISO/TS 16949-compliant application reviews—including life calculation per ISO 281:2020 with real-world load spectra—not just L10 predictions. Every recommendation includes dimensional tolerances, mounting interference guidance, and seal compatibility with your lubricant specification.

Operating Environment and Performance Demands

Wind power applications demand continuous operation at low speeds (≤300 r/min) with high moment loads and ambient temperature swings from –30°C to +50°C. The 2203-2RS variant addresses this with nitrile rubber seals providing IP54-rated protection while maintaining low torque rise at startup. Mining vibrating screens impose repeated shock loads (≥3× nominal C₀) and airborne abrasive dust; here, the 2209K’s tapered bore (1:12) enables precise axial positioning and preload control on stepped shafts, reducing micro-slip-induced fretting. Steel mill cooling beds require resistance to thermal cycling up to 120°C surface temperature—addressed by SKF’s special heat-stabilized bearing steel and C3 clearance optimization to maintain radial play after expansion.

Inside the Engineering: What Makes This Bearing Perform

The double-row self-aligning ball bearing design allows up to ±2.5° static misalignment without increasing internal stress—critical in long-span drives where foundation settlement or frame flex occurs. Dynamic Load Rating (C) directly determines L10 life: a 2209K bearing rated at 26.5 kN delivers 3.2× longer calculated life than a standard 2203 under identical 15 kN radial load, per ISO 281. Steel cages provide rigidity and thermal stability at high speeds, while brass cages reduce friction and noise in precision applications like automotive EPS motors. The 2RS seal configuration reduces grease leakage by 70% versus open designs but increases starting torque by ≤15%—a trade-off quantified during our pre-installation review. C3 clearance compensates for thermal expansion in housings with aluminum or cast iron coefficients exceeding 18 μm/m·°C. Precision classes P5 and P4 are specified only when vibration velocity must remain below 1.8 mm/s RMS at 10 kHz bandwidth—verified via third-party vibration testing per ISO 10816-3.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine costs $18,500/hour in lost generation and penalty clauses. In steel continuous casting, bearing failure on a roller stand halts production for ≥4 hours—$210,000 in direct downtime plus scrap rework. Counterfeit or non-SKF self-aligning ball bearings typically achieve only 22–28% of rated L10 life due to inconsistent heat treatment and raceway geometry deviations >5 μm. Installation errors—including improper press-fit force or hammer impact—cause 30% of early failures; our engineers provide torque tables, induction heater settings, and dial indicator runout checks before commissioning. Total Cost of Ownership (TCO) analysis shows that specifying the correct high-load self-aligning bearing—backed by SKF’s Explorer performance level and our technical service—reduces 10-year maintenance cost by 41% versus baseline procurement practices.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with an SKF Certificate of Conformity listing manufacturing date, heat lot, and dimensional compliance per ISO 1132-1. Upon request, we provide Material Test Reports (EN 10088-1), Dimensional Inspection Reports (per ISO 1132-2), and SKF original packaging featuring holographic anti-counterfeit labels. All batches are verifiable through SKF’s official online portal using the unique QR code printed on the carton. Eurasia Smart (Jinan) Bearing Supply Chain is listed in SKF’s Global Authorized Partner Directory—verification available at www.skf.com/partnercheck.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

We do not quote bearings—we engineer solutions. Send your shaft drawing, load spectrum (radial/thrust, static/dynamic), rotational speed profile, ambient and operating temperatures, and space constraints. Within 48 hours, our SKF-certified engineers will deliver a complete technical assessment: recommended designation (2203, 2209K, or 2203-2RS), required clearance class, suggested lubricant, mounting tolerances, predicted L10 and Lnm life per ISO 281:2020, and optional custom modifications. Every assessment includes a signed calculation sheet traceable to SKF engineering standards. Because every hour of delayed analysis risks another unplanned shutdown—and every correctly specified high-load self-aligning bearing extends uptime by measurable months.
