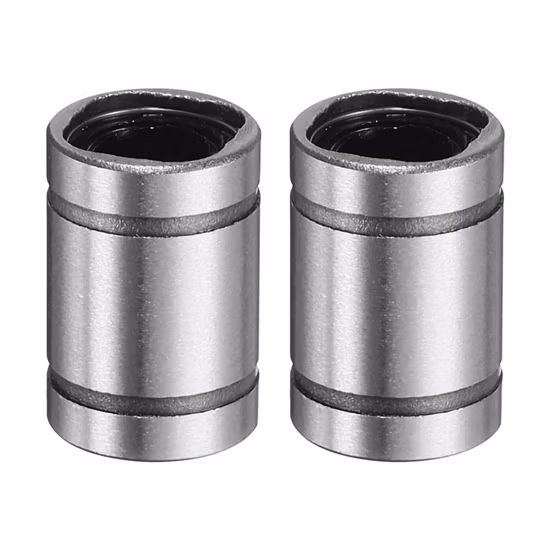

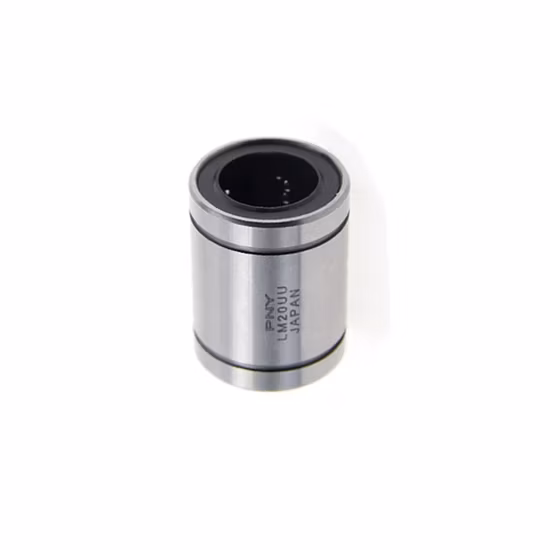

LM20UU LM25UU LM30UU LM35UU High Speed Linear Bearing Wholesale

Authenticated via official apps — Every LM20UU linear bearing we dispatch includes a scannable QR code linked directly to the manufacturer's verification database.

Technical Specifications

Application Suitability

Why Soft Inner Rings Destroy Automation Uptime

Counterfeit components with inadequate core hardness cause rapid raceway spalling under continuous reciprocating loads.

In the Shenzhen automation sector, we frequently see production lines halted because procurement teams sourced visually identical but metallurgically inferior replacements. These fake parts often pass casual inspections but fail catastrophically when subjected to high-frequency cycling. The resulting unplanned downtime and secondary damage to the linear shafts far exceed the initial savings . Securing a genuine LM20UU linear bearing with verified metallurgical properties is the only way to protect your equipment's operational continuity.

Matching Linear Motion Components to Dynamic Loads

Selecting the right LM20UU linear bearing requires aligning the precision class and cage material with the specific dynamic demands of the machinery. Our engineering team reviews the application's load profile and speed requirements to ensure the chosen configuration delivers optimal performance without premature wear.

Overcoming High-Frequency Reciprocation Challenges

High-speed automation equipment generates significant friction heat and exposes moving parts to airborne particulates. An open shape design facilitates direct lubrication access, which is vital for flushing out contaminants and maintaining a stable hydrodynamic film. When operating at elevated speeds, the thermal expansion of the shaft must be accommodated to prevent binding, making the correct internal clearance and low-friction nylon cage essential for sustained operation .

Decoding the LM20UU Designation and Precision Tiers

The LM series designation indicates a standard metric linear motion profile, while the UU suffix typically denotes integrated sealing mechanisms designed to retain lubricant and exclude debris. Because specific suffix definitions can vary slightly between manufacturers, we always verify the exact internal geometry against the OEM catalog. The availability of multiple precision classes, from standard P0 up to ultra-precise P2, allows buyers to match the component's running accuracy to the strict tolerances required by CNC spindles or optical inspection machines.

The Hidden Costs of Ignoring Suffix Alignment

Substituting a standard clearance unit where a specific preloaded or adjusted variant is required often leads to immediate thermal binding or excessive play. Such mismatched installations result in catastrophic damage to the mating linear shafts and void equipment warranties. Adhering to strict cross-referencing protocols prevents these costly engineering oversights and ensures the linear motion system operates within its designed fatigue life parameters .

Securing Authentic Motion Control Components

We eliminate the risk of counterfeit infiltration by providing full batch traceability for every LM20UU linear bearing we supply. Our cross-brand interchange service strictly aligns the shape, flange geometry, and precision suffixes, rather than just matching the base number. This meticulous technical review ensures that alternative brands perform identically to the original specification, protecting your machinery from the hidden flaws of unverified supply chains.

Documentation & Authenticity

• Certificate of Conformity confirming the exact LM series metric dimensions.
• Batch traceability documents linking the UU sealed unit to the original factory run.
• Official brand app QR codes for immediate on-site authenticity verification.
• Material test reports validating the bearing steel hardness and structural integrity.
• Dimensional inspection reports verifying the selected P-class running accuracy.
• Country-of-origin documentation for seamless customs and compliance clearance.

Storage, Handling & Mounting

• Keep the open shape units in original packaging to prevent dust ingress before installation.
• Wear clean lint-free gloves to avoid transferring corrosive skin oils to the bearing steel surface.
• Verify the circular flange mounting hole alignment before applying tightening torque.
• Apply the specified grease directly to the raceways since the UU seals prevent external lubrication penetration.
• Store P4 and P2 precision grades in climate-controlled environments to prevent thermal distortion.
• Avoid using carbon steel tools on stainless steel variant options to prevent cross-contamination.

Engineering Support for Linear Motion Upgrades

To ensure optimal performance, please provide your equipment's specific radial and axial load profiles, operating speeds, and ambient temperature ranges. Our technical team will use these parameters to conduct a thorough L10 life calculation and verify the suitability of the chosen precision class. If you are replacing an existing component, sharing the OEM equipment number allows us to perform a precise cross-reference check to guarantee dimensional and functional compatibility.

Frequently Asked Questions

Q: How do I determine the correct LM series size for my linear shaft?
A: The selection depends on the shaft diameter, the required load capacity, and the available installation space. You must calculate the dynamic load rating based on your specific travel speed and stroke length. Our engineering team can review your machine's load diagrams and recommend the precise metric dimension and flange configuration to ensure structural rigidity and prevent premature fatigue.

Q: What internal parameters must align when cross-referencing linear bearings?
A: Beyond the basic outer diameter and length, you must strictly align the internal ball circuit geometry, the cage material, and the specific sealing suffixes. A mismatch in the internal design can lead to excessive friction or inadequate load distribution. We verify these detailed specifications against the manufacturer's technical drawings to ensure the replacement unit behaves identically under load.

Q: When should I choose a nylon cage over a metal retainer?
A: Nylon retainers are generally preferred for high-speed applications due to their lower weight, reduced friction, and excellent noise-dampening properties. They also provide better emergency running characteristics if lubrication is temporarily lost. However, if the operating environment involves elevated temperatures beyond the polymer's thermal limits or exposure to aggressive chemical solvents, a metal cage alternative must be considered.

Q: How does an open shape design affect installation and maintenance?
A: An open shape allows for direct access to the internal ball circuits, making it easier to apply fresh lubrication and flush out contaminants during routine maintenance. It also permits slight clearance adjustments if the housing is designed with an adjustable gap. However, this design requires a cleaner operating environment or robust external bellows to prevent abrasive particles from entering the load-bearing zones.

Q: How do you handle cross-brand substitutions when the original part is obsolete?
A: We utilize authorized distribution channels to source equivalent units from other premium manufacturers, ensuring the substitute matches the original in load capacity, precision class, and dimensional tolerances. Our technical team reviews the application parameters to confirm that the alternative brand's internal geometry and material specifications will not compromise the machine's performance or operational lifespan.
