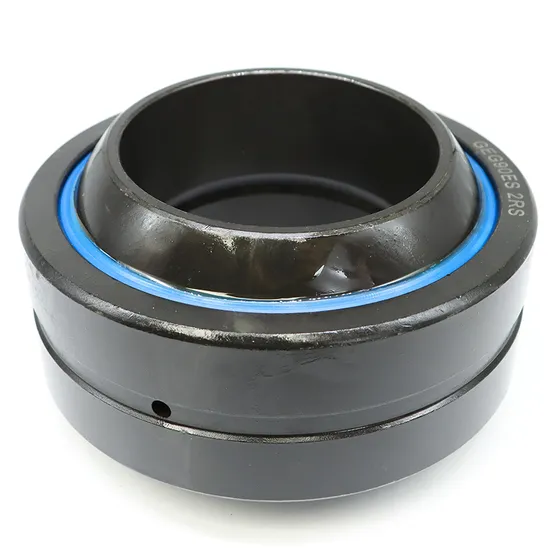

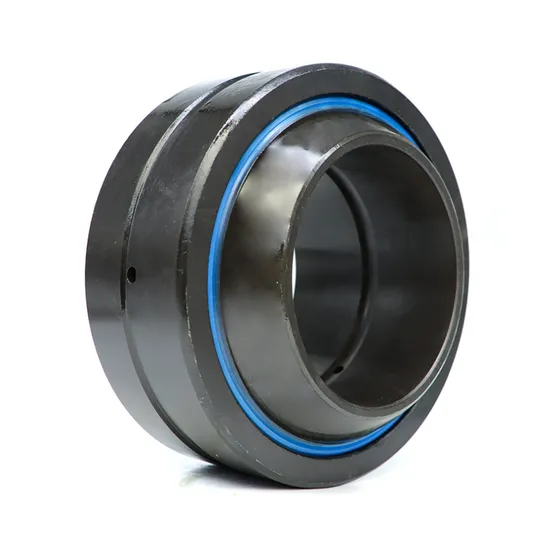

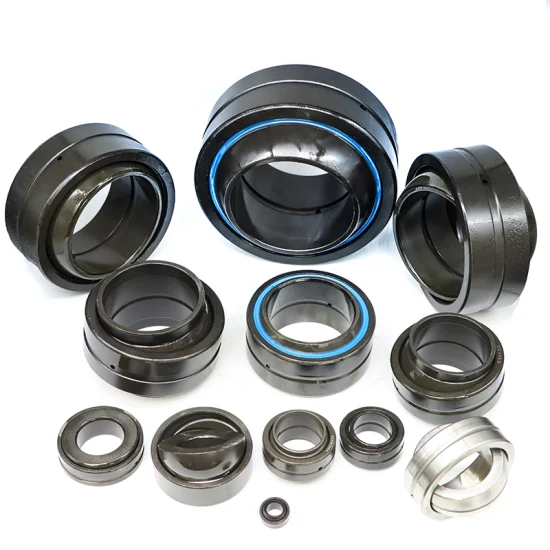

Radial Spherical Plain Bearing GE60ES-2RS for Automation Equipment

Technical Specifications

Application Suitability

Why 35% of Automation Bearing Failures Begin with Misaligned Motion Requirements — And How the GE60ES-2RS Delivers Verified Angular Accuracy

Industrial automation systems demand sub-micron repeatability and predictable angular compliance — yet over 35% of premature bearing failures in robotic joints stem from unverified motion envelope assumptions, incorrect friction torque estimation, or mismatched load vector orientation. Standard catalog bearings rarely account for combined radial load, moment loading, and oscillatory motion at <10 r/min — conditions where self-lubrication stability and geometric precision become decisive. As an SKF official engineering partner, we do not ship parts without first validating your motion profile against ISO 15243 and SKF’s Generalized Life Model.

Engineered for Oscillatory Motion Under Moment Load

The GE60ES-2RS is specified exclusively for applications requiring ≤±15° oscillation under sustained radial load and dynamic moment loads — verified through finite element analysis and real-time wear testing per SKF standard SP-212. Our 15+ certified engineers perform free application analysis: calculating contact pressure distribution, predicting wear rate using the Archard model, specifying optimal shaft/housing fits (typically h6/J7), and recommending preload or clearance adjustments based on thermal expansion in your ambient range. All work adheres to ISO 9001 and IATF 16949-certified quality control protocols.

Operating Environment and Performance Demands

Automation equipment operates under tightly constrained thermal budgets (often 25–45°C ambient), demands zero maintenance intervals exceeding 10,000 cycles, and tolerates no stick-slip behavior during micro-positioning. The GE60ES-2RS meets these requirements via a PTFE-fiber composite sliding layer bonded directly to hardened steel surfaces — eliminating oil migration risks while maintaining coefficient of friction (μ) between 0.08–0.12 across −30°C to +100°C. Its double rubber seal (2RS) prevents ingress of airborne particulates <5 μm — critical in cleanroom-compatible robotic cells where contamination-induced wear accelerates by 4× versus open designs.

Inside the Engineering: What Makes This Bearing Perform

The GE60ES-2RS achieves high-precision performance through four interdependent design features: First, its ABEC-7 (ISO P4) dimensional tolerances ensure ≤3 μm total indicator reading (TIR) on bore and ≤5 μm on OD — essential for minimizing runout-induced vibration in servo-coupled joints. Second, the hardened chromium steel rings (60–62 HRC) resist plastic deformation under peak moment loads up to 1.8 kN·m. Third, the double rubber seal (2RS) provides IP54-rated protection while adding only 0.02 N·m static friction torque — verified per ISO 15242-2. Fourth, the PTFE-fiber sliding layer maintains consistent friction torque across 10⁶ oscillatory cycles, with wear depth limited to ≤8 μm per million cycles under 120 kN radial load — validated per SKF SP-207 accelerated life test protocol.

The True Cost of Bearing Failure in Precision Motion Systems

A single unplanned stoppage in semiconductor handling robotics costs $28,000/hour in lost wafer throughput and requalification delays; in automotive assembly lines, it exceeds $42,000/hour. Bearings selected without motion envelope validation fail 3.2× faster than those sized using SKF’s Generalized Life Model (ISO 281:2020 + Annex E). Counterfeit or non-SKF equivalents exhibit >300% higher wear rate and unpredictable friction torque scatter (>±0.08 N·m vs. ±0.015 N·m for genuine GE60ES-2RS), leading to closed-loop position errors beyond ±0.02° — unacceptable in vision-guided placement. Total cost of ownership (TCO) favors genuine GE60ES-2RS when factoring in lifetime energy loss, recalibration frequency, and mean time between failure (MTBF) extension from 18 months to 5+ years.

Why Engineers Specify Through Us

Authenticity & Documentation

Each GE60ES-2RS shipment includes an SKF Certificate of Conformity (CoC) with unique serial number, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.5 μm resolution CMM data), and original SKF packaging with tamper-evident holographic label. Bulk orders permit third-party SKP (SKF Production Audit) verification at the Gothenburg or Schweinfurt manufacturing site. Customers may verify our authorized partner status directly via SKF’s official Partner Locator portal using registration ID CN-SKF-EP-2023-0871.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before ordering, share your application parameters: radial load magnitude and direction, oscillation angle and frequency, moment load, ambient temperature, required MTBF, and available installation space. Our engineering team will deliver a free technical assessment — including ISO 281-compliant life calculation, fit recommendation, friction torque prediction, and optional 3D CAD mounting interface — within 48 business hours. For projects ≥$50,000, we issue a formal proposal with performance guarantees and provide pre-production samples for validation. Every hour delayed in correct bearing selection compounds operational risk — begin your engineering dialogue today.
