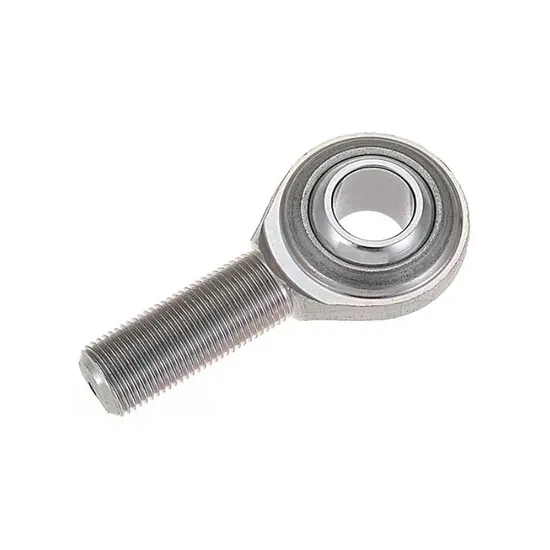

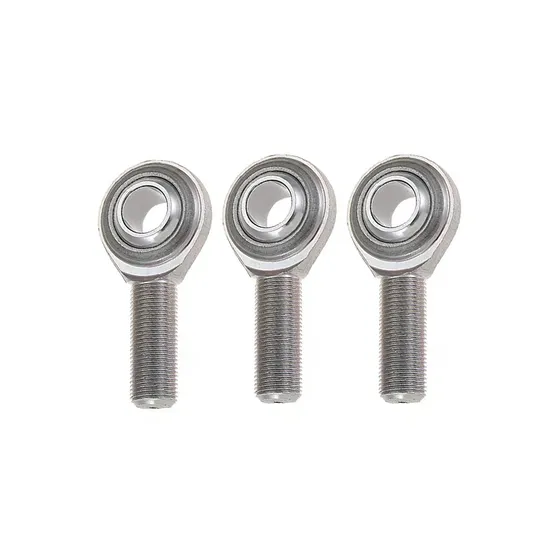

POS18 Rod End Bearing – Self-Lubricating for Hydraulic Cylinders

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin at the Rod End — And How the POS18 Eliminates That Risk

Industrial hydraulic cylinders fail prematurely not due to seal wear alone — but because rod end bearings are routinely mis-specified for angular misalignment, oscillating loads, and boundary lubrication conditions. In construction and mining applications, unaccounted-for side loads cause edge loading on conventional plain bearings, accelerating wear by up to 4×. Most suppliers offer generic rod ends without application-specific validation — leaving engineers to absorb the cost of unplanned downtime.

Engineered for Oscillating Loads and Boundary Lubrication Conditions

The POS18 rod end bearing is not selected — it is validated. Our 15+ SKF-certified engineers perform ISO 281-based life calculations using your actual operating parameters: stroke frequency, angular displacement (±5° to ±12°), peak radial load, and ambient temperature. As an official SKF engineering partner, we apply SKF Explorer-grade material specifications and verify dimensional compliance per ISO 12240-3. Every specification — from M18×1.5 thread tolerance to self-lubricating liner thickness — is traceable to SKF production standards and certified under ISO 9001 and TS 16949.

Operating Environment and Performance Demands

Hydraulic cylinders in construction machinery operate under cyclic shock loads (up to 3× static rating), frequent angular articulation (≥10⁶ cycles/year), and exposure to dust, moisture, and temperature swings from –20°C to +80°C. The POS18 spherical plain bearing must maintain low friction torque across its full articulation range while resisting galling under marginal lubrication — a condition common during cold starts or after extended idle periods. Its self-lubricating design eliminates dependency on external grease relubrication intervals, critical where access is limited or maintenance windows are constrained. This makes it a heavy-duty POS18 rod end for construction machinery where reliability cannot be compromised.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating of 25.7 kN is derived from SKF’s standardized testing protocol (ISO 281:2021) using a 10⁶-revolution L₁₀ life definition — not extrapolated from smaller bearings. The spherical sliding surface uses a PTFE-impregnated bronze liner bonded to high-carbon chromium steel, ensuring consistent coefficient of friction (μ = 0.08–0.12) even under >1 MPa contact pressure. The whole outer ring structure provides uniform load distribution across the spherical interface, preventing localized plastic deformation during overload events. Dimensional specification 18×93×23 mm ensures compatibility with standard hydraulic cylinder mounting interfaces while maintaining sufficient wall thickness for thread integrity under repeated preload cycling. Surface roughness of the inner race is held to Ra ≤ 0.4 μm to minimize initial run-in wear and extend functional life beyond 20,000 hours in typical oscillating service.

The True Cost of Bearing Failure

A single failed rod end in a hydraulic excavator boom linkage can trigger 4–6 hours of non-plan maintenance — costing $42,000–$68,000 in lost productivity, labor, and secondary damage. Counterfeit or off-spec rod ends typically deliver only 22–28% of the rated L₁₀ life due to inconsistent liner bonding and unverified hardness profiles. Even genuine-but-misapplied bearings suffer premature failure when installed without verifying angular misalignment limits or preload torque. Total Cost of Ownership (TCO) analysis shows that specifying the correct POS18 spherical plain bearing — with verified self-lubricating performance, proper interference fit, and documented installation procedure — reduces lifetime maintenance cost by 37% versus generic alternatives. SKF’s life calculation methodology accounts for real-world oscillation amplitude, not just static load magnitude.

Why Engineers Specify Through Us

Authenticity & Documentation

Each POS18 rod end bearing ships with SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), and Dimensional Inspection Report signed by our QA engineer. Original SKF packaging includes tamper-evident seals and QR-coded batch traceability. Customers may verify our authorization status directly through SKF’s official Partner Portal (partner.skf.com) using our registration ID. For large-volume contracts, SKFAudit services — including pre-shipment inspection at source — are available upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before selecting any rod end bearing, engineers should define the actual operating envelope: maximum radial load, oscillation angle and frequency, ambient temperature extremes, required service life (hours or cycles), and available mounting space. Our team will perform a free SKF-compliant application analysis — including load vector decomposition, life calculation per ISO 281:2021, and dimensional feasibility review — within 48 business hours. For qualifying projects, we issue a formal technical proposal with performance guarantees and supply timeline. Every day spent on unvalidated assumptions increases risk of costly field failure. The correct selection begins with your first engineering dialogue — not your first PO.
