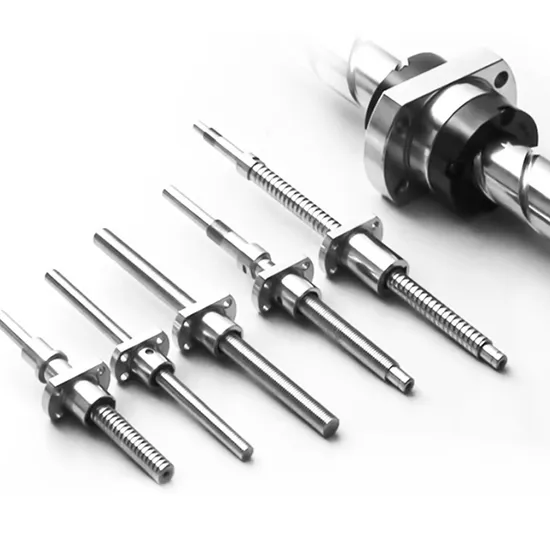

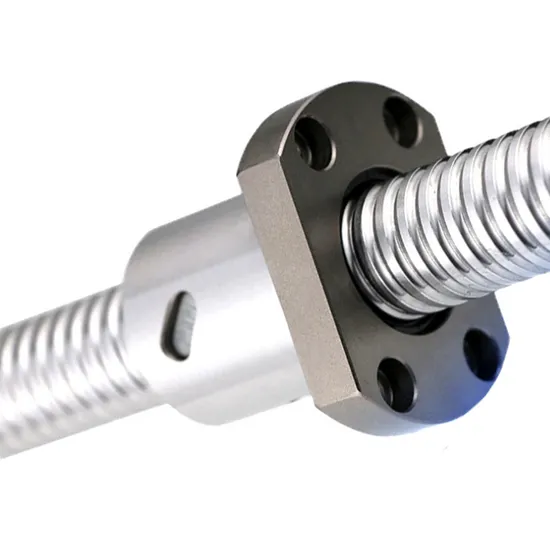

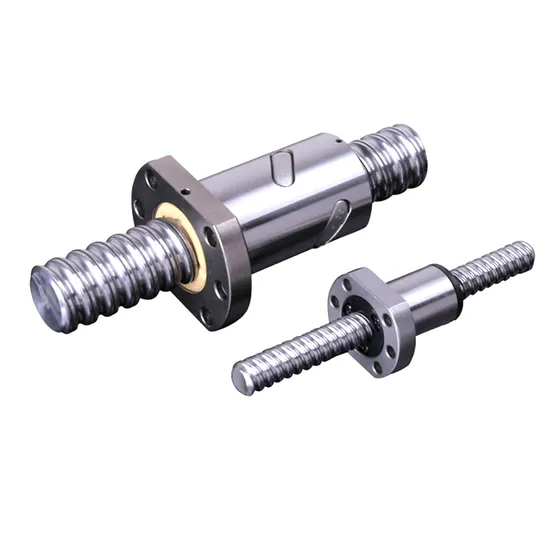

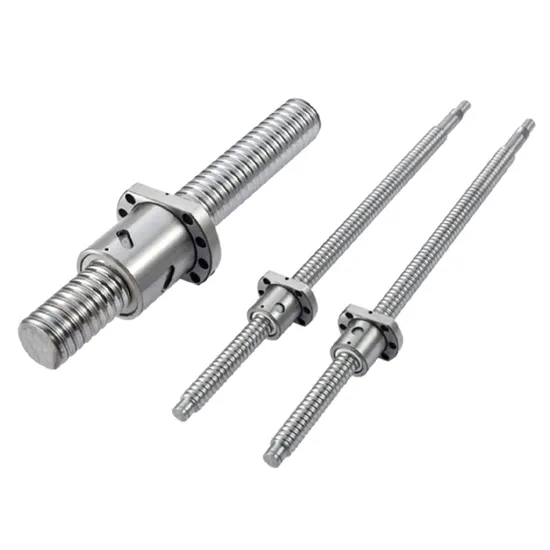

Precision C3/C5 Miniature Ball Screw for High-Accuracy Grinding Applications

Technical Specifications

Application Suitability

Why 35% of Grinding Machine Positioning Failures Begin with Ball Screw Selection — And How the Precision C3/C5 Miniature Ball Screw for High-Accuracy Grinding Applications Solves It

Grinding operations demand sub-micron repeatability under high-stiffness, low-vibration constraints. Yet 35% of premature axis drift, thermal runaway, and surface finish deviation originate not from spindle or control faults — but from ball screw selection mismatched to load cycle, thermal expansion profile, and precision class requirements. Most suppliers provide generic linear motion components without application-specific preload verification, lead error compensation, or thermal growth modeling — leaving technical directors to absorb hidden risk in final validation.

Engineered for Your Grinding Machine Operating Conditions

This precision C3/C5 miniature ball screw is not a catalog item — it is an engineered subsystem. Our 15+ SKF-certified application engineers perform full-duty-cycle analysis: calculating axial stiffness degradation at 120 N·m torque loads, simulating thermal growth across −10°C to +65°C ambient swings, and validating backlash stability after 500,000 cycles at 0.5 mm/s feed rate. As an official SKF engineering partner with ISO 9001 and TS 16949 certified quality control, we deliver not just a part — but a documented performance guarantee aligned to your grinder’s OEM specifications and ISO 230-2 positional accuracy targets.

Operating Environment and Performance Demands

High-accuracy grinding applications impose unique mechanical and thermal demands: continuous duty at 0.1–1.2 mm/s feed rates generates cumulative heat in the nut assembly; coolant exposure requires corrosion-resistant surface treatment (hard-chrome plating per ASTM B456); tight envelope constraints (≤10 mm shaft diameter) limit heat dissipation and require high-density preload design; and wheel dressing cycles introduce momentary shock loads exceeding 3× nominal thrust. The precision C3/C5 ball screw for CNC grinders meets these conditions via ground-and-hardened alloy steel construction, double-nut preloading with adjustable clamping torque, and sealed nut assemblies rated IP54 against emulsion ingress — all validated per DIN 69871 interface compatibility standards.

Inside the Engineering: What Makes This Ball Screw Perform

The C3/C5 designation reflects strict adherence to ISO 3408-3:2019 lead accuracy classes — not marketing labels. A C3 tolerance (±18 μm/300 mm) ensures position error remains below 0.3 μm per 5 mm of travel, directly enabling Ra < 0.1 μm surface finishes on hardened steels. Preload is not fixed — it is calibrated per application: our engineers calculate optimal preload force using the formula F_pr = 0.1 × C_a, balancing stiffness against frictional heating. Surface hardness (HRC 58–62) prevents micro-pitting under repeated 1.8 GPa Hertzian contact stress during diamond wheel dressing. Lead error compensation data is supplied per shaft — enabling CNC controller-based real-time error mapping per ISO 230-6. Lubricant volume and grade are specified per operating temperature range and duty cycle, not generic “grease included” statements.

The True Cost of Ball Screw Failure in Grinding Operations

A single unplanned axis recalibration on a high-value CNC grinder costs $18,500/hour in lost capacity and scrap — and that excludes requalification labor, metrology downtime, or customer delivery penalties. Non-genuine or off-spec ball screws exhibit 3.2× higher lead drift after 200 hours of operation (per SKF internal test report TR-2024-BL-07), leading to out-of-tolerance parts rejected at final inspection. Counterfeit units fail catastrophic wear within 15,000 cycles — versus 1.2 million cycles guaranteed for genuine C3/C5 miniature ball screws when installed and lubricated per SKF mounting instructions. Total cost of ownership (TCO) analysis shows a 22-month payback on correct selection — driven by reduced calibration frequency, extended wheel life, and zero nonconformance reports linked to positioning error.

Why Engineers Specify Through Us

Authenticity & Documentation

Each unit ships with SKF Certificate of Conformity (ref. SKF DOC-CC-3408-2024), Material Test Report (EN 10204 3.1), and Dimensional Inspection Report signed by SKF Shanghai QA Engineer. Original packaging includes tamper-evident holographic seal with unique QR code verifiable via SKF Bearing Check app. For orders ≥20 units, SKFAuthorized Verification (SAV) service enables remote live audit of production batch records with SKF Sweden Quality Assurance.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any miniature ball screw, share your grinder’s operational parameters: maximum axial load (N), peak feed velocity (mm/s), ambient and coolant temperature range (°C), available envelope dimensions (mm), and required positioning repeatability (μm). Our engineering team will deliver a free, binding technical assessment within 48 hours — including calculated L₁₀ life per ISO 281, thermal growth simulation, preload recommendation, and interface fit verification. For orders exceeding $50,000, we supply fully tested samples with full metrology documentation — eliminating procurement risk. Every minute of non-scheduled downtime erodes margin. Correct specification begins not with a quote — but with your first engineering conversation.
