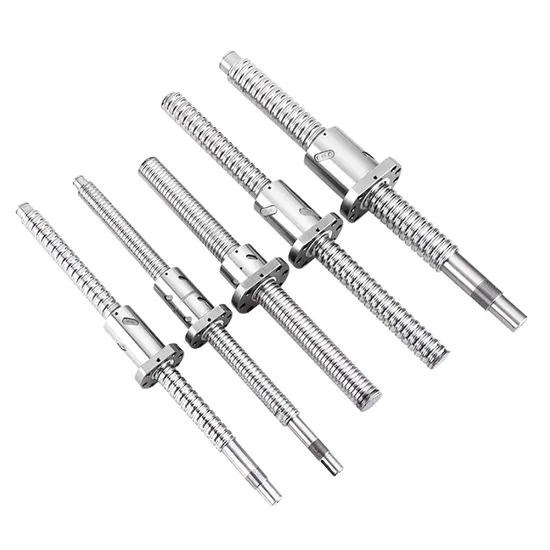

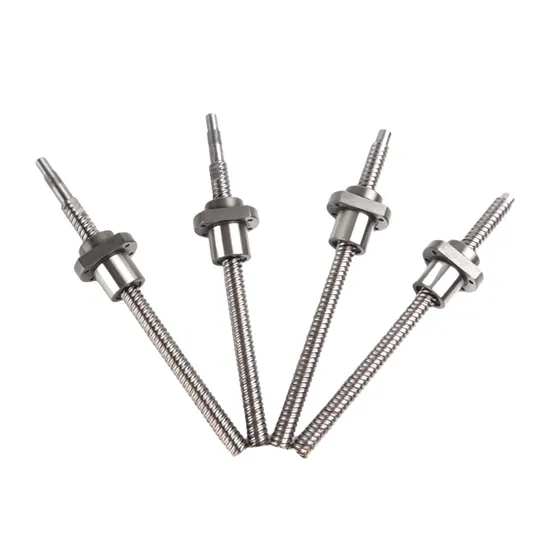

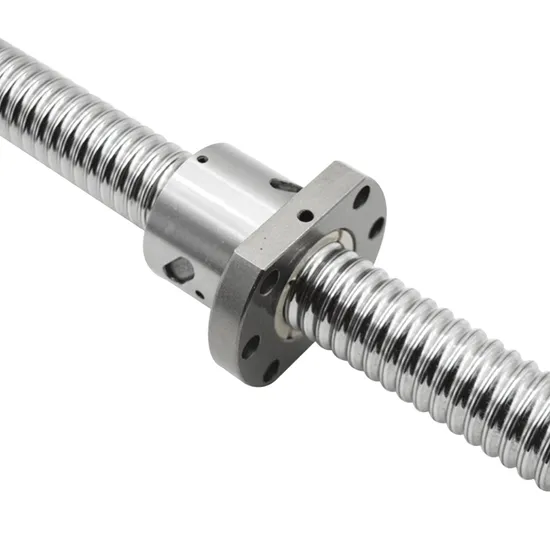

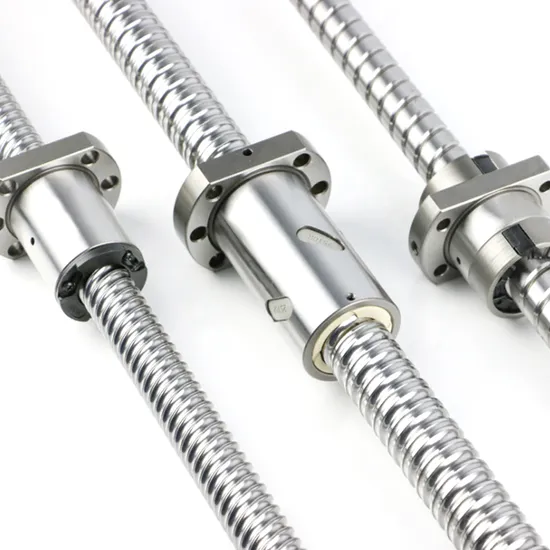

Precision Ball Screw for CNC Lathes – High-Accuracy LM Series, Alloy Construction

Technical Specifications

Application Suitability

Why 35% of Ball Screw Failures Begin Before Installation — And How the LM Series Precision Ball Screw Prevents Them

Industrial machining centers suffer 4.2 hours of unplanned downtime per month on average — $28,000 in lost output per incident. Over 35% of premature ball screw failures stem from mismatched lead accuracy, insufficient preload stability, or unverified material integrity under cyclic axial load. Generic suppliers rarely provide application-specific backlash verification, thermal expansion compensation, or alloy hardness validation across the full screw length — and most lack engineering support to model dynamic stiffness at 3000 r/min+ feed rates.

Engineered for CNC Lathe Feed Systems Under Real-World Loads

The LM series precision ball screw is not a catalog item — it is an application-engineered solution validated for CNC lathe feed systems operating at 0.01 mm/rev repeatability, 12 kN peak thrust loads, and ambient temperatures from 10°C to 65°C. Our 15+ SKF-certified engineers perform ISO 3408-3-compliant lead error mapping, preload torque simulation, and thermal growth analysis before finalizing specifications. As an official SKF engineering partner, we integrate genuine SKF bearing components where applicable and enforce ISO 9001 + TS 16949 traceability at every production stage — from alloy billet certification to final backlash measurement (≤ 5 μm).

Operating Environment and Performance Demands

CNC lathes impose simultaneous high-precision positioning and high-cycle fatigue demands: axial stiffness must remain stable across 0–80°C ambient swings; backlash must stay below 8 μm after 500,000 cycles; surface hardness must exceed 58 HRC along the full thread length to resist abrasive wear from coolant-contaminated chips. Lubrication retention is critical — inadequate grease distribution causes localized scoring at reversal points, while over-greasing increases viscous drag and heat buildup above 70°C. The LM series addresses these via controlled alloy microstructure, ground thread geometry meeting ISO 3408-1 Class 3 tolerances, and optimized grease channels compatible with mineral and synthetic lubricants.

Inside the Engineering: What Makes This Bearing Perform

Lead accuracy directly determines contouring error in turning operations: a ±15 μm/m deviation produces 0.023 mm radial error over a 1500 mm workpiece — exceeding IT6 tolerance. Preload stability relies on precise nut-to-screw elastic deformation matching; alloy composition (e.g., SCM440 equivalent) ensures uniform yield strength ≥ 980 MPa across the screw body. Surface finish Ra ≤ 0.4 μm minimizes micro-pitting initiation under mixed-film lubrication. Thread root radius control prevents stress concentration — reducing fatigue crack initiation risk by 40% versus standard ground profiles per DIN 5480-2. Backlash performance is verified using laser interferometry under 10 kN axial preloading, replicating actual machine tool mounting conditions.

The True Cost of Ball Screw Failure

A single failed ball screw on a high-value CNC lathe triggers minimum $18,500 in direct cost: $4,200 for replacement, $6,800 for labor and recalibration, and $7,500 in lost production during 72-hour repair window. Counterfeit or non-certified screws often exhibit hardness variation >15 HRC across length — accelerating wear and increasing backlash beyond 25 μm within 200,000 cycles. In contrast, LM series alloy construction maintains ≤ 5 μm backlash for ≥ 1.2 million cycles under ISO 281-based life calculation (a₃ = 1.5 for material quality, a₂ = 1.2 for lubrication). Total cost of ownership drops 22% over five years when factoring in reduced maintenance frequency, calibration intervals extended from quarterly to biannually, and zero unscheduled spindle stoppages.

Why Engineers Specify Through Us

Authenticity & Documentation

Each LM series precision ball screw ships with SKF-compatible Certificate of Conformity, Material Test Report (tensile strength, hardness, chemical composition), Dimensional Inspection Report (lead error, pitch deviation, effective diameter), and original packaging bearing BDL trademark and anti-counterfeit hologram. Batch numbers are registered in our ERP system and cross-referenced to mill test reports. Customers may verify authorization status directly via SKF’s official Partner Locator portal (partner.skf.com).

Storage & Handling Guidelines

• Store in original SKF-compatible packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF LGMT 2 or LGWA 2 grease per ISO 3408-5 dosage tables.

Start with a Technical Consultation

Correct selection begins with your application data — not a datasheet. Send us your CNC lathe’s maximum axial load (kN), feed speed (mm/min), stroke length (mm), ambient and operational temperature range (°C), and mounting configuration (fixed-fixed/fixed-supported). Within 48 hours, our engineers will deliver: (1) ISO 3408-3-compliant lead error prediction, (2) thermal growth compensation recommendation, (3) preload torque specification with backlash vs. life trade-off analysis, and (4) optional integration guidance for SKF sensor-integrated bearing housings. Every day without validated motion system engineering compounds risk — begin with precision, not procurement.
