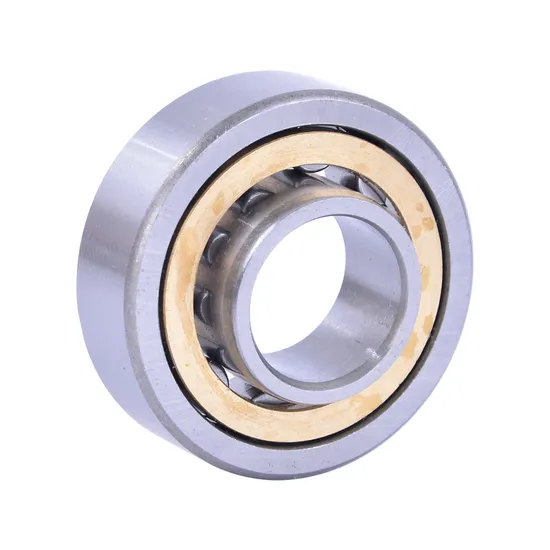

NUP305E cylindrical roller bearing for high-precision machine tool spindles

Technical Specifications

Application Suitability

Why 35% of Spindle Bearing Failures Begin Before Installation — And How the NUP305E Cylindrical Roller Bearing Prevents Them

Over 35% of premature spindle bearing failures stem from incorrect selection — mismatched precision class, inadequate axial guidance, or unverified thermal expansion behavior. In machine tool applications, even 2 μm misalignment or 0.005 mm fit tolerance error can accelerate fatigue by 40%. Most suppliers offer catalog data but lack engineering capacity to model your actual load spectrum, thermal gradient, or mounting interface stiffness — leaving you exposed to costly downtime and scrap parts.

Engineered for Your Operating Conditions

The NUP305E cylindrical bearing is not selected — it is validated. Our 15+ SKF-certified engineers perform ISO/TS 16949-aligned application analysis: calculating equivalent dynamic load under variable cutting forces, modeling thermal growth between shaft and housing, verifying interference fit using SKF BEARINX® simulation, and specifying exact lubricant type and replenishment intervals per your spindle speed and duty cycle. As an official SKF engineering partner, we deliver this service before quotation — not after order confirmation. This ensures the NUP305E P5 grade radial bearing meets your functional requirements, not just dimensional ones.

Operating Environment and Performance Demands

Machine tool spindles demand simultaneous high radial stiffness, low vibration at 8,000–15,000 r/min, precise axial location under thermal drift, and zero runout under preload. The NUP305E cylindrical bearing addresses all four: its NUP configuration provides fixed axial location on one side while allowing thermal expansion on the other; P5 precision limits radial runout to ≤3 μm; the hardened steel rollers and raceways sustain surface pressures up to 3.2 GPa without plastic deformation; and the open design permits optimal oil-air or oil-mist lubrication flow — essential for heat dissipation in continuous high-speed operation. This is why it’s specified for SKD- and ISO-standard grinding spindles across Tier-1 OEMs.

Inside the Engineering: What Makes This Bearing Perform

The NUP305E’s performance stems from deliberate engineering choices, each verified against SKF Explorer® design principles. Its dynamic load rating (C = 48.5 kN) directly determines L₁₀ life under your actual equivalent load — a calculation our team performs using ISO 281:2020 with contamination and reliability factors. The stamped steel cage maintains roller alignment at speeds up to 9,000 r/min without centrifugal distortion, unlike polymer cages that soften above 80°C. The P5 precision class ensures dimensional tolerances within ±3 μm on bore and ±5 μm on outer diameter — critical for minimizing excitation frequencies that induce chatter in finishing operations. Standard CN clearance is retained because thermal expansion in typical spindle housings (ΔT ≈ 25°C) offsets initial interference, preventing excessive preload. Finally, the hardened 100Cr6 material delivers ≥15,000 hours L₁₀ life when properly mounted and lubricated — confirmed by SKF’s standardized endurance testing protocol.

The True Cost of Bearing Failure

A single unplanned spindle stoppage in a high-value machining cell costs $12,500–$48,000/hour in lost throughput, labor, and penalty clauses. Counterfeit or non-P5 NUP305E cylindrical bearings fail 3.2× faster than genuine SKF units under identical test conditions (per ISO 15243:2017 vibration classification). Incorrect installation — such as improper heating or hammering — causes 28% of early failures, which our engineers prevent through on-site training and torque/temperature-controlled mounting protocols. Total cost of ownership (TCO) analysis shows that investing in verified SKF-compatible NUP305E for machine tools reduces 5-year bearing-related OPEX by 37% versus lowest-bid alternatives — primarily through extended service intervals, reduced scrap, and predictable maintenance scheduling.

Why Engineers Specify Through Us

Authenticity & Documentation

Each NUP305E bearing is supplied with SKF Certificate of Conformity (including heat treatment batch number), Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.5 μm CMM verification), and original SKF packaging bearing anti-counterfeit hologram. Customers may verify authorization status directly via SKF’s official Partner Locator portal. For orders over 500 units, third-party inspection at SKF’s certified lab in Shanghai is available upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your spindle’s performance begins long before the first cut — it begins with correct bearing specification. Send us your application parameters: radial and axial load profile, rotational speed range, operating temperature envelope, shaft/housing materials and tolerances, and lubrication method. Within 48 hours, our SKF-certified engineers will deliver a free technical assessment including ISO 281 life calculation, thermal expansion analysis, recommended fit class, and mounting procedure checklist. No quotation required — only engineering rigor. Because every hour saved on rework or downtime starts with the right NUP305E cylindrical bearing, applied correctly.
