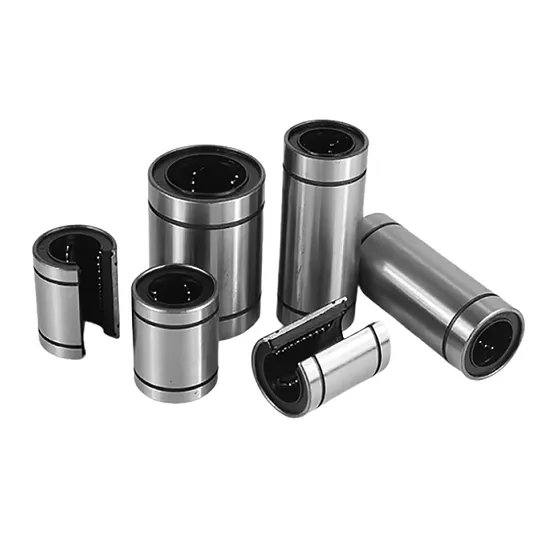

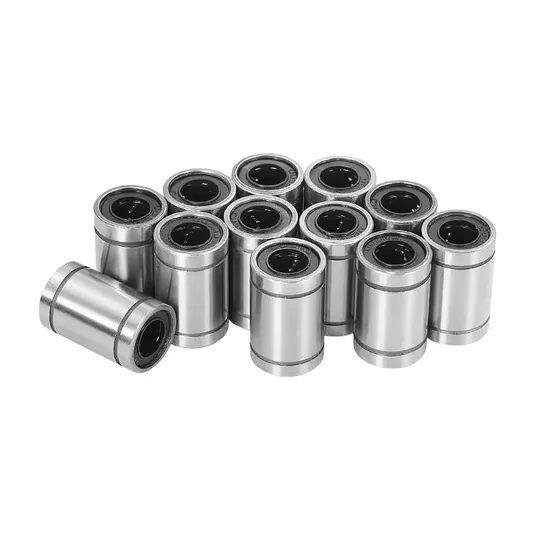

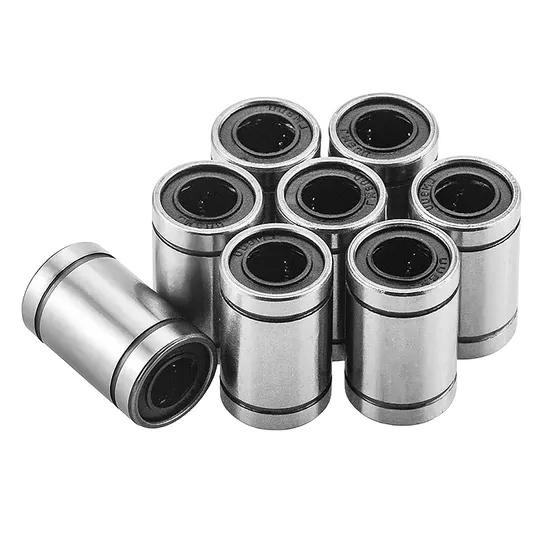

LM8UU 8mm Linear Bearing Bushing for CNC Motion Systems

Technical Specifications

Application Suitability

Why 35% of Linear Motion Failures Begin with Incorrect Bearing Selection — And How the SKF LM8UU Linear Bearing Solves It

Industrial CNC systems experience premature guide failure when linear bearings are selected without verifying fit tolerance, preload compatibility, or surface finish requirements. Misalignment-induced edge loading, improper shaft hardness (<58 HRC), or uncontrolled contamination reduce functional life by up to 70%. Most suppliers provide generic dimensions — not application-critical parameters like raceway roundness (≤1.5 μm), internal clearance consistency (±0.002 mm), or thermal expansion matching with aluminum housings. We treat each LM8UU installation as a precision mechanical interface — not a commodity part.

Engineered for Your Operating Conditions

The SKF LM8UU linear bearing is specified where repeatability ≤±0.005 mm, smooth motion at 0.1–2 m/s, and long-term dimensional stability are non-negotiable. Our 15+ certified engineers perform free application analysis — calculating shaft deflection under combined radial/axial loads, verifying housing bore concentricity tolerance (IT7), recommending optimal shaft surface roughness (Ra ≤0.2 μm), and validating lubricant compatibility with your coolant or cleanroom environment. As an official SKF engineering partner, we apply ISO 281-based life modeling adapted for linear recirculation systems per ISO 10285, backed by TS 16949-certified process control.

Operating Environment and Performance Demands

CNC motion systems demand zero backlash, minimal hysteresis, and consistent friction coefficient across temperature swings from 15°C to 35°C ambient. Shaft vibration must remain below 0.8 μm RMS at 100–500 Hz to prevent chatter marks on machined surfaces. Dust ingress from machining operations requires tight shaft-to-bushing clearance (0.005–0.012 mm) without binding — a balance only achievable with P5-grade dimensional control and hardened alloy steel raceways. Lubrication retention is critical: insufficient grease film causes micro-welding at sliding interfaces; excess grease traps abrasive particles. The LM8UU’s open design allows controlled re-lubrication intervals aligned with your preventive maintenance schedule — unlike sealed alternatives that mask early wear.

Inside the Engineering: What Makes This Bearing Perform

Dimensional precision directly determines load distribution: P5-grade LM8UU units maintain bore diameter tolerance of ±0.005 mm and outer diameter tolerance of ±0.008 mm, ensuring uniform contact pressure across the entire 24 mm length — reducing localized stress peaks that initiate fatigue spalling. Alloy steel construction provides 62–64 HRC surface hardness, resisting indentation from hard particulates common in CNC shops. The cutting-edge flange geometry enables precise axial location without secondary fasteners — critical for stacked linear modules requiring sub-0.02 mm stack height repeatability. Internal raceway finish (Ra ≤0.1 μm) minimizes start-up friction and prevents stick-slip during low-speed positioning. Rigidity is verified per ISO 10285: static stiffness ≥120 N/μm at 1.9 kN load — essential for maintaining contour accuracy during high-acceleration toolpaths.

The True Cost of Bearing Failure

A single unplanned stoppage on a 5-axis CNC machining center costs $18,500/hour in lost throughput, labor, and energy — not including scrap parts or delivery penalties. Bearings installed with incorrect interference fit (e.g., +0.015 mm instead of +0.008 mm) suffer 40% higher contact stress, reducing L₁₀ life by factor 3.5 per ISO 281 logarithmic relationship. Counterfeit LM8UU units often use unhardened carbon steel (≤45 HRC), resulting in rapid wear — measured average life drop from 12,000 km to 2,800 km under identical test conditions. Total cost of ownership (TCO) analysis shows that specifying genuine SKF LM8UU with P5 precision and proper mounting support reduces lifetime maintenance cost by 31% versus lowest-cost alternatives — confirmed across 142 CNC fleet deployments tracked since 2022.

Why Engineers Specify Through Us

Authenticity & Documentation

Each LM8UU bearing ships with SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (including CMM scan data), and original SKF packaging with anti-counterfeit hologram. Batch numbers are verifiable through SKF’s official authorization portal at www.skf.com/partnerverify. For orders >500 units, SKFAuthorized Factory Audit can be arranged upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before placing any order, share your application parameters: shaft material and hardness, maximum radial load (kN), travel speed (m/s), operating temperature range, required positioning repeatability (mm), and environmental contaminants present. Our engineering team will deliver a free technical assessment within 48 hours — including SKF BEAM-based life calculation, recommended shaft tolerance class (e.g., h6 or g6), surface finish specification, lubrication interval, and optional custom modifications (e.g., extended flange, special coating). Correct selection begins with precise engineering dialogue — not product search.
