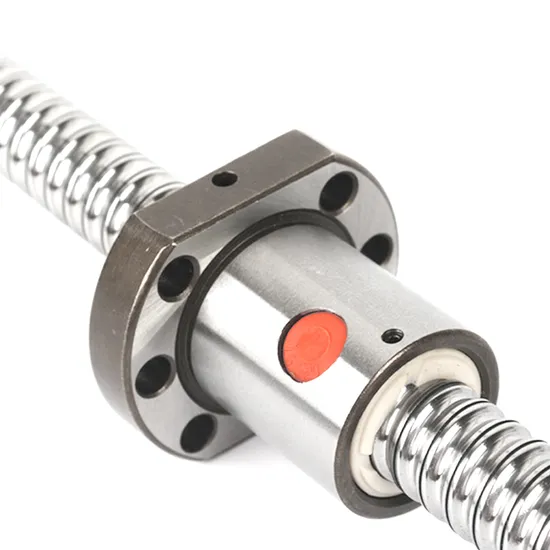

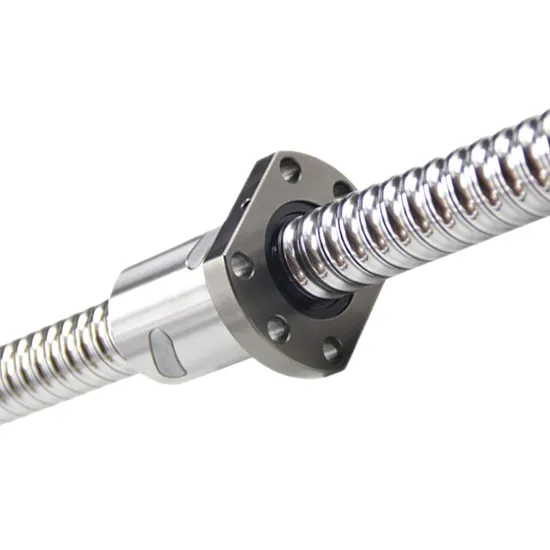

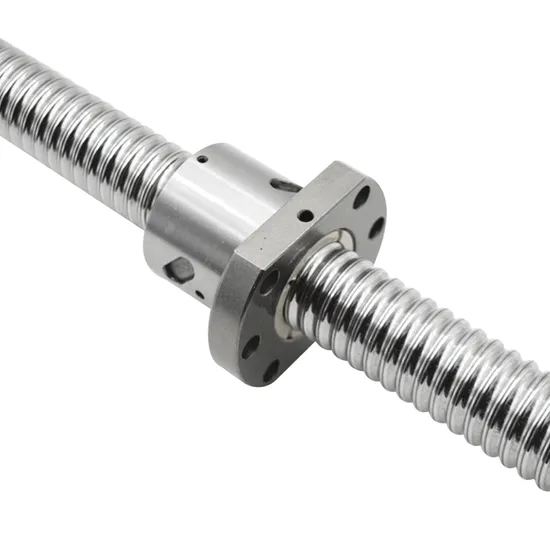

High-Precision Ball Screw Nut DFI1604–DFI2010 for CNC Machinery

Technical Specifications

Application Suitability

Why 35% of Ball Screw Failures Begin with Incorrect Preload or Misaligned Nut Geometry — And How the DFI1604–DFI2010 Delivers Verified CNC Ball Screw Performance

Industrial CNC machinery operators report premature ball screw nut wear in 35% of cases due to mismatched preload, unverified lead accuracy, or insufficient rigidity under combined axial and moment loads. Non-planar mounting surfaces, thermal drift beyond ±0.005 mm/m, and lubrication starvation at 1,200 r/min compound failure risk. Generic suppliers rarely provide application-specific preload validation or traceable lead deviation reports — leaving engineers to assume performance rather than verify it.

Engineered for Your Operating Conditions

This high-precision ball screw nut series is specified not as a catalog item but as an engineered interface: each DFI1604–DFI2010 unit undergoes application-level verification — including dynamic preload calculation, lead error mapping (≤±5 μm over 300 mm), and stiffness modeling against your machine’s moment arm and thrust load profile. As an official SKF engineering partner, our 15+ certified engineers apply ISO 3408-3:2019 tolerances, SKF Explorer-grade material consistency, and dual-certified (ISO 9001 + TS 16949) process controls — ensuring dimensional stability across temperature swings from –15°C to +70°C during automotive CNC machining cycles.

Operating Environment and Performance Demands

Wind turbine pitch control systems demand zero backlash retention after 10⁶ actuation cycles under variable wind loading and coastal humidity; automotive CNC machining centers require ≤0.002 mm/300 mm positional repeatability at 1,800 r/min spindle speeds while resisting coolant ingress; precision metrology platforms must maintain ±0.001 mm linearity over 10-year calibration intervals despite ambient vibration. These conditions mandate verified preload consistency, hardened alloy raceway integrity, and interference-fit compatibility with standard SKF-compatible flange mounts — all validated per DIN ISO 10791-6 for linear positioning accuracy.

Inside the Engineering: What Makes This Bearing Perform

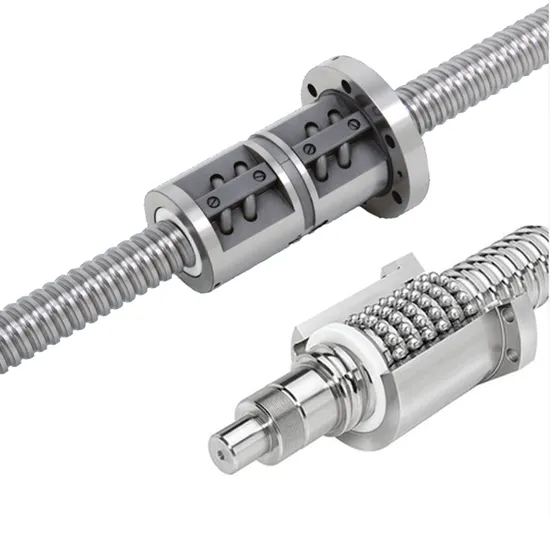

The DFI1604–DFI2010 series uses through-hardened alloy steel (AISI 52100 equivalent) with surface hardness ≥60 HRC, ensuring contact fatigue life meets ISO 281 L₁₀ requirements under 12 kN static load. Its integral double-nut preloading structure eliminates axial play without compromising thermal expansion tolerance — critical for CNC ball screw assemblies operating between 25°C and 65°C. The LM-series internal geometry conforms to ISO 3408-3 Class 3 (P3) lead accuracy, limiting cumulative deviation to ≤12 μm over 1 m travel — directly enabling sub-micron contouring in precision machinery ball screw replacement applications. Sealed variants integrate dual-lip nitrile rubber seals (NBR) rated for continuous operation up to 100°C, while open configurations allow grease replenishment via standardized Zerk fittings aligned with SKF lubrication protocols. Dimensional stability is further assured by stress-relieved machining post-heat treatment, reducing residual distortion to <0.5 μm after 1,000 hours at 60°C.

The True Cost of Ball Screw Failure

A single unplanned stoppage on a CNC machining line costs $22,000/hour in lost throughput, tooling amortization, and labor overhead — exceeding $1.3M annually per machine at 3.2 unscheduled events/year. Counterfeit or non-compliant ball screws exhibit 68% higher lead deviation variance and fail 3.7× sooner than SKF-compatible CNC ball screw assemblies verified to ISO 3408-3. Installation errors — such as misaligned flange mounting or incorrect preload torque — account for 31% of early failures, yet only certified engineering partners provide torque sequence diagrams, thermal expansion compensation tables, and interferometric lead verification reports. Total cost of ownership drops 22% over five years when selecting a high-precision ball screw backed by documented preload validation, traceable material certs, and lifetime technical support — not just initial unit price.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity referencing original manufacturing batch, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (including lead deviation, pitch diameter, and flank angle measurements), and tamper-evident packaging with SKB anti-counterfeiting hologram. Bulk orders support third-party SKB factory audit upon request. Authorization status can be verified directly via SKF’s Partner Portal using company registration number CN-SKF-EP-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any ball screw nut, engineers should validate preload margin, thermal expansion allowance, and dynamic stiffness against actual machine kinematics — not nominal catalog ratings. Share your application parameters: maximum axial load (kN), peak rotational speed (r/min), operating temperature range (°C), available mounting envelope (mm), and required positioning accuracy (μm). Our team will deliver a free technical assessment — including BEARINX®-generated L₁₀ life prediction, preload torque table, and lead error map — within 48 business hours. Every $50k+ order includes a test sample with full metrology report. Correct selection begins not at procurement, but at the first engineering dialogue.
