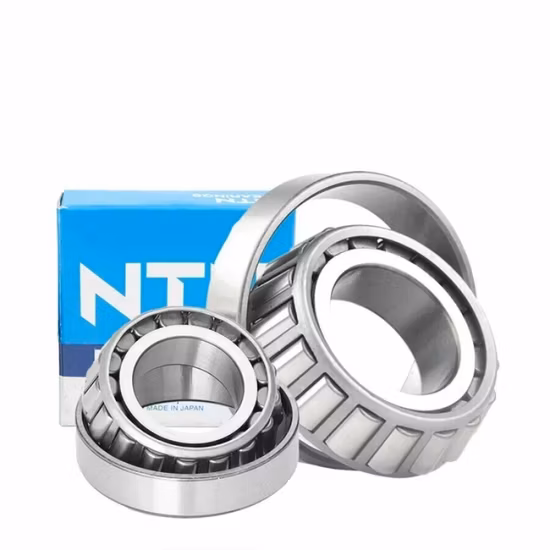

LM78349/10A Inch Tapered Roller Bearing 24780/24720 L21549 Original Timken FAG Koyo NTN NSK [WARN] draft identifier mismatch

Cross-reference alignment — matching the base number, internal design, and cage material prevents thermal binding in heavy-duty axle applications.

Technical Specifications

Application Suitability

Why Base Number Matching Fails the LM78349/10A Inch Tapered Roller Bearing

Matching the cone and cup numbers is only the first step in preventing field failures.

Sourcing teams frequently approve replacements based solely on the primary designation, ignoring the critical internal geometry and cage specifications required for the actual operating environment. When a standard clearance unit is forced into a high-temperature axle housing, thermal expansion eliminates the internal clearance, leading to catastrophic roller skidding and raceway spalling . This exact oversight caused a complete axle seizure on a heavy transport unit I was servicing in Dubai, where the ambient heat combined with friction to lock the assembly solid. Procurement decisions must evaluate the complete dimensional and operational profile, not just the stamped steel numbers.

Matching the LM78349/10A to Drivetrain Demands

Selecting the correct LM78349/10A inch tapered roller bearing requires balancing the radial and thrust loads inherent in truck axles and industrial gearboxes. Our technical review process evaluates the specific mounting arrangement and preload requirements to ensure the single-row configuration handles the combined load vectors without edge stressing. By verifying the exact cage material and internal geometry against the OEM equipment manual, we eliminate the guesswork that leads to premature warranty claims.

Thermal and Load Challenges in Axle Housings

Heavy vehicle axles and industrial gearboxes subject tapered roller bearings to intense combined loading and significant temperature fluctuations. At elevated temperatures, the housing expands at a different rate than the shaft, which can crush the internal clearance if the wrong class was selected during specification. Proper lubrication is equally critical; oil bath systems in axles require cages that can withstand high-speed churning without degrading, while grease-lubricated hubs demand robust retention designs to prevent contaminant ingress . Misalignment from shaft deflection further complicates the load zone, demanding precise roller profiling to avoid stress concentrations at the roller ends.

Decoding the P4 Precision and Cage Options

The P4 precision class specified for this designation ensures tight control over bore diameter, outside diameter, and running accuracy, which is essential for minimizing vibration in high-speed pinion shafts. The availability of nylon, brass, or stamped steel cage variants allows engineers to tailor the bearing to the specific speed and load profile of the application. Brass cages offer superior durability under heavy shock loads and high temperatures, while engineered polymer cages reduce weight and friction in high-speed, well-lubricated environments. This flexibility in internal components ensures the LM78349/10A inch tapered roller bearing performs reliably across diverse mechanical systems.

The Hidden Cost of Ignoring Internal Geometry

Installing a bearing that matches the outer dimensions but lacks the correct internal contact angle or cage design leads to rapid, unplanned downtime. According to ISO 281 life calculation frameworks, even minor deviations in load distribution caused by incorrect internal geometry drastically reduce the calculated fatigue life . In heavy machinery, this premature failure often results in collateral damage to adjacent seals, shafts, and housings, turning a simple component replacement into a massive rebuild project that voids equipment warranties.

Sourcing with Technical Verification

We differentiate our supply chain by enforcing strict cross-reference alignment, ensuring that equivalents like 24780/24720 or L21549 match the LM78349/10A in internal design and clearance, not just outer dimensions. Our authorization across major global brands means you receive genuine components with full batch traceability, eliminating the risk of counterfeit rings with substandard hardness. Every shipment is backed by application-based selection reviews, catching clearance mismatches before the bearing ever reaches the workshop floor.

Documentation & Authenticity

• Certificate of Conformity verifying P4 tolerance grades for the specific LM78349/10A batch.
• Manufacturer lot traceability linking the cone and cup set to the original heat treatment records.
• Official brand app QR verification confirming the authenticity of the packaging and product markings.
• Material test reports validating the GCr15 bearing steel composition and hardness specifications.
• Dimensional and running accuracy inspection reports confirming bore and OD tolerances prior to dispatch.
• Country-of-origin documentation supporting customs clearance and regional import compliance.

Storage, Handling & Mounting

• Store the LM78349/10A in its original vapor-phase inhibitor packaging to protect the GCr15 steel from humidity.
• Keep the cone and cup separated in their factory wrappers until the exact moment of axle assembly.
• Use induction heaters with automatic demagnetization to mount the inner ring, avoiding localized overheating of the P4 precision raceway.
• Apply clean gloves during handling to prevent acidic sweat from etching the high-precision roller surfaces.
• Verify the specified axial preload using a dial indicator to ensure optimal load distribution across the tapered rollers.

Engineering Support for Your Application

To ensure the selected unit meets your operational demands, provide our engineering team with the exact radial and axial loads, operating speeds, and steady-state temperatures of your application. Supplying the OEM equipment number or the existing housing dimensions allows us to perform a precise cross-reference check and L10 life calculation. This technical validation guarantees the internal geometry and clearance class are perfectly matched to your specific machinery requirements.

Frequently Asked Questions

Q: What must be verified when cross-referencing the LM78349/10A to other brands?
A: When evaluating equivalents like 24780/24720, you must verify the internal contact angle, cage material, and precision class, not just the basic envelope dimensions. A mismatch in these internal parameters will alter the load distribution and thermal behavior, leading to rapid failure in demanding axle or gearbox applications.

Q: How do I choose between brass and nylon cages for this designation?
A: Brass cages are preferred for heavy shock loads, high temperatures, and marginal lubrication conditions typical in off-highway axles. Nylon cages offer lower friction and higher speed capabilities, making them ideal for well-lubricated, high-speed industrial gearboxes where operating temperatures remain stable.

Q: Why is P4 precision specified for this inch tapered roller bearing?
A: P4 precision ensures tighter tolerances on bore, outside diameter, and running accuracy compared to standard classes. This reduces vibration and heat generation in high-speed pinion shafts and wheel hubs, extending the fatigue life of the assembly and improving overall drivetrain efficiency.

Q: How can I verify the authenticity of the received components?
A: Every genuine unit features traceable batch markings that can be scanned using the manufacturer's official mobile application. This QR verification confirms the origin, production date, and specifications, protecting your operation from counterfeit parts that feature soft inner rings and cloned packaging.
