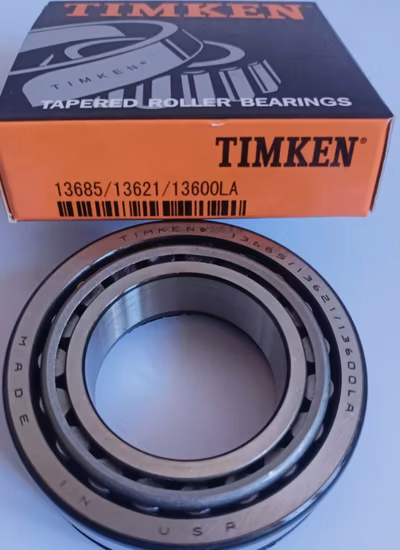

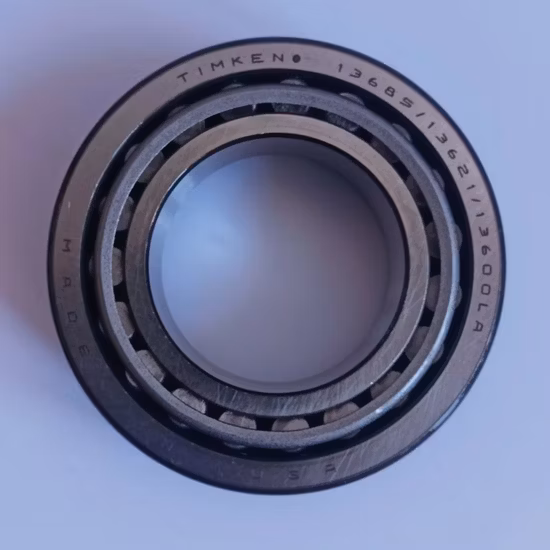

13685/13621 Inch Tapered Roller Bearing Single Row P4 Precision [WARN] draft identifier mismatch

Three-Way Cross-Reference Alignment — We validate the base 13685/13621 designation alongside exact internal clearance and cage material to prevent field thermal binding.

Technical Specifications

Application Suitability

Why Base Number Matches Still Cause 13685/13621 Inch Tapered Roller Bearing Failures

Matching the basic cone and cup numbers is only the first step; ignoring internal geometry guarantees premature seizure.

Procurement teams often source replacements by matching the base 13685/13621 inch tapered roller bearing designation, only to face catastrophic thermal binding in the field. I have seen countless truck axles and gearboxes fail because the replacement unit had a standard clearance where a C3 equivalent was required for thermal expansion, or a pressed steel cage was installed in a high-vibration environment that demanded brass. According to failure mode classifications per ISO 15243 , a significant share of premature bearing failures stems from these subtle internal mismatches rather than fundamental material defects. When cross-referencing ignores cage material and precision suffixes, the equipment pays the price through unplanned downtime.

Matching the 13685/13621 to Demanding Drivetrain Environments

Heavy-duty applications require components that manage combined radial and unidirectional thrust loads without compromising rotational accuracy. The 13685/13621 inch tapered roller bearing addresses this by utilizing precision-ground rolling elements that distribute stress evenly across the raceway contact lines. Our technical team reviews your specific load profiles and mounting arrangements to ensure the selected internal geometry aligns perfectly with the original equipment manufacturer's performance expectations.

Navigating Heavy Loads and Thermal Expansion Challenges

Industrial gearboxes and truck axles subject components to intense shock loads and fluctuating operating temperatures. As the shaft and housing expand at different rates under heavy load, internal clearance must be carefully managed to prevent the rollers from skidding or binding against the raceways. Proper lubrication is equally critical; oil bath or circulating oil systems are typically preferred to carry away friction heat in high-speed gear applications, while grease requires strict re-lubrication intervals to prevent contamination buildup . Incorrect mounting preload during assembly can instantly eliminate the designed operational clearance, leading to rapid temperature spikes.

Decoding the P4 Precision and Material Options

Achieving P4 precision in an inch-series tapered roller bearing ensures tighter dimensional and running accuracy, which is essential for minimizing vibration in high-speed gear shafts. The rings and rollers are manufactured from GCr15 high-carbon chromium bearing steel, providing the necessary core toughness and surface hardness for extended fatigue life . For the cage, buyers can choose from nylon, brass, or pressed steel options. Brass cages offer superior durability in high-vibration or poor-lubrication conditions, while nylon cages reduce weight and operating noise, and pressed steel provides a cost-effective solution for standard industrial drives.

The Hidden Costs of Overlooking Internal Geometry

Installing a replacement that merely matches the outer dimensions while ignoring internal design parameters leads directly to catastrophic damage. When the internal clearance is too tight for the operating temperature, the bearing experiences thermal binding, resulting in severe raceway smearing and eventual seizure. Conversely, excessive clearance causes roller skidding and premature surface fatigue. Following the life calculation frameworks outlined in ISO 281 , these installation and selection errors drastically reduce the calculated L10 life, voiding equipment warranties and forcing expensive emergency repairs.

Securing Your Supply Chain Against Counterfeits

Sourcing mixed-brand requirements from a single authorized channel eliminates the coordination delays typical of fragmented supply chains. We validate every cross-reference to ensure the base number, internal clearance, and cage material perfectly match your OEM specifications, preventing the thermal binding caused by粗放 substitutions. Every shipment includes full batch and lot traceability back to the manufacturer's production facilities. Buyers can verify authenticity directly through official brand apps, effectively eliminating the risk of counterfeits with soft inner rings. Our application-based selection review covers load, speed, and mounting conditions to guarantee the 13685/13621 performs reliably under your specific operational stresses.

Documentation & Authenticity

• Certificate of Conformity confirming the exact 13685/13621 designation and P4 precision class.
• Batch and lot traceability linking every cone and cup set to the original manufacturing run.
• Official brand app QR verification to instantly rule out counterfeit units with soft inner rings.
• Material test reports validating the GCr15 steel chemistry and heat treatment hardness.
• Dimensional and running accuracy inspection reports verifying P4 tolerances before dispatch.

Storage, Handling & Mounting

• Keep the cone and cup sets in their original VCI packaging until mounting to prevent GCr15 surface corrosion.
• Store P4 precision components in a climate-controlled environment to avoid thermal distortion before assembly.
• Use induction heaters with precise temperature control when mounting the 13685 inner ring onto shafts.
• Adjust the axial preload carefully during assembly to establish the correct operational clearance for the single row design.
• Handle brass cage variants with clean gloves to prevent acidic skin contact from degrading the cage material.

Pre-Purchase Technical Verification

To ensure the selected 13685/13621 configuration meets your operational demands, please provide the specific radial and axial loads, operating speeds, and expected temperature ranges. Sharing the OEM equipment number or the original manufacturer's part number allows our engineering team to perform a precise cross-reference check. We will review these parameters to validate the internal clearance, cage material, and L10 life calculations before finalizing your order.

Frequently Asked Questions

Q: How can I verify the authenticity of the 13685/13621 bearing upon delivery?
A: Every unit we supply features a traceable QR code that links directly to the manufacturer's database. By scanning this code with the official brand application on your smartphone, you can instantly verify the batch number, production date, and origin. This process effectively eliminates the risk of installing counterfeit bearings that utilize soft inner rings and cloned packaging.

Q: Why is it insufficient to only match the base 13685/13621 numbers during replacement?
A: Matching the base numbers only confirms the outer dimensions. If the replacement has a standard clearance but your application requires extra clearance for thermal expansion, the bearing will bind and seize under load. We cross-reference the base number alongside the required cage material and precision class to ensure exact functional equivalence.

Q: How do I choose between brass, nylon, and pressed steel cages for this application?
A: Brass cages are highly recommended for heavy-duty gearboxes experiencing high vibration or marginal lubrication, as they resist cage fatigue. Nylon cages are ideal for applications requiring quiet operation and lower friction, provided temperatures remain within the polymer's limits. Pressed steel offers a reliable, cost-effective solution for standard industrial drives with stable operating conditions.

Q: What mounting practices are critical for maintaining P4 precision in inch tapered rollers?
A: Maintaining P4 precision requires strict adherence to mounting tolerances. The 13685 cone must be heated uniformly using an induction heater, avoiding open flames that cause localized softening. During assembly, the axial adjustment must be set precisely to achieve the target operational clearance, as excessive preload will instantly negate the benefits of the high-precision grinding.
