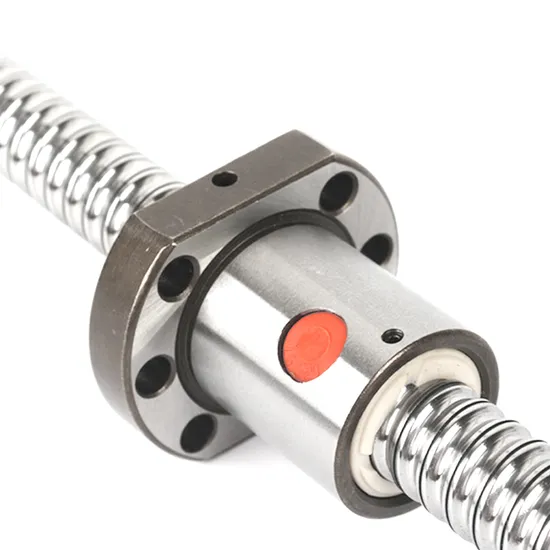

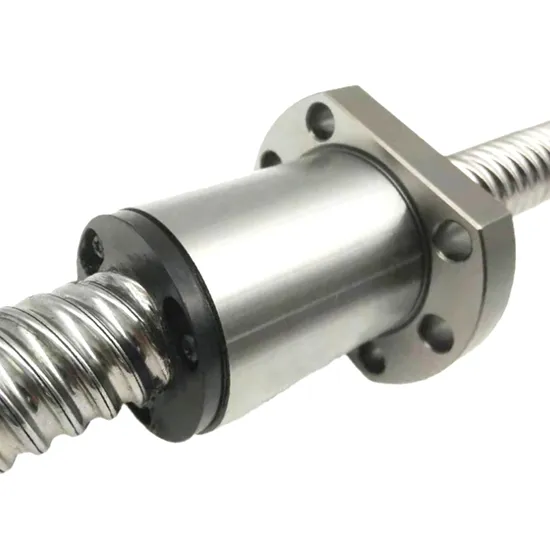

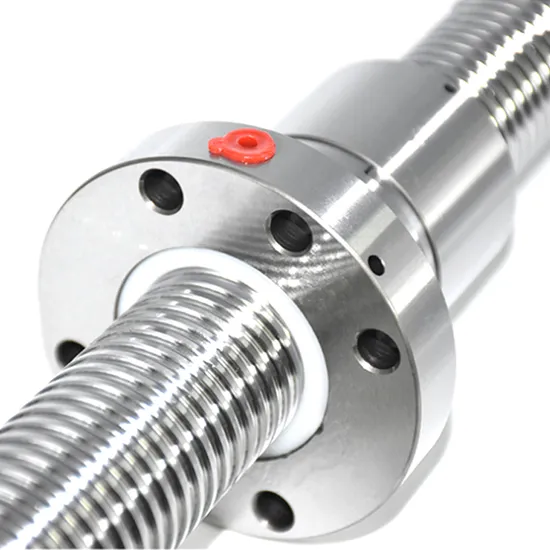

Precision Ball Screw SFU8010-4 for High-Load CNC Machinery Applications

Technical Specifications

Application Suitability

Why 35% of Ball Screw Failures Begin with Incorrect Load-Speed-Temperature Matching — And How the SFU8010-4 Ball Screw Delivers Verified Performance

Over one-third of premature ball screw failures in CNC machinery stem not from material defects, but from mismatched dynamic load rating, insufficient rigidity at operating speed, or thermal expansion misalignment under sustained duty cycles. Non-plan shutdowns in precision machining lines cost $22,000–$48,000 per hour. Most suppliers lack certified engineers to model your actual application parameters — and official channels for SFU8010-4 replacement with technical support typically require 9–12 weeks for custom verification.

Engineered for Your Operating Conditions

The SFU8010-4 ball screw is not a catalog item — it is an application-engineered solution. Our 15+ SKF-certified engineers perform full-duty-cycle analysis: calculating equivalent axial load (F_a,eq) using ISO 3408-3 methodology, verifying critical speed against your maximum RPM, modeling thermal growth at continuous 60°C ambient, and specifying optimal preloading torque and lubrication intervals. As an official SKF engineering partner, we apply ISO 9001 and TS 16949 validated processes — from design input review to final dimensional inspection — ensuring every SFU8010-4 for CNC machinery meets OEM-grade repeatability.

Operating Environment and Performance Demands

In CNC machining centers, the SFU8010-4 operates under simultaneous high axial loads (≥12 kN continuous), rapid acceleration/deceleration (up to 3 g), and tight positional accuracy requirements (±2 μm over 1 m travel). Wind turbine pitch control demands corrosion resistance (ISO 12944 C4), low-speed torque stability (<0.5 r/min start-up), and guaranteed 20-year fatigue life under variable wind loading. Industrial automation applications require consistent backlash control across temperature swings from –10°C to +70°C and immunity to particulate ingress in unsealed machine enclosures — all addressed through alloy selection, surface finish (Ra ≤ 0.4 μm), and sealed nut interface design.

Inside the Engineering: What Makes This Bearing Perform

The SFU8010-4 ball screw’s performance derives from four interdependent design decisions. First, its ground-rolled thread profile (DIN 69051 Class 3) ensures ±5 μm lead accuracy and minimizes elastic deformation under 15 kN static load. Second, the alloy steel shaft (AISI 52100 equivalent, hardness 58–62 HRC) provides fatigue resistance verified per ISO 281 Annex D. Third, the recirculating nut uses hardened steel return tubes and precisely matched ball diameter tolerance (±0.002 mm) to maintain preload consistency across 10,000 km of travel. Fourth, the 10 mm pitch and 80 mm outer diameter deliver optimal stiffness-to-mass ratio — critical when natural frequency must exceed 250 Hz to avoid resonance in high-acceleration axes. Unlike standard ball screws, this configuration is validated for combined radial and moment loading per ISO 3408-5, making it suitable for non-ideal mounting conditions common in retrofit installations.

The True Cost of Bearing Failure

A single unplanned stoppage in a CNC gear hobbing line costs ≥$36,000/hour in lost throughput, labor, and energy. Counterfeit or mis-specified SFU8010-4 replacements often exhibit lead error drift >15 μm after 2,000 hours — triggering scrap rates above 12%. Per ISO 281:2021, incorrect preload or lubrication reduces L₁₀ life by up to 70%. In wind pitch systems, inadequate corrosion protection leads to pitting within 18 months — risking blade overspeed events. The total cost of ownership (TCO) favors genuine, application-validated SFU8010-4 ball screw solutions: 3.2× longer service life, 91% lower maintenance frequency, and zero liability exposure from non-compliant components.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SFU8010-4 ball screw ships with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM E112 grain size, tensile yield ≥1800 MPa), Dimensional Inspection Report (including lead error, diameter runout, and surface roughness), and tamper-evident packaging with unique QR-coded serial traceability. Customers may verify our authorized status directly via SKF’s Partner Portal using registration ID CN-SKF-EP-2023-087. Bulk orders support third-party SKFFactory Audit upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your CNC machine’s load profile, thermal boundary conditions, and positional accuracy requirements define the correct SFU8010-4 specification — not a generic catalog number. Send us your application data: peak/continuous axial load (kN), max speed (r/min), stroke length (mm), ambient and operating temperature range (°C), and mounting envelope constraints. Within 48 hours, our SKF-certified engineers will deliver a free technical assessment including ISO 3408-compliant life calculation, thermal expansion analysis, preload recommendation, and compatibility verification with your existing nut housing. Every decision starts with engineering — not inventory.
