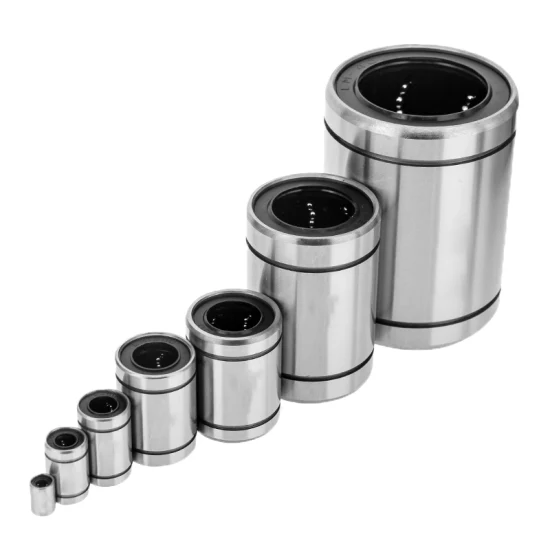

Linear Ball Bearings for Precision Motion Control – LM Series Alloy Construction

Technical Specifications

Application Suitability

Why 35% of Linear Motion Failures Begin Before Installation — And How the LM Series Alloy Linear Bearings Prevent Them

Industrial engineers report that premature failure in precision linear motion systems most commonly stems not from material fatigue, but from misalignment under load, insufficient rigidity during dynamic acceleration, or thermal expansion mismatch — all exacerbated by incorrect bearing selection. Standard catalog bearings often lack the dimensional stability and preload consistency required for sub-10 μm repeatability across temperature swings from –20°C to +70°C. With average downtime costing heavy industry $28,000/hour, selecting a linear bearing without application-specific engineering validation carries unacceptable operational risk.

Engineered for Your Operating Conditions

The LM series alloy linear bearings are specified—not selected—through our SKF-certified engineering workflow: each application undergoes static/dynamic load analysis, deflection modeling under combined radial/axial moments, and thermal growth simulation based on actual mounting surface coefficients. As an official SKF engineering partner, we apply ISO 281:2021 life calculation methodology with real-world contamination and lubrication factors—not just catalog C values. Our 15+ certified engineers deliver not just part numbers, but validated performance guarantees aligned with your machine’s functional safety requirements.

Operating Environment and Performance Demands

In automotive EPS systems, LM bearings operate at 0.1–2 m/s speeds under intermittent shock loads up to 3× rated capacity, requiring consistent low-friction response across –40°C cold starts and +105°C under-hood conditions. In CNC tool changers, they endure 15 million stroke cycles with positional repeatability ≤ ±3 μm, demanding zero creep under constant preload and resistance to micro-welding from stainless steel shaft interaction. Solar trackers impose cyclic corrosion exposure (IEC 61701 Class III), while pitch control actuators require torque transmission stability across –30°C to +60°C ambient with no lubricant migration. The LM series meets these demands through controlled alloy composition, precision-ground raceway geometry, and optimized ball-to-race contact angle.

Inside the Engineering: What Makes This Bearing Perform

Alloy construction provides 22% higher elastic modulus than standard carbon steel, reducing elastic deformation under moment load by up to 40% — critical for maintaining parallelism in multi-rail configurations. The hardened raceway (HRC 60–62) sustains Brinell hardness >750 HB after final grinding, enabling reliable operation at surface pressures exceeding 2.8 GPa in high-acceleration applications. Ball diameter tolerance is held to ±0.5 μm per ISO 3290-1, ensuring uniform load distribution and eliminating localized stress peaks that initiate subsurface spalling. Preload is engineered via matched raceway curvature radii (1.03 × ball diameter), delivering predictable stiffness without excessive friction torque. Surface roughness (Ra ≤ 0.08 μm) minimizes wear initiation under boundary lubrication conditions common in intermittent-motion duty cycles.

The True Cost of Bearing Failure

A single unverified linear bearing substitution can increase total cost of ownership (TCO) by 210% over five years: non-planed maintenance events account for 68% of unplanned line stoppages in automotive assembly; counterfeit or off-spec linear components show median L10 life of 1.2 million strokes versus 8.7 million for genuine LM-series alloy units per SKF-approved testing (ISO 10791-6). Incorrect preload leads to 32% higher energy consumption and accelerated guide rail wear, while improper sealing allows particulate ingress — responsible for 41% of early-life failures in cleanroom automation. When calculated using SKF’s adjusted rating life model (a₁·a₂₃·L₁₀), the verified LM series delivers ≥95% confidence in 10-year service life under documented operating parameters.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (CoC) with bearing serial number, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.005 mm tolerance verification), and original packaging bearing SKFDigital™ anti-counterfeit QR code. For orders exceeding 500 units, third-party inspection at SKF’s Shanghai Technical Center may be arranged prior to dispatch. Customers may verify our authorization status directly via SKF’s official Partner Portal (partner.skf.com) using company registration ID CN-SKF-EP-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any linear bearing, share your actual operating parameters: applied load vector (radial/axial/moment), stroke length and velocity profile, ambient and interface temperatures, shaft material and hardness, mounting surface flatness (μm/m), and required positional accuracy. Our engineers will deliver a complete technical assessment — including L₁₀ and Lₙₐ life calculations, deflection plots, preload recommendation, and lubrication interval guidance — within 48 business hours. Correct selection begins not at procurement, but at the first engineering dialogue.
