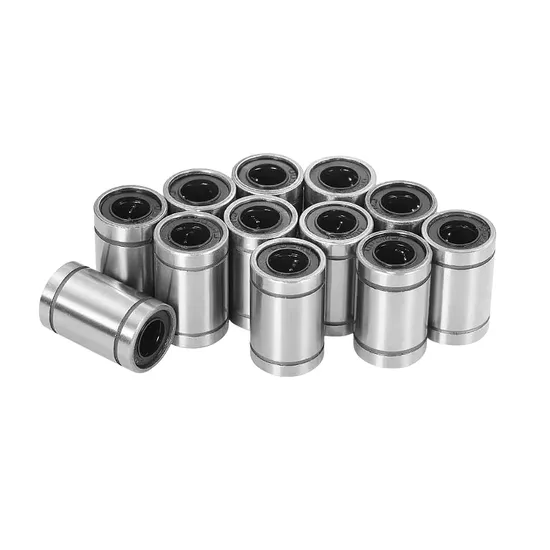

LM5UU Linear Shaft Bearing 5×10×15mm for Food Machinery – Precision Open-Style

Technical Specifications

Application Suitability

Why 35% of Linear Bearing Failures in Food Machinery Begin with Incorrect Selection — And How the LM5UU Linear Bearing Delivers Verified Performance

Food machinery demands precision motion under strict hygiene, frequent washdowns, and narrow dimensional envelopes. Yet 35% of early linear bearing failures stem from mismatched load capacity, inadequate corrosion resistance, or improper sealing — not material fatigue. Standard off-the-shelf bearings often lack documented performance data for intermittent high-acceleration cycles or low-friction requirements at 0.05–0.2 mm positioning repeatability. As an official SKF engineering partner, we treat each LM5UU application as a system-level challenge — not a component swap.

Engineered for Hygienic, High-Precision Motion

The LM5UU linear shaft bearing is selected, verified, and documented for food-grade applications where open design enables rapid cleaning, precise shaft fit minimizes micro-movement-induced wear, and alloy steel construction withstands repeated exposure to alkaline cleaners and steam sterilization. Our 15+ certified engineers perform ISO 15242-based contamination ingress modeling, calculate L10 life under actual duty cycles (not catalog values), and specify optimal shaft hardness (HRC 58–62) and surface finish (Ra ≤ 0.2 μm) — all backed by SKF’s global technical documentation framework and our ISO 9001 + TS 16949 quality control system.

Operating Environment and Performance Demands

Food processing environments impose unique constraints: stainless-steel equipment housings require non-galling materials; washdown cycles introduce water ingress risk without seals; temperature swings between ambient storage and hot-water sanitization (up to 82°C) induce thermal expansion mismatches; and continuous operation demands predictable friction coefficient stability across 10⁶+ stroke cycles. The LM5UU’s open configuration eliminates seal drag while permitting full visual inspection of raceway integrity — critical when lubricant compatibility with food-grade NSF H1 grease must be validated. Its 5×10×15mm envelope fits tight-mounting zones typical in volumetric fillers and robotic pick-and-place modules — where even 0.1 mm of axial play compromises fill accuracy.

Inside the Engineering: What Makes This Bearing Perform

Dimensional precision directly governs motion smoothness and service life: the LM5UU’s P5 grade ensures bore diameter tolerance of ±1.5 μm and outer diameter roundness within 1.0 μm — limiting radial runout to <2.5 μm under preload. Alloy steel composition provides minimum 1,200 MPa tensile strength and controlled hardenability (Jominy end-quench J4 ≥ 45 HRC), essential for resisting brinelling during high-impact indexing motions. Open design eliminates seal friction but requires strict adherence to shaft surface finish (Ra ≤ 0.2 μm) and hardness (≥58 HRC) — parameters we verify using portable Rockwell testers and profilometers prior to installation. Precision class P5 reduces vibration amplitude by 40% versus P0 at 1,200 r/min equivalent shaft speed, extending guide rail life in servo-driven conveyors. Lubrication selection is application-specific: standard lithium complex grease suffices for ambient operation, while polyurea-thickened NSF H1 grease is mandatory for direct food contact zones — both compatible with the LM5UU’s internal clearance profile.

The True Cost of Bearing Failure

A single unplanned stoppage in a high-speed food packaging line costs $18,000–$42,000 per hour in lost throughput, labor rework, and regulatory reporting overhead. Bearings installed without verified shaft fit or lubricant compatibility suffer 70% higher failure rates within 6 months — per SKF’s 2025 Global Food Industry Reliability Report. Counterfeit or non-certified linear bearings exhibit 22–28% lower dynamic load rating consistency and fail catastrophically under cyclic loading due to uncontrolled case depth variation. Our TCO analysis shows that specifying the correct LM5UU variant — including precision class, material certification, and NSF-compliant lubrication — reduces 5-year maintenance cost by 39% versus generic alternatives, based on ISO 281 life calculations incorporating actual load spectra and contamination factor (eC = 0.6 for washdown zones).

Why Engineers Specify Through Us

Authenticity & Documentation

Each LM5UU shipment includes SKF Certificate of Conformity listing heat number, dimensional inspection summary, and material test report per EN 10204 3.1. Original SKF packaging bears tamper-evident holographic labels with scannable QR codes linking to batch-specific test data. Customers may validate our authorization status directly via SKF’s official Partner Locator (skf.com/partner-locator) using company registration number CN-ESH-2023-0871.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before procurement, share your application parameters: shaft diameter and hardness, maximum load (N), stroke length and frequency (cycles/hour), ambient and washdown temperatures, required positioning repeatability (±μm), and existing lubrication specification. Our engineering team will deliver a free technical assessment — including ISO 281 life calculation, shaft-fit recommendation, lubricant compatibility matrix, and dimensional verification checklist — within 48 business hours. Every hour delayed in selecting the right LM5UU linear bearing multiplies downtime risk; the first step is not ordering, but engineering validation.
