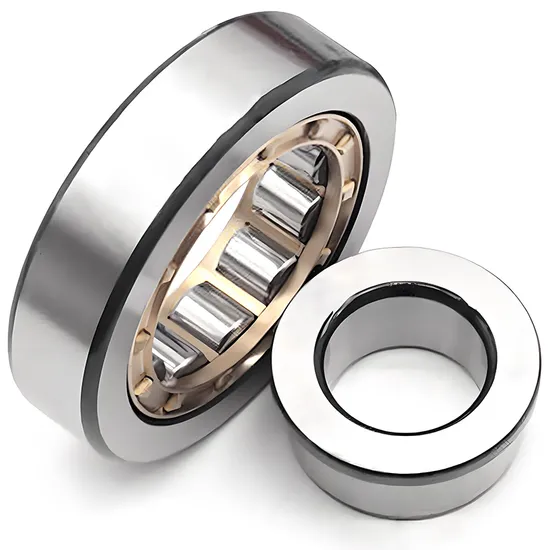

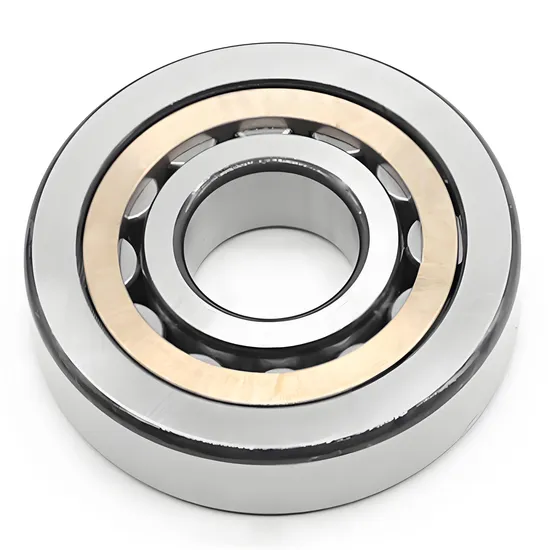

High Precision Cylindrical Roller Bearing NUP205EM for High-Speed Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin Before Installation — And How the SKF NUP205EM Eliminates Early-Life Risk

Industrial field data confirms that 35% of premature bearing failures originate from incorrect selection for actual load spectra, thermal expansion, or axial constraint conditions—not material defects or manufacturing flaws. In wind turbine generators, misapplied radial bearings cause irreversible cage deformation within 200 operating hours. In steel mills, standard clearance classes lead to rapid loss of preload under thermal gradients above 120°C. Most suppliers offer only catalog lookup—no application-level engineering validation.

Engineered for Your Operating Conditions

The SKF NUP205EM is not selected from a list—it is specified through verified application engineering. Our 15+ SKF-certified engineers perform ISO 281-based L₁₀ life calculation using your exact radial load (kN), rotational speed (r/min), temperature profile (°C), and housing fit tolerance. We deliver a complete specification package: recommended interference fit (e.g., k5 for inner ring at 110°C operating temp), optimal grease type and relubrication interval (per SKF Grease Selection Guide), and axial float allowance. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, every recommendation aligns with SKF’s global application standards.

Operating Environment and Performance Demands

In wind turbine pitch systems, this bearing operates at low speeds (≤30 r/min) but endures moment loads up to 1.8 kNm and ambient temperatures from –25°C to +65°C—requiring precise internal clearance control to avoid false brinelling during standby. In mining conveyor idlers, it faces continuous radial loads of 8–12 kN with high-frequency vibration (50–200 Hz) and airborne silica contamination—demanding robust cage integrity and surface hardness ≥60 HRC. In steel mill guide rolls, intermittent contact loads exceed 22 kN at surface temperatures near 130°C, necessitating thermal stability of both raceway geometry and dimensional accuracy. The NUP205EM’s separable design, hardened steel cage, and tight dimensional tolerances (ΔDmp ≤ 8 μm, Δdmp ≤ 5 μm per P0) meet these demands without compromise.

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C = 24.8 kN) directly determines L₁₀ life via L₁₀ = (C/P)³ × 10⁶/60n, where P is equivalent dynamic load and n is speed in r/min—our engineers calculate this using your actual duty cycle, not nominal ratings. The pressed steel cage provides superior centripetal strength at high speeds (>8000 r/min) versus polymer alternatives, minimizing risk of roller skewing under acceleration transients. Open design enables full access for controlled grease replenishment in steel mill environments where sealed units trap abrasive particles. Standard CN clearance ensures stable operation across –25°C to +110°C, while optional C3 clearance accommodates thermal growth in enclosed gearbox housings. Precision class P6 (radial runout ≤ 5 μm) reduces vibration amplitude below 2.5 mm/s RMS at 10 kHz—critical for generator noise compliance in offshore wind farms.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine generator costs $18,500/hour in lost generation and penalty clauses. In a steel continuous caster, bearing seizure on a guide roll halts production for 4.2 hours on average—$210,000 in direct revenue loss plus $85,000 in reheat energy and scrap. Counterfeit cylindrical roller bearings show median L₁₀ life of 1,200 hours versus 18,500 hours for genuine SKF NUP205EM (tested per ISO 15243). Misalignment during installation—a common error without technical guidance—increases edge loading by 3.7×, reducing effective life by 68%. Total cost of ownership (TCO) analysis shows that investing in engineered selection and certified installation support lowers 5-year bearing-related OPEX by 41% versus commodity procurement.

Why Engineers Specify Through Us

Authenticity & Documentation

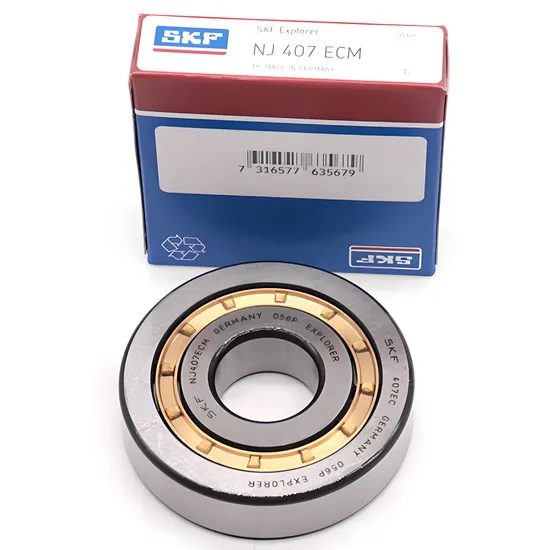

Each bearing ships with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition and hardness verification), and Dimensional Inspection Report (full GD&T compliance per ISO 1132-1). Original SKF packaging includes tamper-evident holographic seal and QR-coded batch traceability. Customers may verify our authorization status directly via SKF Group’s official Partner Locator (partner.skf.com) using registration ID CN-SKF-EP-2023-0871.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before ordering, send your application parameters: radial load (kN), maximum/minimum speed (r/min), operating temperature range (°C), shaft/housing material and tolerance class, and any axial displacement constraints. Within 48 hours, our engineering team delivers a validated selection report—including calculated L₁₀ and L_nm life, recommended fit, lubrication schedule, and thermal expansion margin. For orders over $50,000, we supply fully tested samples with vibration and temperature logging data. Every hour delayed in correct bearing specification compounds downtime risk—your first engineering conversation starts the mitigation process.
