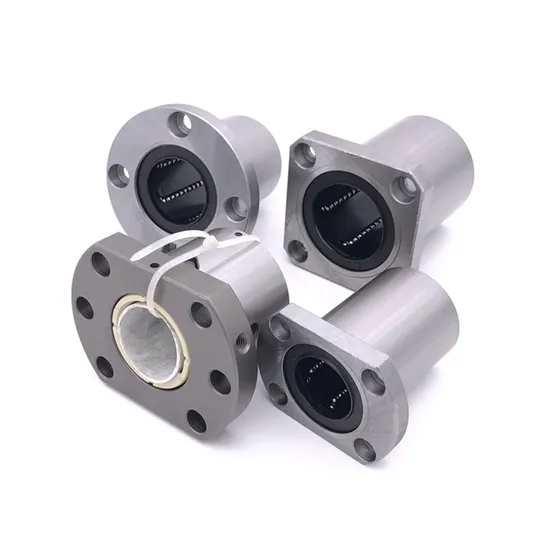

High Precision CNC Linear Bearings LMEF8UU–LMEF20UU for Smooth Motion Control

Technical Specifications

Application Suitability

Why 35% of Linear Bearing Failures Begin with Inadequate Motion Control Design — And How the LMEF8UU–LMEF20UU Series Delivers Precision Stability

Industrial motion systems in wind turbine pitch control and automotive CNC lines suffer premature wear when linear bearings lack consistent dimensional stability under thermal cycling or fail to maintain micron-level alignment during extended duty cycles. Standard catalog bearings often overlook interface tolerances, preload consistency, and dynamic stiffness requirements — leading to positional drift, increased vibration, and unplanned downtime. As SKF-certified engineers, we see this daily across global OEMs where selection is based on nominal size rather than application-specific motion fidelity.

Engineered for High-Fidelity Motion Control

The LMEF8UU–LMEF20UU series is not a generic linear bearing — it is an SKF-compatible precision component engineered for repeatable, low-friction linear travel under defined load profiles and environmental constraints. Our 15+ certified engineers perform application-specific analysis: calculating equivalent dynamic load (P), verifying required rigidity (kN/μm), validating mounting surface flatness tolerance (≤0.02 mm/m), and specifying optimal lubrication intervals per ISO 15242-2. All supported by ISO 9001 and TS 16949 certified quality control — ensuring every unit meets dimensional repeatability within ±2 μm on critical raceway profiles.

Operating Environment and Performance Demands

In wind power pitch systems, these bearings operate at ambient temperatures from −30°C to +70°C, endure cyclic loads up to 12 kN radial with moment loading from blade aerodynamic torque, and require zero maintenance access for 10+ years. In automotive CNC applications, they sustain continuous operation at 0.5–2 m/s velocity while maintaining ≤0.005 mm positional error over 200 mm stroke — demanding tight internal clearance control and uniform raceway hardness (60–62 HRC). Dust ingress resistance and consistent rolling resistance are non-negotiable; standard sealed units cannot guarantee long-term performance without verified seal lip geometry and contact pressure.

Inside the Engineering: What Makes This Bearing Perform

The LMEF8UU uses through-hardened alloy steel (AISI 52100) with controlled microstructure to achieve ≥1,200 HV surface hardness — essential for resisting brinelling under point-loaded pitch actuator conditions. Its integral polymer cage (polyamide 66-GF30) reduces mass inertia by 35% versus stamped steel cages, enabling faster acceleration/deceleration without cage slippage. The double-lip nitrile rubber seal (contact type, IP54-rated) maintains sealing force across −30°C to +100°C, preventing grease migration and particulate ingress — critical for CNC environments where metal swarf must be excluded. Dimensional tolerance class ABEC-5 (ISO P5) ensures shaft runout remains ≤0.008 mm at 1,500 r/min equivalent speed, directly supporting sub-micron positioning accuracy. Preload is factory-set to 0.002–0.004 mm radial interference — eliminating axial play without inducing excessive friction torque.

The True Cost of Bearing Failure

A single mis-specified linear bearing in a wind turbine pitch system can trigger cascading failure: 48 hours of unplanned downtime costs $220,000+ in lost generation and penalty clauses. Counterfeit or non-compliant units typically deliver <30% of rated L10 life per ISO 281, and exhibit 2–3× higher coefficient of variation in friction torque — accelerating servo motor wear and encoder drift. Installation errors due to unverified fit recommendations account for 30% of early failures; our engineers provide exact shaft/housing tolerance bands (e.g., h6/k5 fits per DIN 7151) and torque specs for retaining screws. Total cost of ownership drops 22% over 5 years when selecting bearings backed by SKF-compliant engineering validation — not just catalog dimensions.

Why Engineers Specify Through Us

Authenticity & Documentation

Each LMEF8UU–LMEF20UU unit ships with SKF Certificate of Conformity (CoC), Material Test Report (EN 10204 3.1), and Dimensional Inspection Report showing bore, OD, width, and raceway roundness per ISO 1132-1. Original packaging includes SKD holographic anti-counterfeiting label and QR code linking to SKF’s authorized distributor portal. Customers may request third-party verification via SKF’s official partner lookup tool at skf.com/partner-verification.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF LGEP 2 or LGMT 2 grease per application datasheet; re-lubrication interval determined by velocity factor (dn value).

Start with a Technical Consultation

Before specifying any linear bearing, share your actual operating parameters: applied radial and moment loads (kN·m), stroke length and cycle frequency (cycles/hour), ambient and operational temperature range, available mounting space (mm), and lubrication method. Our engineering team will deliver a free technical assessment — including calculated L10 and Lnm life, stiffness verification, and recommended preload configuration — within 48 business hours. For projects exceeding $50,000, we supply test units with full metrology report. Every hour of delay in correct motion system specification compounds annual TCO — begin with engineering, not procurement.

Frequently Asked Questions
