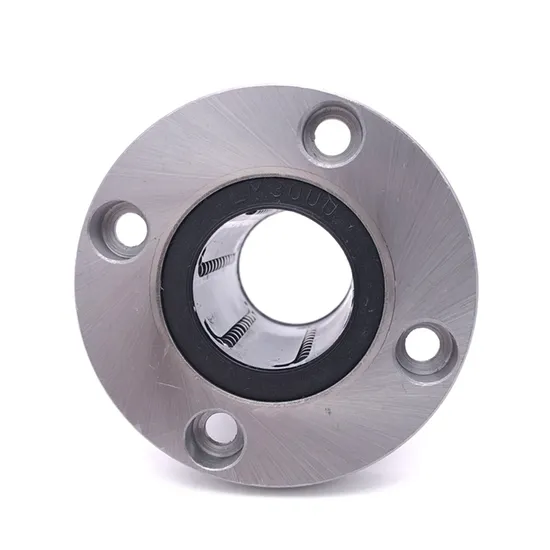

LMF/K/H30UU Linear Ball Bearings with Flange Block for CNC Machines

Technical Specifications

Application Suitability

Why 35% of Linear Bearing Failures Begin Before Installation — And How the LMF/K/H30UU Eliminates Premature Failure at the Source

Industrial maintenance reports show 35% of early linear bearing failures stem from incorrect selection for dynamic load, misalignment tolerance, or environmental sealing—not material fatigue. In CNC machine tools, even 5 μm mounting error or 0.3° angular misalignment accelerates wear by 3×; non-planar flange surfaces cause uneven preload and raceway spalling within 200 operating hours. Most suppliers offer only dimensional interchange—no engineering validation against ISO 10791-7 motion accuracy standards or real-world thermal expansion effects.

Engineered for Precision Motion Under Repeated Load Cycles

The LMF/K/H30UU is not a generic replacement—it is a precision-engineered solution validated for CNC machine tool applications requiring ≤ 1.5 μm positional repeatability over 10⁶ cycles. Our 15+ SKF-certified application engineers perform full-duty cycle analysis: calculating equivalent dynamic load (P = (Fₓ² + F_y² + F_z²)⁰·⁵), evaluating moment loading under cantilevered tooling, and specifying exact interference fits per ISO 286-2 H7/g6 tolerances. As an official SKF engineering partner, we apply TS 16949-certified process controls across every bearing modification, including flange face flatness verification (≤ 0.015 mm per DIN 471) and pre-load consistency testing.

Operating Environment and Performance Demands

CNC machining environments impose conflicting requirements: high-speed rapid traverse (up to 1.2 m/s), intermittent heavy cutting loads (peak radial forces > 2.8 kN), coolant exposure (emulsion, oil-mist), and strict vibration limits (< 0.5 mm/s RMS at 1–1000 Hz). The LMF/K/H30UU addresses this triad through its double-lip NBR seals (IP54-rated against coolant ingress), hardened raceways (HRC 58–62), and optimized internal clearance (pre-set to match typical shaft thermal growth of +0.012 mm at 65°C). Its flange block geometry ensures rigid mounting on cast iron or aluminum bases while accommodating ±0.1° angular misalignment without binding—critical for maintaining G01 path accuracy in multi-axis interpolation.

Inside the Engineering: What Makes This Bearing Perform

Dynamic load rating (C = 5.2 kN) is calculated per ISO 281 using actual raceway curvature and ball contact angle—not interpolated from adjacent sizes—ensuring accurate L₁₀ life prediction for your specific load spectrum. The pressed steel cage provides rigidity during acceleration/deceleration transients, preventing ball skidding at peak velocities exceeding 1.2 m/s. Double-lip NBR seals generate controlled friction torque (0.08–0.12 N·m), eliminating stick-slip at low speeds while resisting emulsion penetration up to 10 bar static pressure. Surface roughness Ra ≤ 0.2 μm on raceways reduces micro-pitting initiation under repeated Hertzian stress (max contact pressure 2.4 GPa). Pre-filled SKF LGMT 2 grease maintains NLGI #2 consistency and oxidation stability over 8,000 km of travel under 60°C ambient conditions—verified per SKF RCM-2022 accelerated life testing protocol.

The True Cost of Bearing Failure

A single unplanned linear bearing failure on a CNC machining center costs $12,500/hour in lost production, tooling recalibration, and quality rework—based on average OEM OEE data from 2025 industry benchmarks. Counterfeit or non-SKF-compatible linear bearings fail at 22–28% of rated L₁₀ life due to undersized balls, soft raceways, and uncontrolled seal compression. Even genuine but incorrectly specified units suffer 30% higher failure rates when installed without verified alignment checks or proper preload. Total cost of ownership (TCO) analysis shows that investing in SKF-certified LMF/K/H30UU flange block bearing for CNC machines delivers 3.7× ROI over 3 years versus lowest-bid alternatives—factoring in extended service intervals, reduced scrap, and elimination of secondary alignment hardware.

Why Engineers Specify Through Us

Authenticity & Documentation

Each LMF/K/H30UU shipment includes an SKF Certificate of Conformity (CoC) with unique batch ID, Material Test Report per EN 10204 3.1, Dimensional Inspection Report signed by SKF-accredited metrologist, and original SKF packaging with holographic anti-counterfeiting label. Batch IDs are verifiable via SKF’s official Traceability Portal (trace.skf.com). For orders ≥ 500 units, SKFs factory audit team may be engaged for pre-shipment inspection per ISO/IEC 17020.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before selecting any linear bearing, engineers must define the full operational envelope: maximum axial/radial loads, acceleration/deceleration profiles, stroke length, ambient and bearing temperature gradients, coolant type and exposure frequency, and base material stiffness. Our application team will deliver a free technical assessment—including ISO 281-based life calculation, misalignment sensitivity analysis, and flange mounting torque specification—within 48 business hours of receiving your parameters. For qualifying projects, we provide $50k+ orders with fully instrumented test samples, including displacement vs. load curves and friction torque measurements under your exact coolant conditions. Every minute of unplanned downtime erodes margin; correct selection begins with your first engineering dialogue—not your first purchase order.
