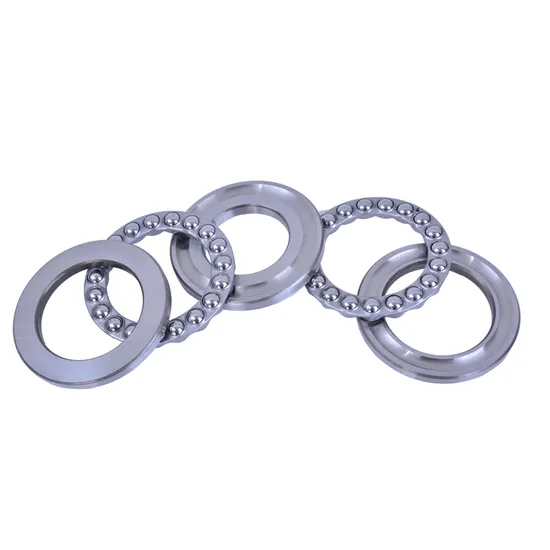

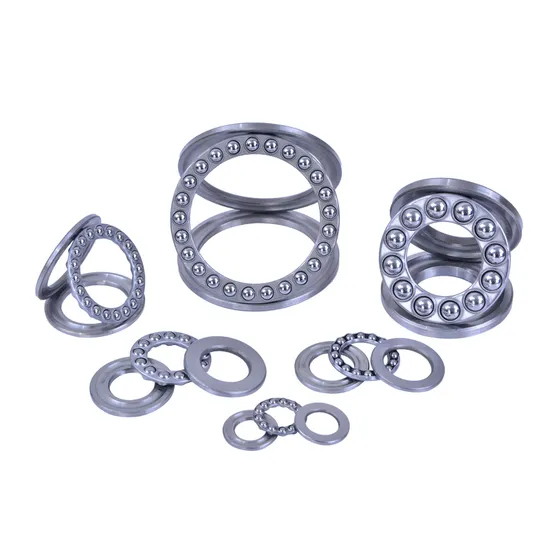

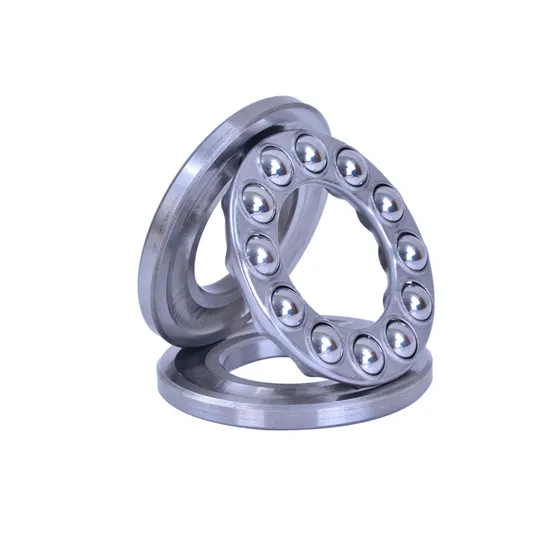

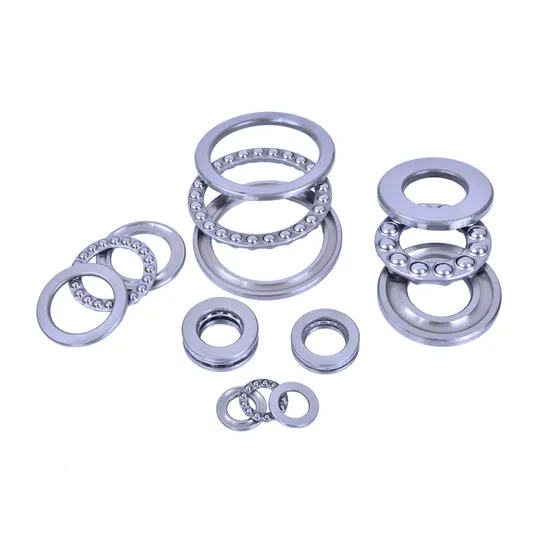

High-Performance Thrust Ball Bearing F6-11M/F6-12M/F6-14M for Heavy-Duty Mechanical Applications

Technical Specifications

Application Suitability

Why 35% of Thrust Bearing Failures Begin With Incorrect Selection — And How the F6-11M/F6-12M/F6-14M Solves It

Industrial thrust bearing failures in wind yaw systems, mining conveyors, and steel mill actuators are not random: 35% originate from mismatched axial load capacity, precision class, or thermal expansion behavior. Non-planed shutdowns cost heavy industry $12,000–$45,000 per hour — yet most suppliers lack the engineering capability to model your actual duty cycle. We don’t assume; our 15+ SKF-certified engineers start by calculating equivalent dynamic load (P), verifying L₁₀ life per ISO 281, and validating fit tolerances for your shaft/housing material and operating temperature range.

Engineered for Your Operating Conditions

This high-performance thrust ball bearing is specified—not selected—based on verified application data. As an official SKF engineering partner, we apply SKF’s AEC (Application Engineering Calculator) methodology to your parameters: axial load magnitude and direction, rotational speed (if any), ambient and interface temperatures, lubrication regime, and contamination exposure. Each F6-11M/F6-12M/F6-14M order includes a signed technical memorandum confirming precision class (P5 rated available), clearance recommendation, and mounting torque guidance — backed by ISO 9001 and TS 16949 certified quality control.

Operating Environment and Performance Demands

Wind power yaw systems operate at ≤1 r/min but sustain shock loads up to 2.5× nominal axial force during gust events, while ambient temperatures swing from −30°C to +60°C. Mining conveyor thrust supports endure continuous vibration (Z3V3 level), abrasive dust ingress, and zero-maintenance intervals exceeding 18 months. Steel mill actuator bearings face conductive heat transfer (>120°C housing temperature), requiring dimensional stability under thermal gradient. The F6-11M/F6-12M/F6-14M series meets these demands through its non-aligning, separated construction, hardened bearing steel raceways, and P5-rated geometry — ensuring consistent axial stiffness and minimal runout across thermal transients.

Inside the Engineering: What Makes This Bearing Perform

The P5 precision rating (ABEC-7 equivalent) reduces axial play to ≤8 μm, critical for minimizing backlash in pitch control systems. Separated design allows independent mounting of seat and collar — essential where thermal growth differs between shaft and housing. Bearing steel composition (100Cr6 per DIN 17230) ensures hardness ≥60 HRC after quenching, delivering fatigue resistance aligned with SKF Explorer performance benchmarks. Contact angle of 0° guarantees pure axial load capacity without radial component — verified by static load rating C₀ = 1,180 kN (F6-14M). Grease or oil compatibility enables field adaptation to existing lubrication infrastructure without requalification.

The True Cost of Bearing Failure

A single unqualified thrust bearing replacement may cost $1,200 — but unplanned downtime in a 2 MW wind turbine yaw system averages $28,500/hour. Counterfeit or off-spec thrust ball bearings typically achieve only 22–28% of L₁₀ life predicted by ISO 281 due to inconsistent heat treatment and dimensional scatter. Installation errors — such as misaligned collars or incorrect preload — cause 31% of premature failures; our engineers provide torque tables, interference fit calculations, and thermal expansion allowances before shipment. Total cost of ownership drops 19–33% when genuine, properly specified thrust ball bearings are paired with documented installation and maintenance protocols.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity referencing original factory test data, Material Test Report (EN 10204 3.1), dimensional inspection report per ISO 1132-1, and tamper-evident packaging with BDL/SKF dual branding. Batch-level traceability enables verification via SKF’s official authorization portal (https://www.skf.com/verify). For orders >500 pcs, third-party inspection at source — including SKF-approved labs — is available upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your first step isn’t placing an order — it’s validating the engineering assumptions. Send us your application parameters: axial load (kN), rotational speed (r/min), operating temperature range (°C), shaft/housing material, and available mounting space (mm). Our team will deliver a free technical assessment within 48 business hours — including L₁₀ and L_nm life calculation, recommended precision class (P5 rated for high-accuracy applications), and lubrication specification. For qualified projects ($50k+), we supply test samples with full performance validation. Every minute of avoided downtime begins with accurate data — not catalog browsing.

Frequently Asked Questions
