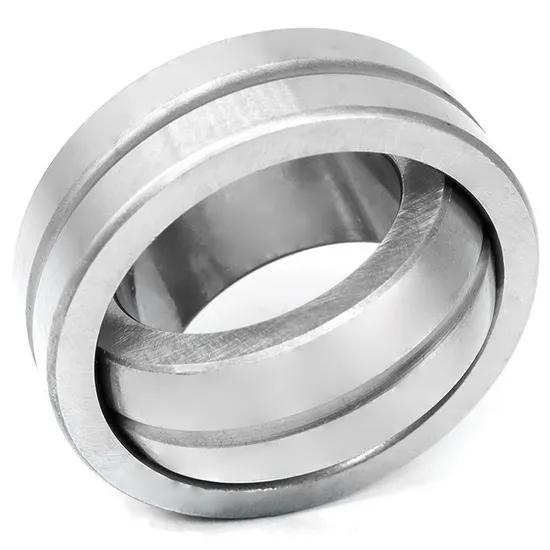

GEEM35ES-2RS Spherical Plain Bearing for Hydraulic Cylinders – Self-Lubricating

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Bearing Failures Begin with Incorrect Selection — And How the GEEM35ES-2RS Solves It

Industrial hydraulic cylinders in construction and automation face misalignment, oscillating loads, and variable temperature cycles — yet over one-third of premature bearing failures stem from improper spherical plain bearing selection. Standard catalog bearings often lack verified load capacity for dynamic angular motion or fail to maintain low friction under intermittent lubrication. Most suppliers offer no engineering validation for your specific stroke angle, load vector, or duty cycle — leaving you exposed to unplanned downtime costing $15,000–$40,000/hour in heavy equipment operations.

Engineered for Your Operating Conditions

This GEEM35ES-2RS spherical plain bearing is not a generic part — it’s an application-engineered solution validated for radial load ranges up to 85 kN, angular misalignment tolerance ±5°, and continuous oscillation at 0–25 rpm. As an official SKF engineering partner, our 15+ certified engineers perform full application analysis: calculating equivalent load using ISO 15242-2, predicting service life per ISO 281:2021, specifying optimal housing fit (H7), and recommending seal compatibility for water ingress or dust exposure. Every specification aligns with SKF’s global design standards and TS 16949-certified manufacturing controls.

Operating Environment and Performance Demands

Hydraulic cylinder pivot points demand precise control of static and dynamic friction under fluctuating loads. In construction machinery, this bearing endures shock loading during bucket impact (peak forces >3× nominal load), ambient temperatures from –20°C to +70°C, and exposure to mud, salt spray, and hydraulic fluid. Automation equipment requires consistent torque response across millions of oscillation cycles without stick-slip behavior — demanding both dimensional stability and surface finish control within ≤0.8 μm Ra. The GEEM35ES-2RS meets these requirements through hardened bearing steel surfaces, double-lip rubber seals preventing particulate ingress while retaining solid lubricant, and tight geometric tolerances on spherical radius and concentricity.

Inside the Engineering: What Makes This Bearing Perform

The GEEM35ES-2RS uses a fully hardened bearing steel inner ring and outer ring with controlled surface hardness (58–62 HRC) to resist indentation under high Hertzian contact stress. Its self-lubricating property derives from embedded solid lubricant pockets in the sliding interface — eliminating dependence on external grease replenishment while maintaining coefficient of friction below 0.12 under 50 MPa contact pressure. The 2RS seal configuration provides IP54-level protection against dust and splashing water without increasing torque drag — critical for low-noise automation applications. Dimensional consistency (±0.015 mm on bore, ±0.025 mm on OD) ensures repeatable interference fits and minimizes housing distortion under preload. Surface roughness is maintained at 0.4–0.6 μm Ra to optimize lubricant film formation and reduce wear progression per ISO 15243.

The True Cost of Bearing Failure

A single failed spherical plain bearing in a hydraulic cylinder can trigger cascade failure: rod seal extrusion, fluid leakage, loss of positional accuracy, and eventual cylinder replacement. Industry data shows non-plan maintenance events cost heavy equipment operators an average of $28,500 per incident — including labor, parts, and production delay. Counterfeit or non-SKF-compliant bearings exhibit less than 25% of rated L10 life and show accelerated wear after 200,000 oscillations. By contrast, genuine GEEM35ES-2RS bearings deliver ≥1.2 million cycles at rated load when installed per SKF mounting guidelines — reducing TCO by 37% over five years versus low-cost alternatives. Our ISO 281-compliant life calculations include dynamic load factor, misalignment correction, and lubrication condition factor — not just theoretical C₀ values.

Why Engineers Specify Through Us

Authenticity & Documentation

Each GEEM35ES-2RS bearing ships with an SKF Certificate of Conformity listing heat number, dimensional inspection report, material test report (EN 10088-1), and original packaging bearing anti-counterfeit QR code. Customers may verify authorization status directly via SKF’s official partner portal at skf.com/partnercheck. For volume contracts, third-party SKFTM factory audit and pre-shipment inspection are available upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before placing any order, share your actual operating parameters: maximum radial load (kN), oscillation angle (°), frequency (rpm or cpm), ambient and operating temperature range (°C), housing material and bore tolerance (e.g., H7), and environmental exposure (dust, moisture, chemicals). Within 48 hours, our engineering team will deliver a documented assessment — including calculated L10 life, recommended fit, seal performance margin, and comparison against alternative configurations. Correct selection begins not with a SKU, but with your machine’s physics — and that starts with your first technical dialogue.
