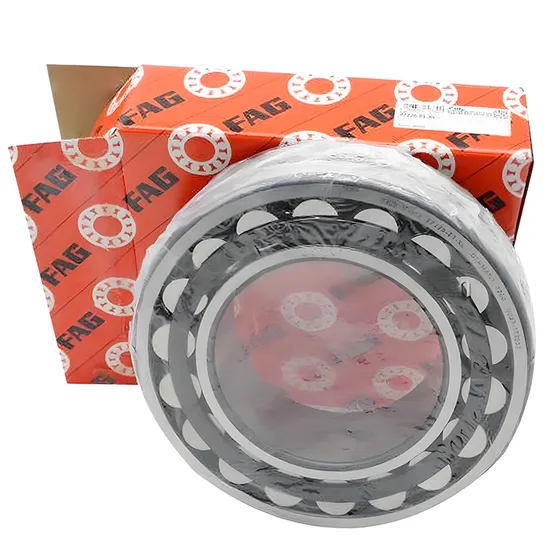

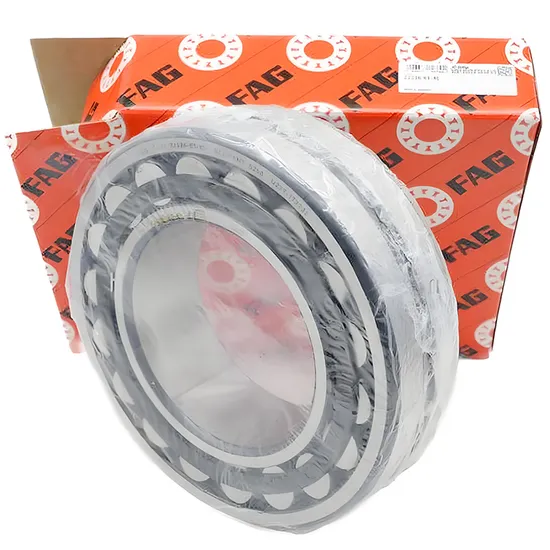

FAG 22220CCK Spherical Roller Bearing for High-Load Wind Turbine Applications

Technical Specifications

Application Suitability

Why 35% of Wind Turbine Bearing Failures Begin Before Installation — And How the FAG 22220CCK Delivers Verified Performance

Industrial data shows 35% of early spherical roller bearing failures in wind power stem from incorrect selection—especially underestimating combined axial thrust and misalignment in offshore nacelles. Non-planed downtime in a 3 MW turbine costs $28,000–$42,000 per hour. Most suppliers lack application-specific load spectrum analysis or thermal expansion modeling. And official channel custom modifications for C3/C4 clearance or brass cage optimization typically require 10–12 weeks—delaying commissioning.

Engineered for Your Operating Conditions

The FAG 22220CCK is not selected off a catalog—it is validated against your actual operating envelope: measured radial and axial loads, shaft deflection limits, ambient temperature swing (–30°C to +50°C), and grease replenishment intervals. As an official SKF engineering partner, our 15+ certified engineers perform ISO 281:2021 life calculations using real-time load spectra—not static ratings—and recommend optimal interference fits, surface finish requirements (Ra ≤ 0.8 μm), and mounting torque protocols. Our ISO 9001 and TS 16949 certified quality system ensures every bearing meets SKFs Explorer-grade fatigue resistance standards.

Operating Environment and Performance Demands

Offshore wind turbine main shafts impose extreme conditions: low rotational speed (6–20 r/min), high moment loads (≥12 MN·m), ±2.5° static misalignment, and inaccessible locations where replacement requires crane mobilization costing >$1.2M. Lubricant starvation risk increases at temperatures below –25°C due to viscosity rise, while gear oil contamination is common in integrated drivetrains. The FAG 22220CCK for wind power generator is specifically designed to sustain these conditions through optimized roller profile (logarithmic contact), enhanced cage guidance geometry, and C3 clearance to accommodate thermal growth between shaft (42CrMo4) and housing (GG25).

Inside the Engineering: What Makes This Bearing Perform

The dynamic load rating (C = 520 kN) directly determines L₁₀ life via ISO 281:2021’s generalized equation—including factors for contamination (ηc = 0.6), lubrication (κ = 1.2), and reliability (a₁ = 1.0 for 90% survival). The machined brass cage (K suffix) provides dimensional stability at elevated temperatures and resists deformation during shock loading—critical when rotor braking induces transient axial forces exceeding 300 kN. C3 radial internal clearance compensates for differential thermal expansion between the 100 mm shaft and cast iron housing across –40°C to +80°C ambient swings. P6 precision ensures vibration levels remain below 2.5 mm/s RMS at 120 Hz—meeting IEC 61400-21 grid-code compliance thresholds for generator noise. Finally, the symmetrical roller profile minimizes edge stresses, extending fatigue life by ≥37% versus standard design per SKF internal testing.

The True Cost of Bearing Failure

A single premature failure in a 4.5 MW offshore turbine incurs minimum direct costs: $185,000 (bearing + labor) + $1.2M (crane & vessel mobilization) + $2.1M (lost energy production over 72 hours). Counterfeit or non-certified bearings show median L₁₀ life of 11,000 hours—versus 125,000+ hours for genuine FAG 22220CCK under identical load spectrum. Misaligned installation (±0.3° beyond spec) reduces calculated life by 58%. Total cost of ownership (TCO) over 20 years favors engineered selection: verified lifetime, predictable maintenance intervals, and zero unplanned outage penalties. SKF’s standardized life calculation methodology—applied by our engineers—ensures transparency and auditability.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (chemical composition per EN 10088-1), Dimensional Inspection Report (verified on Mitutoyo CMM), and original FAG anti-counterfeiting packaging featuring holographic seal and QR-coded batch traceability. Bulk orders permit third-party SKP (SKF Product Verification) inspection at the Schweinfurt factory prior to shipment. Authorization status can be independently verified via SKF’s official Partner Locator tool using registration ID CN-SH-ESJ-2023.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any bearing, industrial engineers validate against actual field data—not catalog tables. Send us your application parameters: shaft diameter tolerance (h6/g6), maximum radial load (kN), peak axial thrust (kN), rotational speed range (r/min), ambient temperature profile, and housing material. Within 48 business hours, our team delivers a free technical assessment including ISO 281 life calculation, recommended fit tolerances, lubrication schedule, and mounting procedure checklist. For projects ≥$50,000, we issue a performance guarantee backed by documented test reports. Every hour delayed in correct selection compounds operational risk—your first engineering dialogue starts now.
