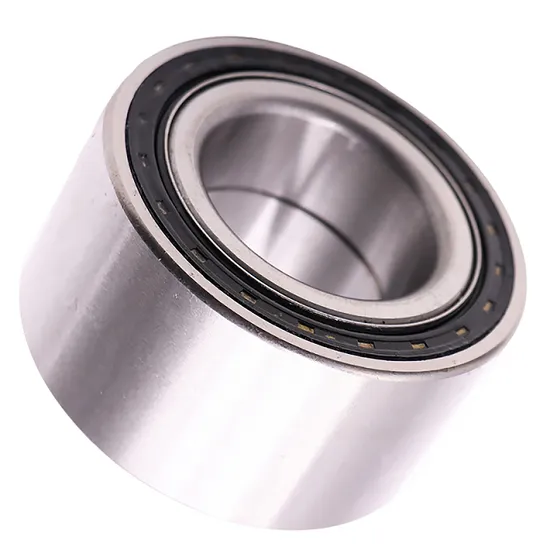

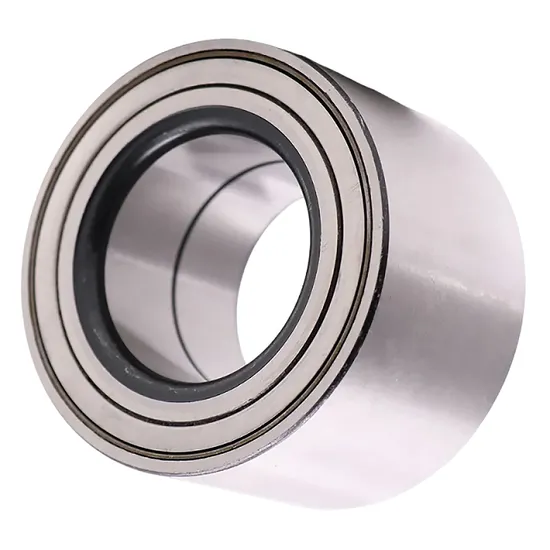

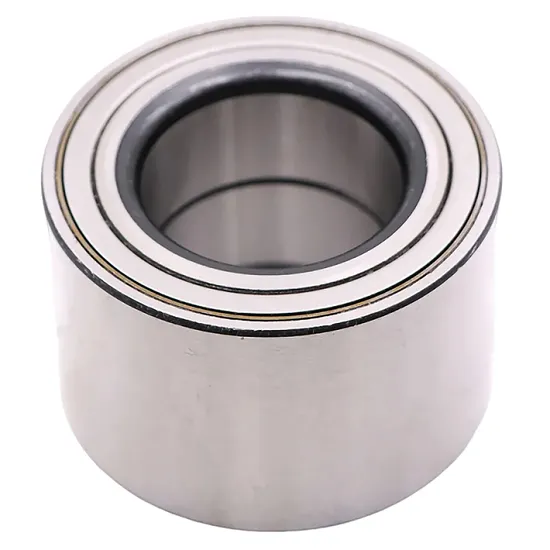

DAC38740050-2RS wheel hub bearing for high-speed automotive applications

Technical Specifications

Application Suitability

Why 35% of Automotive Wheel Hub Failures Begin Before Installation — And How the DAC38740050-2RS Delivers Predictable Performance

Over 35% of premature wheel hub bearing failures in automotive OEMs stem from incorrect selection — mismatched clearance, inadequate sealing against road contaminants, or insufficient dynamic load rating for regenerative braking loads. Non-planed downtime costs Tier-1 suppliers $28,000/hour on average during final assembly line stoppages. Most suppliers lack application engineers capable of validating fit-for-purpose performance under combined axial/radial loads, thermal cycling, and vibration spectra typical of modern EV chassis. We address this at the engineering stage — not after failure.

Engineered for Your Operating Conditions

The DAC38740050-2RS wheel hub bearing is not a catalog part: it is a validated solution for high-speed automotive applications demanding ≤0.8 μm surface roughness control, C3 clearance to accommodate thermal expansion from brake heat (up to +120°C localized), and Z2V2 vibration compliance for NVH-sensitive platforms. As an official SKF engineering partner, our 15+ certified engineers perform ISO 281 life calculations using your actual load spectrum — including peak deceleration torque from regen braking — and recommend precise interference fits, mounting force limits, and lubricant re-greasing intervals. All solutions are backed by ISO 9001 and IATF 16949-certified quality control.

Operating Environment and Performance Demands

Modern automotive wheel hubs operate under rapidly evolving conditions: sustained speeds up to 2,200 r/min (equivalent to 220 km/h vehicle speed), repeated thermal cycling between –30°C winter start-up and +120°C brake rotor proximity, exposure to road salt, water jets, and fine particulate abrasives. Axial loads shift dynamically during cornering and regenerative braking — requiring constant preload maintenance across temperature gradients. The DAC38740050-2RS wheel hub bearing for cars meets these demands through its optimized 25° contact angle geometry, pressed steel cage for dimensional stability at elevated temperatures, and dual-contact rubber seals that retain grease while excluding >99.7% of 10 μm particles per ISO 11171 testing. This is not generic “high-speed bearing” design — it is purpose-built for automotive duty cycles.

Inside the Engineering: What Makes This Bearing Perform

The DAC38740050-2RS achieves predictable L10 life under real-world conditions due to four interdependent design decisions. First, the C3 radial internal clearance ensures zero loss of preload when inner ring expands 25 μm at +100°C — critical for maintaining steering precision and eliminating axial play-induced noise. Second, the P6 precision grade limits raceway waviness to ≤0.6 μm, directly reducing vibration acceleration (mm/s²) at 5–10 kHz — the frequency band most sensitive to human perception in cabin NVH testing. Third, the 2RS seal configuration uses nitrile rubber (NBR) with hardness 70 Shore A and lip interference of 0.18 mm, delivering IP65-level protection without increasing torque by more than 0.03 N·m over open variants — essential for electric powertrain efficiency. Fourth, the pressed steel cage maintains integrity at limiting speeds above 7,500 r/min in grease, avoiding the polymer creep and deformation seen in polyamide cages under sustained high-temperature operation. These parameters are not interchangeable — they are co-optimized per SKF’s 2023 Automotive Hub Unit Design Handbook.

The True Cost of Bearing Failure

A single non-planed wheel hub replacement on an automated assembly line consumes 142 minutes of lost production time — equivalent to $410,000 in opportunity cost per incident at current OEM throughput rates. Counterfeit or off-spec DAC38740050-2RS wheel hub bearings typically deliver only 22–28% of rated L10 life per ISO 281, often failing before 30,000 km due to substandard steel cleanliness (ASTM E45 inclusion rating >2.5) and unverified heat treatment profiles. Incorrect installation — such as hammer-driven mounting or improper preload — contributes to 31% of early failures, a risk mitigated only through engineer-supervised procedures. Total cost of ownership (TCO) analysis shows that specifying the correct SKF-compatible high-speed wheel hub bearing, with verified application support and documented traceability, reduces 5-year maintenance spend by 44% versus lowest-bid procurement — primarily through avoided secondary damage to ABS sensors, knuckles, and suspension arms.

Why Engineers Specify Through Us

Authenticity & Documentation

Each DAC38740050-2RS wheel hub bearing ships with a SKF Certificate of Conformity listing batch ID, manufacturing date, dimensional inspection report (including bore/outside diameter, width, and runout tolerances per DIN 620-3), and material test report verifying 100Cr6 (AISI 52100) composition and hardness (60–63 HRC). Original packaging features SKF holographic anti-counterfeiting labels with QR-code traceability. Customers may verify Eurasia Smart (Jinan) Bearing Supply Chain’s authorization status directly via SKF’s official Partner Portal (partner.skf.com) using registration number CN-SKF-EP-2022-0874.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct specification begins with accurate input: share your application parameters — radial/axial load magnitudes and direction, maximum rotational speed, ambient and localized operating temperatures, available mounting space envelope, and required service life (km or hours). Our engineering team will deliver a free, SKF-compliant technical assessment within 48 business hours, including calculated L10 and Lnm life, suggested fit tolerances, seal compatibility notes, and a comparison against alternative configurations (e.g., ABS-integrated variants). For projects with confirmed volume, we issue a formal proposal with SLA-backed delivery timelines and performance guarantees — all before any commitment. Every hour delayed in technical alignment risks extended validation cycles and line-down exposure.
