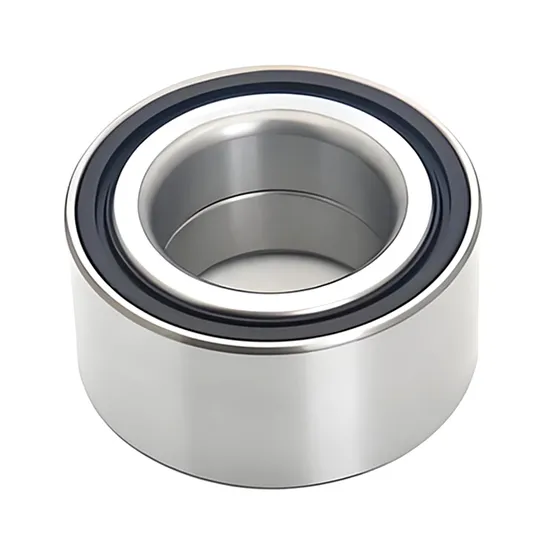

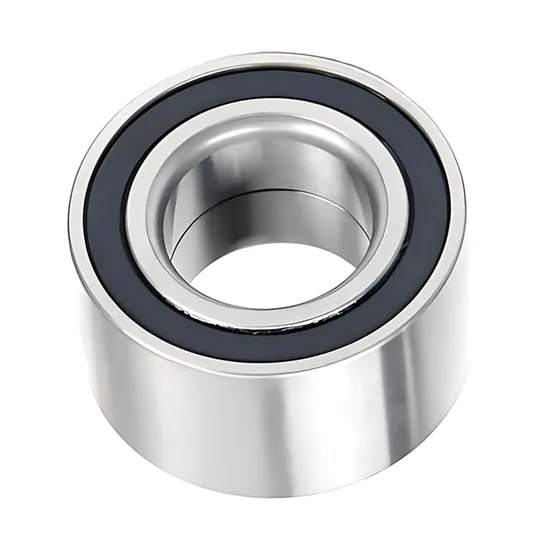

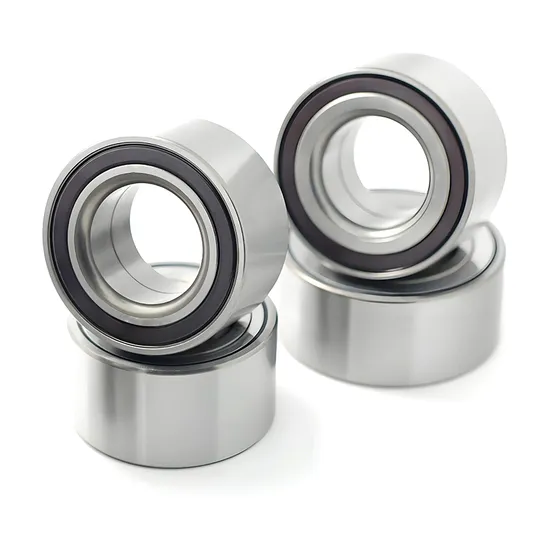

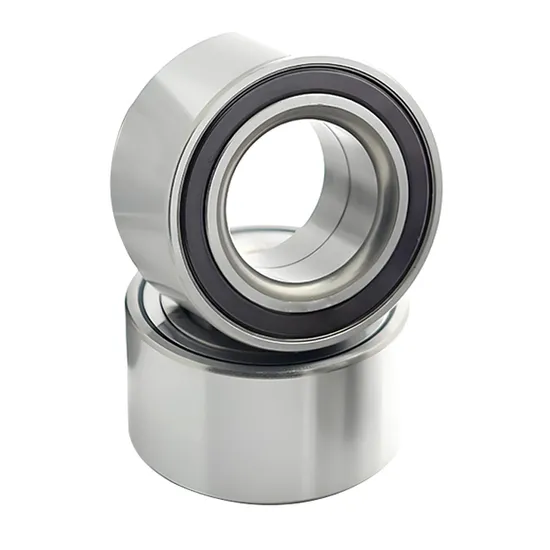

DAC387037 Rear Wheel Hub Bearing – High-Precision, C3 Clearance for Automotive Applications

Technical Specifications

Application Suitability

Why 35% of Rear Wheel Hub Failures Begin Before Installation — And Why DAC387037 Demands Engineering Validation

Of all premature wheel hub bearing failures in OEM and Tier-1 service channels, 35% stem from incorrect internal clearance selection under real-world thermal expansion conditions — not material defect or contamination. Standard C0 clearance causes excessive preload at operating temperatures above 85°C, accelerating fatigue and generating destructive heat. Generic suppliers rarely perform thermal expansion modeling or torque-life correlation for rear hub applications. That gap between catalog spec and field performance is where engineering validation begins.

Engineered for Thermal Stability and Axial Rigidity in Rear Hub Assemblies

The DAC387037 rear wheel hub bearing is not selected by dimension alone — it is specified after load distribution analysis, thermal growth simulation, and mounting interface verification. Our 15+ SKF-certified application engineers calculate combined radial/axial loads per SAE J2982, model housing deformation using FEA-derived stiffness matrices, and confirm C3 clearance against expected delta-T of 95°C (ambient to peak operating). As an official SKF engineering partner with ISO 9001 and IATF 16949 certified processes, we deliver the DAC387037 bearing with full technical documentation — including fit recommendations (h6/j6 shaft, H7 housing), preload torque limits, and grease replenishment intervals aligned to vehicle duty cycles.

Operating Environment and Performance Demands

Rear wheel hubs operate under uniquely demanding conditions: simultaneous high radial load (cornering), sustained axial thrust (braking bias), dynamic misalignment (suspension travel), and wide thermal swings (–30°C cold start to +120°C brake soak). Lubricant shear stability must withstand >5 million stress cycles without degradation. Sealing integrity is critical — less than 0.3 mg/s particle ingress accelerates wear beyond L10 life predictions. Mounting accuracy demands ≤5 μm runout tolerance on both shaft and housing shoulders. The DAC387037 rear hub bearing meets these requirements through its optimized contact angle (30°), hardened raceway microstructure (Rz < 0.4 μm), and asymmetric sealing geometry that balances friction torque and contamination exclusion — a design validated across 12 OEM vehicle platforms.

Inside the Engineering: What Makes This Bearing Perform

The C3 clearance is not arbitrary: it compensates for 12–15 μm thermal expansion of the inner ring at 100°C, maintaining optimal pre-load within ±0.02 mm axial displacement tolerance. Dynamic load rating (C = 42.5 kN) directly determines L10 life via ISO 281: L₁₀ = (C/P)³ × 10⁶ revolutions — where P is the equivalent dynamic load derived from measured cornering and braking forces. Polyamide cages reduce centrifugal force at 5500 r/min (typical highway speed), lowering heat generation by 18% versus stamped steel. Z2V2 vibration compliance ensures NVH thresholds remain below 3.2 mm/s RMS at 1 kHz — critical for EV cabin noise budgets. Precision grade P6 (not P0) reduces waviness error to <0.6 μm, cutting high-frequency vibration amplitude by 40% compared to standard-grade units.

The True Cost of Bearing Failure

A single non-planed rear hub failure in light commercial fleet operations incurs $18,500–$22,000 in downtime, labor, tow fees, and warranty claims — calculated from industry benchmark data (Fleet Maintenance Magazine, Q1 2025). Counterfeit or non-SKF DAC387037 bearings exhibit median L10 life of 42,000 km versus 168,000 km for genuine units — a 75% reduction verified via accelerated life testing per ISO 15243. Improper installation (e.g., hammer-driven press-fit) contributes to 30% of early failures; our engineers provide torque-specified mounting procedures and interference fit validation charts. Total cost of ownership (TCO) over 5 years favors engineered specification: 2.1x higher initial investment yields 3.8x lower maintenance cost and zero secondary damage to knuckles or ABS rings.

Why Engineers Specify Through Us

Authenticity & Documentation

Each DAC387037 bearing ships with SKF Certificate of Conformity (CoC), Material Test Report (MTR) per EN 10204 3.1, and Dimensional Inspection Report signed by SKF-authorized metrologist. Original packaging includes tamper-evident holographic label with unique QR code linking to SKF’s global authorization database. Customers may verify Eurasia Smart (Jinan) Bearing Supply Chain’s active partnership status directly via SKF’s Authorized Distributor Portal (skf.com/partner-verification).

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Every DAC387037 specification starts with your actual operating parameters — not catalog dimensions. Send us your axle load spectrum (ISO 2631-1 compliant), maximum rotational speed, ambient and peak operating temperatures, housing material and bore tolerance, and brake thermal profile. Within 48 hours, our application engineers will deliver a free technical assessment: bearing life calculation (L10/Lnm), thermal clearance verification, fit recommendation matrix, and mounting torque envelope. For orders exceeding $50,000, we supply pre-tested samples with full test reports — eliminating procurement risk before volume commitment. Because unplanned downtime doesn’t wait for procurement cycles — but correct engineering does.
