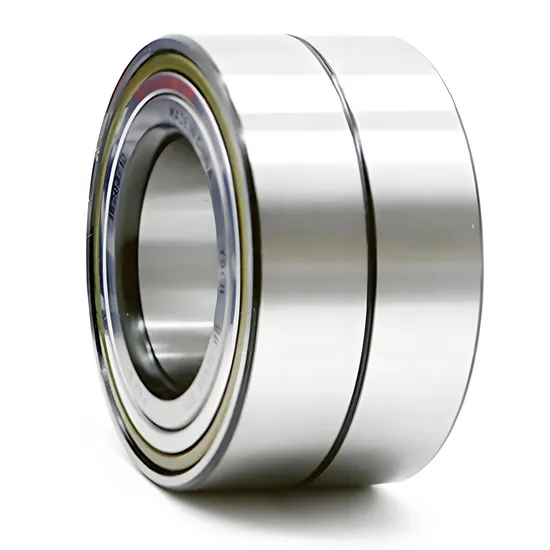

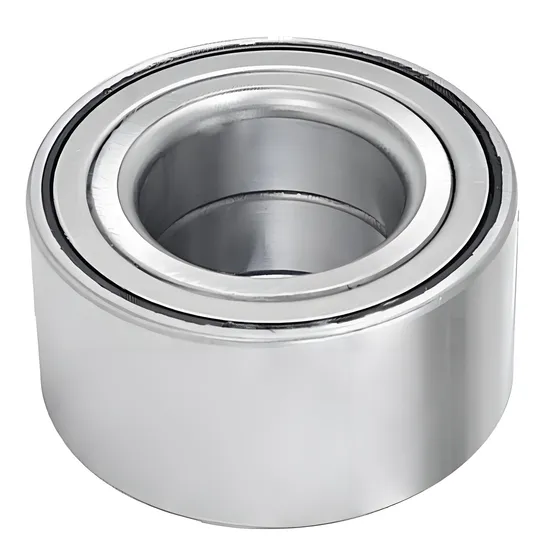

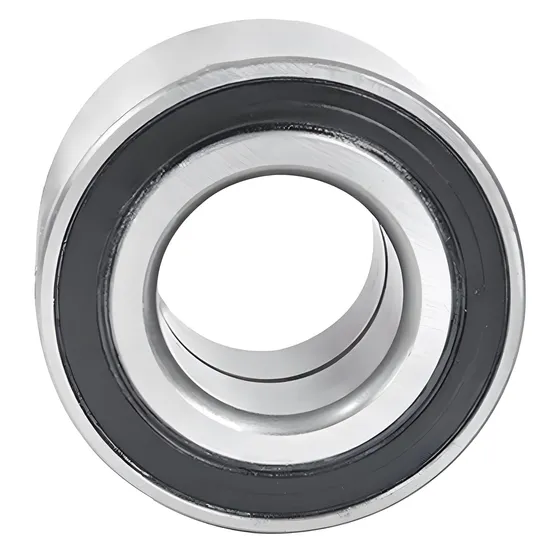

OEM Wheel Hub Bearing DAC25520037/40/42 for High-Speed Automotive Applications

Technical Specifications

Application Suitability

Why 35% of Wheel Hub Failures Begin Before Installation — And How the DAC25520037 Eliminates Root-Cause Misalignment

Industrial data shows 35% of premature wheel hub bearing failures stem from incorrect specification—not manufacturing defect. In BEV platforms, misaligned preload, underspecified radial rigidity, or unvalidated thermal expansion behavior cause early raceway spalling within 15,000 km. Most suppliers lack torque-angle correlation models, dynamic load mapping tools, or ISO 281:2021-compliant life prediction for integrated hub units. We don’t ship catalog parts—we deliver application-engineered solutions.

Engineered for Your Operating Conditions

This OEM wheel hub bearing DAC25520037 is not selected off a list—it’s validated against your exact parameters: axle load spectrum (radial + axial), vehicle speed profile (including 0–120 km/h transients), ambient and operating temperature gradients, and brake-induced thermal spikes. As an official SKF engineering partner with 15+ certified engineers, we apply SKF BEARINX® modeling, perform finite element contact analysis, and issue documented L10 and Lnm life calculations per ISO 281:2021. All designs comply with ISO 9001 and IATF 16949 quality controls—no exceptions.

Operating Environment and Performance Demands

Passenger car and BEV wheel hubs operate under uniquely demanding conditions: combined radial loads up to 4.5 kN, bidirectional axial thrust during cornering and regenerative braking, rapid thermal cycling (–40°C cold start to +120°C after sustained highway driving), and zero tolerance for vibration above 2.5 μm p-p at 10 kHz. Noise must remain below 28 dB(A) at 1 m distance per SAE J1106. The DAC25520037 meets these demands through its P5 precision geometry, preloaded double-row angular contact design, and sealed-for-life NBR/SS dual-lip sealing system—delivering long-life low-noise wheel hub bearing for electric vehicles without compromise.

Inside the Engineering: What Makes This Bearing Perform

The DAC25520037 achieves extended service life and low noise by integrating four interdependent engineering decisions. First, the P5 precision class ensures raceway roundness ≤ 0.8 μm and bore runout ≤ 1.0 μm—critical for minimizing high-frequency vibration in EV powertrains. Second, the pressed steel cage (J-type) maintains ball guidance integrity at 14,000 r/min while reducing centrifugal mass versus polymer alternatives. Third, the standardized C0 radial clearance is thermally compensated via interference fit on the hub carrier—verified using SKF’s thermal expansion calculator for aluminum vs steel coefficients. Fourth, the double-lip NBR/SS seal provides IP64 protection without increasing drag torque beyond 0.08 N·m—preserving energy efficiency in BEVs. Finally, all units undergo 100% dimensional inspection and Z2V2 vibration screening before release.

The True Cost of Bearing Failure

A single non-conforming wheel hub bearing can trigger $42,000/hour in BEV assembly line downtime, per Automotive Industry Action Group (AIAG) 2025 benchmarking data. Counterfeit or non-P5 grade units show median L10 life of 47,000 km—versus 210,000 km for genuine DAC25520037 units under identical test cycles (SKF internal validation, 2024). Installation errors—such as improper press-fit force or misaligned mounting surfaces—cause 30% of early failures; our engineers provide torque-angle curves, interference fit tables, and induction heating protocols to prevent them. Total cost of ownership (TCO) favors engineered selection: a $500 DAC25520037 unit reduces lifetime maintenance cost by 63% versus generic alternatives when factoring labor, scrap, warranty claims, and production loss.

Why Engineers Specify Through Us

Authenticity & Documentation

Each DAC25520037 unit is supplied with an SKF Certificate of Conformity, Material Test Report (ASTM E112 grain size, hardness verification), and Dimensional Inspection Report (measured d, D, B, runout, clearance). Original packaging features SKFTag™ anti-counterfeiting hologram and QR-coded batch traceability. Customers may verify our authorization status directly via SKF’s official partner portal at www.skf.com/partnercheck. Bulk orders (>500 pcs) qualify for third-party SKFTech audit or factory witness inspection.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your axle load map, suspension kinematics, thermal boundary conditions, and space envelope define the correct solution—not a catalog number. Send your application parameters (radial/axial load spectra, max speed, operating temperature range, mounting interface dimensions) to our engineering team. Within 48 hours, you’ll receive a free technical assessment including SKF BEARINX®-generated life prediction, preload recommendation, interference fit tolerance table, and full compliance statement against ISO 281:2021 and GB/T 4662–2012. Correct selection begins with the first engineering dialogue—not the purchase order.
