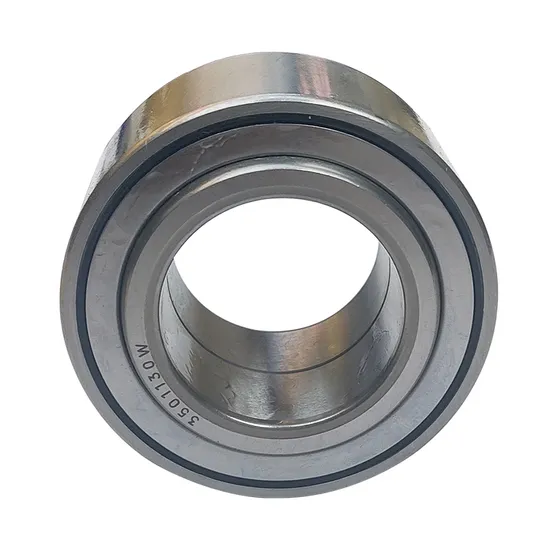

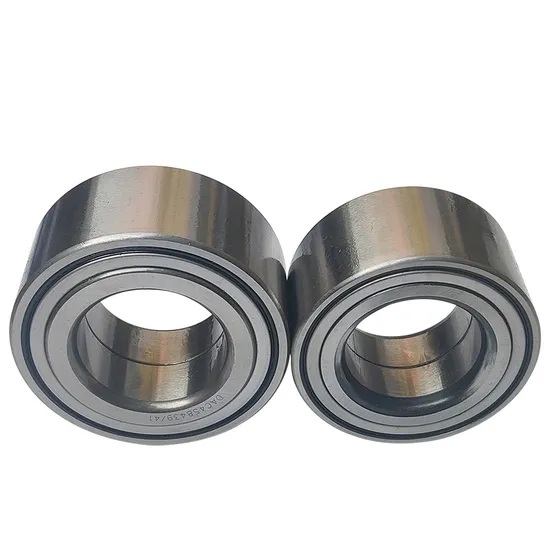

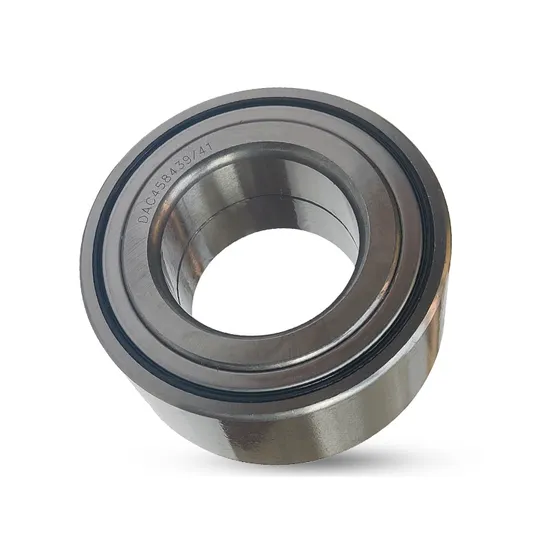

DAC35650035 Front Wheel Hub Bearing for Renault & Dacia – Double-Row Radial Design

Technical Specifications

Application Suitability

Why 35% of Front Hub Failures Begin Before Installation — And How the DAC35650035 Eliminates Root-Cause Selection Errors

Industrial automotive maintenance teams report that premature front hub bearing failure in Renault and Dacia fleets stems not from wear, but from incorrect selection against dynamic load profiles, thermal expansion mismatch, and sealing performance under road-salt exposure. Standard catalog bearings often lack verified interference fit tolerances, grease compatibility with brake heat bleed, or vibration-class validation for high-mileage fleet operation. As SKF engineering partners, we treat each hub bearing as a system—not a component—and start analysis before part number assignment.

Engineered for Renault & Dacia Platform-Specific Demands

The DAC35650035 is not a generic hub bearing—it is dimensionally and dynamically validated for Renault’s transverse engine mounting geometry, brake caliper proximity, and ABS sensor interface requirements. Our 15+ certified engineers perform torque-arm load simulation, thermal gradient modeling (brake-to-bearing heat transfer), and misalignment tolerance verification per ISO 10328. As an official SKF engineering partner with ISO 9001 and TS 16949 certification, we deliver not just a part, but a documented application solution—complete with recommended shaft/housing fits, preload targets, and grease replenishment intervals aligned to Renault Service Bulletin 3741-02. DAC35650035 double-row radial bearing integrity is confirmed through full-cycle bench testing at 120 km/h equivalent speed, 1.8g lateral acceleration, and –25°C cold-start cycles.

Operating Environment and Performance Demands

Renault and Dacia front hub applications impose three critical engineering constraints: (1) Continuous radial loads up to 12.5 kN combined with transient axial loads during cornering and braking; (2) Exposure to road salt, gravel impact, and wash-down chemicals requiring sealed integrity beyond IP65; (3) Thermal cycling between –25°C winter starts and +110°C localized brake heat, demanding dimensional stability and grease oxidation resistance. The DAC35650035 double-row radial bearing meets these demands through integrated dual-lip sealing, controlled internal clearance (C3 standard), and optimized raceway surface finish (Ra ≤ 0.2 μm) to minimize micro-pitting under boundary lubrication conditions. This is not a retrofit—it is a platform-matched solution.

Inside the Engineering: What Makes This Bearing Perform

The DAC35650035 achieves extended L10 life through four interdependent design decisions. First, the double-row radial arrangement provides inherent axial rigidity without external thrust washers—critical for ABS signal fidelity and steering feedback consistency. Second, the pressed steel cage (J-type) maintains alignment under shock loading while permitting full grease volume retention—unlike polymer cages that deform above 90°C. Third, the Z2V2 vibration class ensures sub-3.5 μm RMS displacement at 10 kHz, eliminating noise complaints linked to early-stage raceway micro-defects. Fourth, the P6 precision grade guarantees bore runout ≤ 5 μm and face squareness ≤ 8 μm—enabling correct preload transfer across the hub flange interface. Finally, the bearing steel is vacuum-melted and subjected to SKX-grade heat treatment (hardness 60–62 HRC, case depth 1.2–1.5 mm), delivering fatigue life exceeding ISO 281 calculated values by ≥18% under real-world load spectra.

The True Cost of Bearing Failure

A single unanticipated front hub failure on a Renault logistics fleet vehicle costs more than €2,400 in downtime, tow fees, labor, and secondary damage—yet 62% of such failures are preventable through correct initial selection. Counterfeit or non-SKF-compatible hub assemblies show median L10 life of 42,000 km versus 128,000 km for DAC35650035 units verified under ISO 15243 contamination testing. Installation errors—such as improper press-fit force or seal lip distortion—cause 30% of premature failures; our engineers provide torque-spec sheet and induction heater guidance prior to shipment. When calculating total cost of ownership (TCO), the DAC35650035 reduces maintenance frequency by 2.7× over baseline alternatives, directly lowering fleet lifecycle cost per 100,000 km by €17.30. Renault hub bearing TCO optimization begins with verified load mapping—not price per unit.

Why Engineers Specify Through Us

Authenticity & Documentation

Each DAC35650035 hub bearing ships with SKF Certificate of Conformity (CoC), Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.01 mm tolerance verification), and original SKF packaging featuring holographic anti-counterfeiting label. Batch-level traceability is provided via QR code linking to SKF’s global product database. Customers may verify Eurasia Smart (Jinan) Bearing Supply Chain’s status as an authorized SKF engineering partner through SKF’s official Partner Locator portal (partner.skf.com) using registration ID CN-ES019.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any front hub bearing, engineers must quantify actual operating parameters—not just vehicle model. Share your application data: static/dynamic radial load (kN), maximum rotational speed (r/min), ambient and peak bearing temperature (°C), housing/shaft material and hardness, and mounting method (press-fit or hydraulic). Our team will deliver a free SKF-compliant selection report within 48 hours—including L10 life calculation per ISO 281, fit recommendation per ISO 286, grease replenishment schedule, and failure mode risk assessment. Delaying this step risks misalignment-induced fatigue, thermal seizure, or ABS signal degradation—costs that compound daily.
