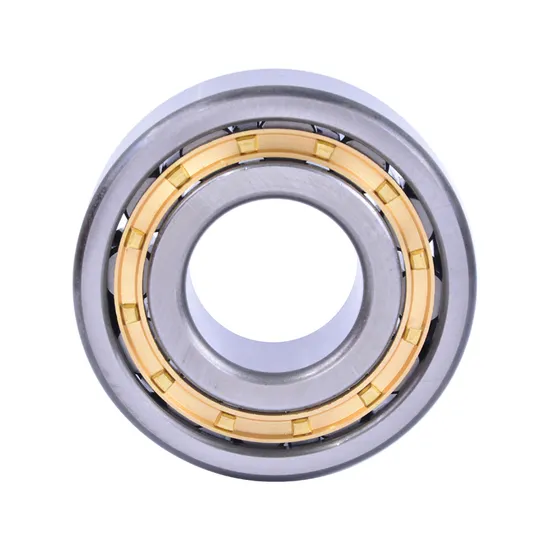

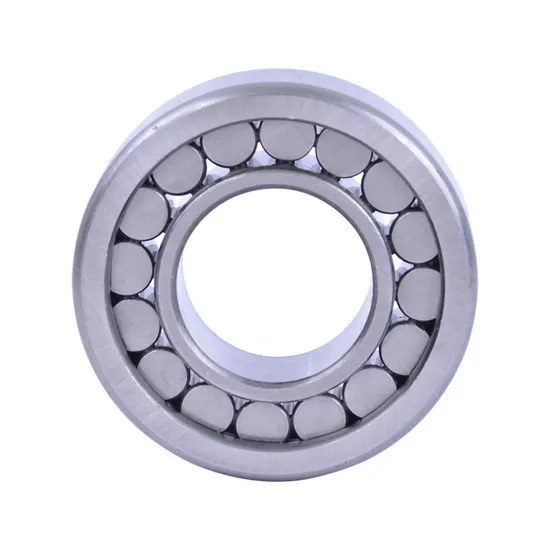

Cylindrical Roller Bearing NJ305/C3 for Reduction Gearboxes – High-Load Radial Support

Technical Specifications

Application Suitability

Why 35% of Gearbox Bearing Failures Begin Before Installation — And How the SKF NJ305/C3 Prevents Them

Industrial gearbox failures attributed to incorrect bearing selection exceed 35% — not from manufacturing defects, but from mismatched internal clearance, inadequate load rating, or unvalidated thermal expansion assumptions. A single unplanned stoppage in wind turbine maintenance costs $12,000–$45,000/hour in lost generation and service mobilization. Most suppliers lack certified engineering resources to validate fit, load, and thermal behavior — leaving procurement teams to rely on catalog data alone. At Eurasia Smart (Jinan), our 15+ SKF-certified engineers perform application-specific analysis before quoting.

Engineered for Reduction Gearbox Operating Realities

The SKF NJ305/C3 cylindrical roller bearing is specified — not selected — for reduction gearboxes where radial stiffness, thermal growth management, and predictable L10 life are non-negotiable. As an official SKF engineering partner, we provide full bearing life calculation per ISO 281:2021 using your actual load spectrum, speed profile, and lubricant viscosity index — not generic “typical” values. Our team delivers documented recommendations for shaft and housing fits, lubricant type and replenishment intervals, and mounting torque limits — all aligned with SKF’s Application Engineering Handbook. This is not a component sale; it is an engineered interface solution backed by ISO 9001 and TS 16949 quality control.

Operating Environment and Performance Demands

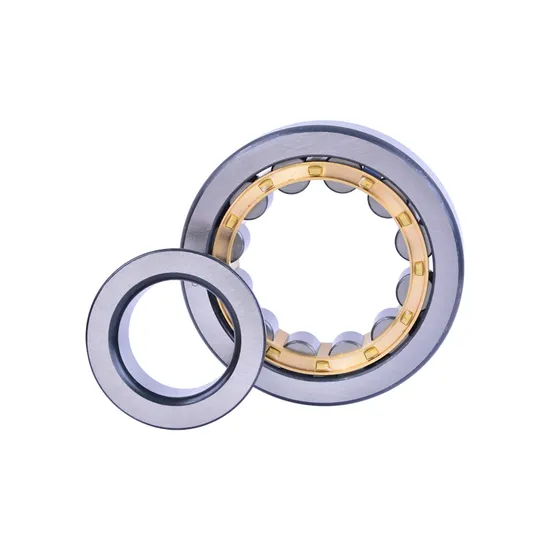

Reduction gearboxes in wind turbines operate at low-to-moderate speeds (50–1500 r/min) under high, oscillating radial loads and ambient temperature swings from –25°C to +55°C. Axial displacement must be accommodated without compromising cage integrity or roller guidance. In mining applications, dust ingress and shock loading demand precise internal geometry control and consistent heat treatment depth. The NJ305/C3 meets these demands through its separable design (permitting independent mounting of inner ring/roller/cage assembly), C3 radial clearance (allowing for up to 0.025 mm thermal expansion at 80°C rise), and optimized roller profile that minimizes edge stresses under misaligned conditions. This makes it a preferred NJ305 C3 radial bearing for wind turbine gearboxes where reliability trumps cost-per-unit.

Inside the Engineering: What Makes This Bearing Perform

The NJ305/C3’s 48.5 kN dynamic load rating directly determines its L10 fatigue life: at 1000 r/min and 25 kN equivalent radial load, calculated life exceeds 45,000 hours per ISO 281. Its pressed steel cage provides dimensional stability at elevated temperatures while maintaining low mass — critical for inertia-sensitive gear train dynamics. The open configuration enables full access for high-viscosity EP gear oils and eliminates seal friction losses, reducing operating temperature by up to 8°C versus sealed variants. C3 clearance is not oversized — it is calibrated to offset the 0.018 mm radial contraction expected when a 25 mm steel shaft cools from 80°C to 20°C in a fixed housing, preventing excessive preload during cold start. Precision class P0 ensures runout ≤ 10 μm and raceway waviness within ±3 μm — meeting OEM requirements for vibration grade V2 (ISO 1940-1 G6.3).

The True Cost of Bearing Failure

A counterfeit or incorrectly specified NJ305/C3 bearing may deliver only 22% of the L10 life of a genuine SKF unit — accelerating fatigue spalling and triggering cascading gear damage. In steel mills, premature bearing failure increases total cost of ownership (TCO) by 2.8× due to unplanned downtime, emergency labor, and collateral component replacement. Installation errors — such as improper interference fit or hammer-driven mounting — cause 30% of early failures; our engineers provide SKF-approved mounting procedures and induction heater specifications prior to delivery. Genuine SKF NJ305/C3 high-load gearbox bearings are manufactured to strict dimensional tolerances and verified via 100% dimensional inspection and hardness testing — ensuring predictable performance over 20,000+ operational hours under rated conditions.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF NJ305/C3 bearing ships with a factory-issued Certificate of Conformity listing heat number, dimensional inspection report, material test certificate (EN 10204 3.1), and original SKF packaging bearing anti-counterfeit hologram. Batch-level traceability is available upon request. Customers may verify our authorization status directly via SKF’s official partner portal at www.skf.com/partnercheck using company registration number CN-ESJN-2023-087. Original SKF packaging includes tamper-evident seals and QR-coded labels linking to production data.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any bearing, engineers at global OEMs and Tier-1 suppliers send us their actual operating parameters: radial and axial load magnitudes and directions, rotational speed range, ambient and operating temperature profiles, shaft/housing material and hardness, available mounting space, and lubrication method. Within 48 hours, our team returns a signed technical assessment including ISO 281 life calculation, recommended fits, thermal expansion margin check, and lubricant specification. For projects above $50,000, we supply test units with full performance validation data. Every hour spent optimizing selection prevents weeks of unplanned downtime — begin your engineering review today.
