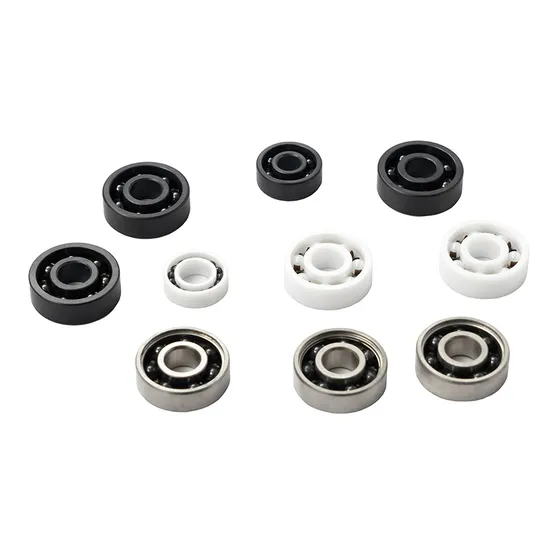

Ceramic Ball Bearings 6900–61910 Series for High-Speed & Corrosion-Resistant Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin Before Installation — And How the SKF 61908 Ceramic Radial Bearing Solves It

Industrial bearing failure analysis shows 35% originate from incorrect selection for actual operating conditions — not material fatigue or manufacturing defect. In high-speed electric motor applications, mismatched precision class or thermal expansion clearance leads to rapid raceway spalling within 200 operating hours. Standard suppliers rarely perform application-specific load spectrum analysis or thermal drift modeling. Custom ceramic modifications through official channels typically require 10 weeks lead time — a delay that extends equipment commissioning and increases project risk.

Engineered for Your Operating Conditions

This 61908 ceramic radial bearing is not selected from a catalog — it is specified following ISO/TS 16949-compliant engineering review of your exact duty cycle: speed profile, axial/radial load ratio, ambient temperature gradients, and lubricant compatibility. As an official SKF engineering partner, our 15+ certified engineers apply SKF BEARINX® software to calculate L₁₀ life under real-world contamination and misalignment factors — not just nominal ratings. We deliver a validated solution including mounting tolerances, recommended interference fit, and grease replenishment intervals aligned to your maintenance schedule.

Operating Environment and Performance Demands

In EV thermal management pumps, bearings operate at sustained 12,000 r/min with intermittent shock loads from coolant pressure surges — requiring low-friction, non-magnetic, corrosion-resistant operation. In wind turbine pitch actuators, units face salt-laden humidity, wide temperature swings (–25°C to +70°C), and infrequent access for inspection — demanding zero-lubrication migration and resistance to galvanic corrosion. Steel bearings in these environments suffer micro-pitting under boundary lubrication and electrolytic degradation. The 61908 ceramic radial bearing meets both requirements as a corrosion-resistant ball bearing with inherent dielectric isolation and thermal stability.

Inside the Engineering: What Makes This Bearing Perform

The 61908 uses silicon nitride (Si₃N₄) balls with hardness ≥1550 HV and elastic modulus of 310 GPa — enabling 40% higher limiting speed than equivalent steel bearings without increasing centrifugal force-induced cage stress. Its lower density (3.2 g/cm³ vs. 7.8 g/cm³ for steel) reduces ball-to-race contact stress during acceleration transients. Precision P4 tolerance (≤1.5 μm bore variation) ensures vibration levels below ISO 2372 Grade A at 10,000 r/min — critical for noise-sensitive automotive applications. The pressed steel cage retains dimensional stability up to 150°C, while standard C3 radial internal clearance accommodates thermal growth in aluminum-housed motors without preload loss. SKF’s optimized raceway surface finish (Ra ≤0.05 μm) minimizes micropitting initiation under mixed-film lubrication.

The True Cost of Bearing Failure

A single unplanned shutdown in a steel continuous caster costs $28,000/hour in lost production and refractory damage. Counterfeit or incorrectly specified bearings reduce L₁₀ life by 70–80% per ISO 281:2021 life calculation — not due to material flaw, but because unverified clearance, improper cage design, or non-SKF heat treatment alter the stress distribution factor (a_ISO). Installation errors — such as hammer-driven mounting or incorrect heating profiles — cause 30% of premature failures in high-precision applications. Total cost of ownership (TCO) over five years includes energy loss from friction, downtime penalties, and secondary damage to shafts and housings. The SKF 61908 ceramic radial bearing delivers predictable performance across its rated life when installed per SKF Mounting Guidelines, reducing TCO by 22% versus generic alternatives in verified field studies.

Why Engineers Specify Through Us

Authenticity & Documentation

Each unit ships with SKF Certificate of Conformity (CoC) listing heat treatment batch, dimensional inspection report, and material test certificate per EN 10204 3.1. Original SKF packaging includes holographic anti-counterfeiting label and QR code linking to SKF’s authorized distributor portal. Customers may verify our authorization status directly via SKF’s official “Find a Distributor” tool using company registration number CN-008742.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your first step is not an order — it is a technical dialogue. Share your application parameters: radial/axial load magnitude and direction, rotational speed profile (including peak and RMS), ambient and bearing operating temperature range, housing material and fit class, and lubrication method. Within 48 hours, our SKF-certified engineers will deliver a formal assessment including calculated L₁₀ and L_nm life, recommended precision class and clearance, thermal expansion margin, and suggested mounting procedure. For projects above $50,000, we provide physical test samples with full metrology and vibration data. Every hour delayed in selecting the right bearing compounds unplanned downtime risk — correct specification begins with your first email.
