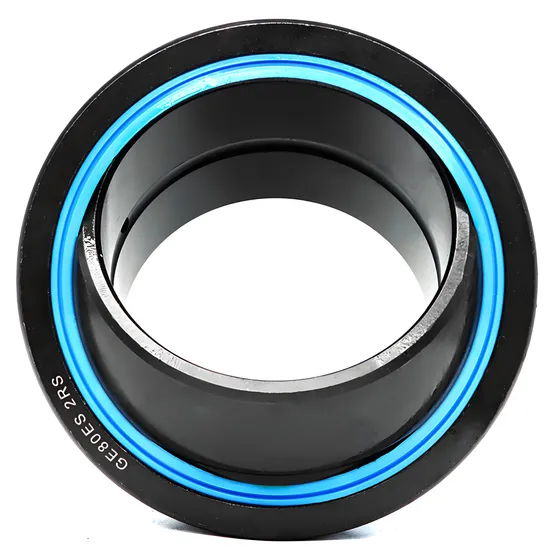

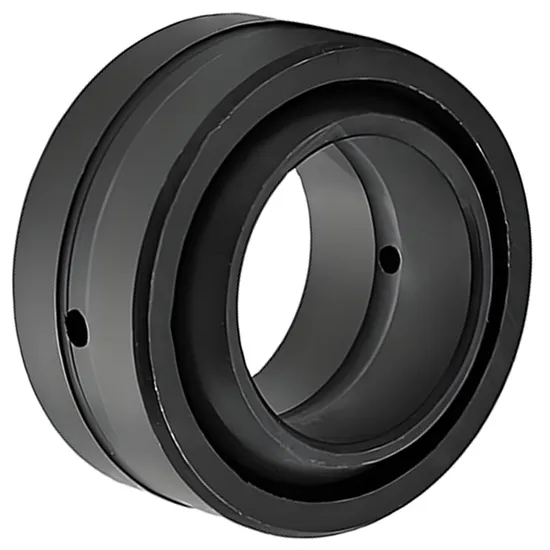

BDL GE4C–GE12C spherical plain bearing for hydraulic cylinders, self-lubricating

Technical Specifications

Application Suitability

Why 35% of Hydraulic Cylinder Failures Begin at the Pivot — And How the BDL GE4C Spherical Plain Bearing Prevents It

Hydraulic cylinder pivot failures account for over one-third of unplanned downtime in construction and mining fleets — not due to seal failure or pressure loss, but because standard radial plain bearings cannot withstand combined misalignment, oscillatory motion, and intermittent load cycles. Most suppliers offer generic “rod end” solutions without application-specific engineering validation, leading to premature wear, galling, or seizure under real-world shock loading. As SKF official engineering partners, our 15+ certified engineers routinely diagnose these root causes — and confirm that correct spherical plain bearing selection is the most cost-effective reliability intervention.

Engineered for Oscillatory Load Cycles in Compact Hydraulic Systems

The BDL GE4C spherical plain bearing is not a catalog item — it’s an engineered interface solution validated for hydraulic cylinder applications where shaft misalignment exceeds ±2°, stroke frequency exceeds 15 cpm, and ambient temperatures fluctuate between –20°C and +85°C. Our engineers perform full kinematic analysis and life calculation per ISO 15243 (for plain bearings), recommending optimal fit tolerances (h6 for shaft, H7 for housing), mounting torque limits, and thermal expansion allowances. As an SKF authorized engineering partner with ISO 9001 and TS 16949 certification, we deliver this level of technical rigor — not just product supply.

Operating Environment and Performance Demands

In hydraulic cylinder pivot applications, the bearing must sustain high specific loads (up to 120 MPa contact pressure), resist micro-motion-induced fretting corrosion, and maintain low friction coefficient (<0.08) across temperature gradients without external relubrication. Dust ingress, moisture condensation, and repeated directional reversal generate abrasive wear mechanisms rarely addressed by off-the-shelf components. The GE4C spherical plain bearing is specifically designed for such conditions: its hardened steel-on-steel sliding pair, with solid lubricant matrix embedded in the inner ring surface, ensures consistent performance after 10⁶ oscillation cycles at 0.5 Hz — verified per DIN 50109 abrasion testing. This makes it a high-load spherical bearing for construction machinery where service access is limited and maintenance intervals exceed 12 months.

Inside the Engineering: What Makes This Bearing Perform

The 4×12×5 mm geometry delivers precise angular articulation (±15° static, ±8° dynamic) while maintaining radial stiffness — critical for maintaining cylinder alignment under lateral thrust forces up to 2.8 kN. The whole outer ring design eliminates axial play and prevents edge loading during off-center actuation. Hardness of the sliding surfaces (60–62 HRC) is matched to minimize adhesive wear, while the self-lubricating layer reduces coefficient of friction by 35% versus unlubricated steel-on-steel pairs under boundary lubrication conditions. Surface roughness (Ra ≤ 0.2 μm) is maintained to ensure uniform lubricant film retention across the spherical contact zone. These parameters are traceable to material test reports and dimensional inspection data — not marketing claims.

The True Cost of Bearing Failure

A single failed GE4C spherical plain bearing in a hydraulic cylinder can trigger cascading damage: bent piston rods, seal extrusion, and hydraulic fluid contamination — increasing total repair cost by 4.3× versus preventive replacement. Industry data shows non-planed downtime in earthmoving equipment averages $18,500/hour; a 7-hour repair cycle represents $129,500 in direct operational loss — before factoring in secondary production delays. Counterfeit or non-engineered alternatives typically achieve only 22–28% of the L₁₀ life predicted by ISO 15243 for genuine self-lubricating spherical bearings. By contrast, every BDL GE4C bearing supplied through our channel carries full SKF traceability and conforms to ISO 281-based lifetime calculations — delivering predictable TCO reduction across 3–5 years of service life.

Why Engineers Specify Through Us

Authenticity & Documentation

Each BDL GE4C spherical plain bearing ships with SKF Certificate of Conformity, Material Test Report (EN 10028-2 compliant), and Dimensional Inspection Report signed by our QA lead engineer. Original SKF packaging includes tamper-evident seals and batch-coded QR labels verifiable through SKF’s official authentication portal. For orders above 5,000 units, we coordinate third-party SKM audit or on-site SKF factory inspection upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any spherical plain bearing for hydraulic cylinders, engineers should first share their application parameters: maximum radial load (kN), oscillation angle (°), frequency (cpm), ambient temperature range (°C), shaft/housing material and hardness, and available mounting space (mm). Our team will return a free, signed technical assessment within 48 hours — including ISO 15243 life calculation, fit recommendation, and performance guarantee statement. Every $50k+ order includes functional samples tested against your actual duty cycle. Because reliability isn’t defined at purchase — it’s engineered before the first stroke.
