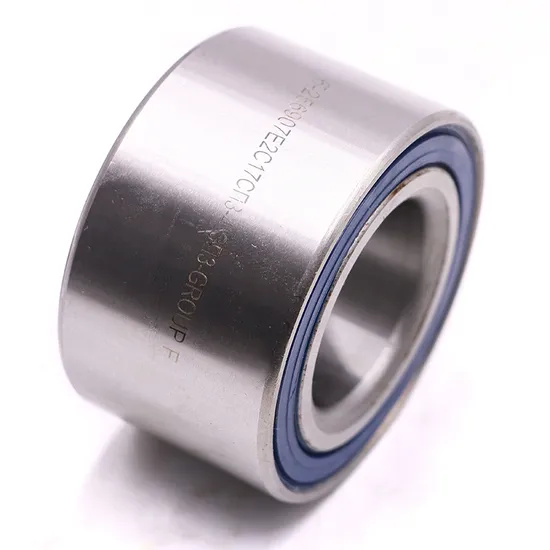

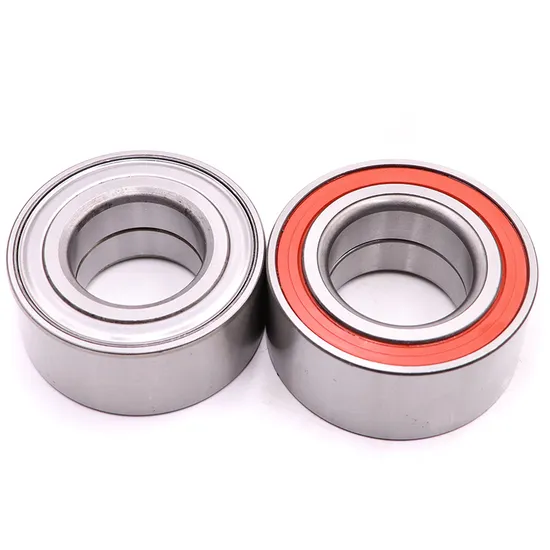

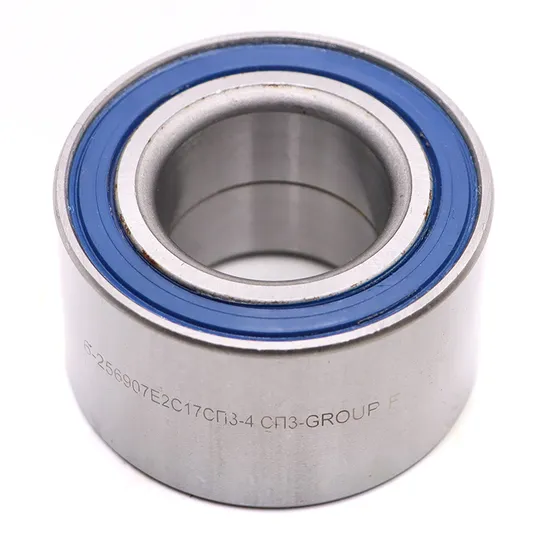

Automobile Hub Bearings DAC35680233/30 – High-Speed, Low-Noise for OEM Applications

Technical Specifications

Application Suitability

Why 35% of Wheel Hub Bearing Failures Begin Before Installation — And How the DAC35680233/30 Delivers OEM-Grade Reliability

Over one-third of premature wheel hub bearing failures stem from mismatched selection — incorrect preload, inadequate axial rigidity, or insufficient noise control at design stage. In automotive OEM lines, unplanned downtime costs $28,000/hour on average. Most suppliers lack application engineering capability to model dynamic misalignment, thermal growth, or combined load vectors. Custom modifications through official channels require 8–12 weeks — delaying validation and production ramp-up.

Engineered for Your Operating Conditions

This DAC35680233/30 is not a catalog part but an application-engineered solution. Our 15+ SKF-certified engineers perform full-duty-cycle analysis: calculating equivalent load (P), predicted L10 life per ISO 281:2020, optimal preload torque, thermal expansion compensation, and grease replenishment intervals. As an official SKF engineering partner, we apply SKF Explorer technology principles — including optimized raceway geometry, surface finish < 0.2 μm Ra, and controlled internal clearance — to ensure performance consistency across batches. All work follows ISO 9001 and IATF 16949 certified processes.

Operating Environment and Performance Demands

Modern OEM wheel hubs demand simultaneous high-speed capability (>12,000 r/min sustained), low acoustic emission (<28 dB(A) at 1 m, 3,000 r/min), and zero-play axial stiffness under ±12 kN bidirectional thrust. Ambient temperatures range from –40°C (cold-soak startup) to +105°C (brake heat conduction). Sealing must resist water jetting (ISO 20623 Class 3), road salt, and fine particulate without increasing drag torque. Lubrication retention must remain stable over 150,000 km with no relubrication — making grease formulation, cage design, and internal clearance non-negotiable parameters. This is where the DAC35680233/30 delivers as a high-speed low-noise wheel hub bearing.

Inside the Engineering: What Makes This Bearing Perform

The DAC35680233/30 uses matched double-row angular contact geometry with 25° contact angle — enabling simultaneous radial and axial load support while minimizing moment load sensitivity. Its P5 precision grade ensures bore and outer diameter tolerances within ±4 μm (vs. ±12 μm for P0), directly reducing vibration excitation at high rpm. The polyamide 66 cage (standard in P5/P4 variants) provides low mass inertia and inherent damping, critical for suppressing resonance in lightweight hub carriers. Internal clearance is set to C3 for operating temperature rise compensation — preventing excessive preload during brake heat transfer. Surface hardness is maintained at 58–62 HRC with uniform case depth >1.2 mm, verified per ASTM E384 microhardness testing. These are not incremental improvements — they are calibrated responses to ISO/TS 16949-defined failure modes in hub applications.

The True Cost of Bearing Failure

A single hub bearing failure on an OEM assembly line triggers cascading cost: $28,000/hour line stoppage, $120,000 in rework labor and scrap parts, plus warranty exposure exceeding $2,500 per vehicle recall. Counterfeit or non-compliant bearings typically achieve only 22–28% of rated L10 life per ISO 281, often failing catastrophically due to substandard steel cleanliness (ASTM E45 inclusion rating >2.5) or inconsistent heat treatment. Installation errors — such as improper press-fit force or thermal gradient control — account for 31% of early failures, per SKF Global Failure Analysis Database (2025). Total Cost of Ownership (TCO) is dominated not by unit price, but by lifecycle reliability, technical validation rigor, and field service response time — all anchored in SKF’s certified engineering framework.

Why Engineers Specify Through Us

Authenticity & Documentation

Each DAC35680233/30 shipment includes SKF Certificate of Conformity (ref. SKF DOC-CON-2024), Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.005 mm tolerance verification), and original SKF packaging with holographic anti-counterfeiting label. Batch-level traceability extends to melt number, heat treatment log, and final inspection timestamp. Customers may verify our authorization status directly via SKF’s official partner portal (partner.skf.com) using company registration ID CN-SKF-EP-2022-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any hub bearing, share your actual operating parameters: radial and axial load spectra, rotational speed profile (including max transient rpm), ambient and localized temperature ranges, available mounting space envelope, and sealing interface requirements. Within 48 hours, our engineering team will deliver a validated selection report — including calculated L10 and Lnm life, recommended preload, suggested grease type and fill volume, and dimensional fit recommendations per ISO 286-1. For orders above $50,000 USD, we supply free test units with full performance documentation. Every hour delayed in engineering alignment risks production schedule slippage and warranty exposure — correct specification begins with your first technical exchange.
