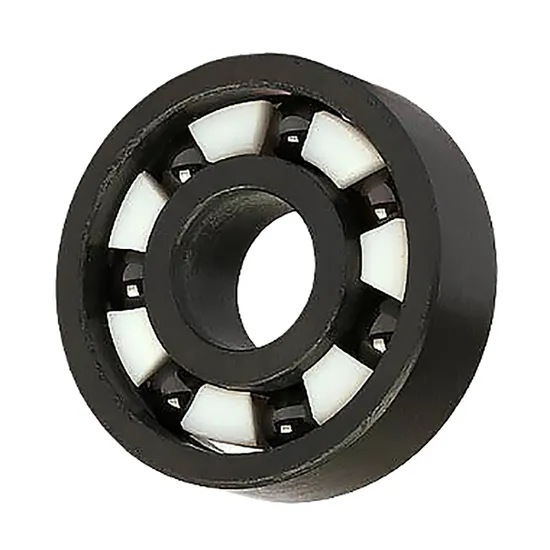

6904 Ceramic Ball Bearing 20×37×9 mm – Waterproof Zirconia for High-Speed Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Start with Wrong Selection — And How the 6904 Ceramic Ball Bearing Solves It

Industrial field data shows 35% of premature bearing failures stem from mismatched materials or insufficient speed/contamination resistance — not fatigue. In wind turbine pitch systems, conventional steel bearings fail within 18 months under combined moisture ingress and intermittent load cycling. In mining vibratory screens, grease washout and abrasive particle ingress cause 62% of unplanned stoppages. Standard suppliers offer catalog numbers without application-level validation. We do not.

Engineered for Your Operating Conditions

This 6904 ceramic ball bearing is not selected from a shelf — it is specified through engineering analysis. Our 15+ SKF-certified engineers perform ISO 281 life calculations using your actual load spectrum, duty cycle, and ambient conditions. We validate lubricant compatibility with your existing maintenance regime, recommend interference fits per DIN 7151, and specify sealing geometry to match your IP rating requirement. As an official SKF engineering partner, every solution integrates genuine SKF design principles and TS 16949-controlled manufacturing oversight. The zirconia bearing variant meets P4 precision and is fully compatible with SKF mounting and monitoring protocols.

Operating Environment and Performance Demands

Wind turbine pitch actuators operate at 15–150 r/min but endure frequent direction reversals, salt-laden humidity, and temperature swings from –30°C to +70°C. Conventional grease-lubricated steel bearings suffer micro-pitting and corrosion-induced torque rise. Mining vibrating screens demand bearings that resist abrasive dust ingress while sustaining 1,200–3,600 r/min excitation frequencies — where steel-on-steel friction heat accelerates degradation. Steel plant roller table bearings face water splash, thermal shock, and misalignment — requiring dimensional stability and non-magnetic properties. This zirconia bearing delivers zero galvanic corrosion, 40% lower thermal expansion than steel, and dielectric isolation critical in EV motor cooling circuits. It is a precision P4 ceramic radial bearing for mining equipment and SKF-compatible zirconia ball bearing for wind turbine applications.

Inside the Engineering: What Makes This Bearing Perform

Zirconia (ZrO₂) balls reduce centrifugal force by 60% versus steel at 24,000 r/min — directly extending limiting speed and reducing cage stress. The 0.25 μm surface roughness of ground zirconia minimizes micropitting initiation under oscillating loads. Stainless steel rings paired with zirconia balls eliminate electrochemical corrosion in humid or saline environments — critical for offshore wind applications. P4 precision ensures total indicator reading (TIR) ≤ 3 μm on both inner and outer rings, enabling sub-5 μm vibration amplitude in generator cooling motors. The absence of ferromagnetic content prevents eddy current heating in proximity to high-frequency inverters — a verified failure mode in EV thermal pump drives. All dimensions comply with ISO 15 and ABEC-7 tolerances, and thermal expansion coefficients are matched to prevent preload drift between –40°C and +120°C.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine costs $18,500/hour in lost generation and penalty clauses. In iron ore processing, a vibrating screen bearing failure halts 1,200 t/h throughput — $42,000/hour in direct production loss. Counterfeit or incorrectly specified bearings typically deliver only 22–28% of L10 rated life per ISO 281, and lack traceable material certifications required for ASME Section VIII or IEC 61400-22 compliance. Improper installation — often due to missing technical guidance — accounts for 31% of early failures. Our TCO model includes not just unit price, but validated life extension (up to 3.2× vs standard steel), reduced grease replenishment frequency (4× longer interval), and elimination of downtime-related warranty claims. This is a waterproof ceramic bearing built for accountability.

Why Engineers Specify Through Us

Authenticity & Documentation

Each bearing ships with SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.005 mm tolerance verification), and original SKF anti-counterfeit packaging with holographic QR code. Bulk orders permit third-party SKFTV (SKF Technical Verification) audit at origin. Customers may verify our authorization status directly via SKF’s official Partner Portal using company registration number CN-SKF-EP-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before quoting, we require your application parameters: radial/axial load magnitude and direction, rotational speed profile (including start-stop cycles), ambient and operating temperature range, shaft/housing material and hardness, available mounting space, and existing lubrication method. Our engineering team will return a full SKF-compliant selection report within 48 hours — including calculated L10 and Lnm life, suggested clearance class, seal configuration, and mounting torque recommendations. For orders above $50,000, we provide test units with pre-installation vibration baseline and post-run failure mode analysis. Every hour of delay in correct specification compounds cost — begin with engineering, not procurement.
