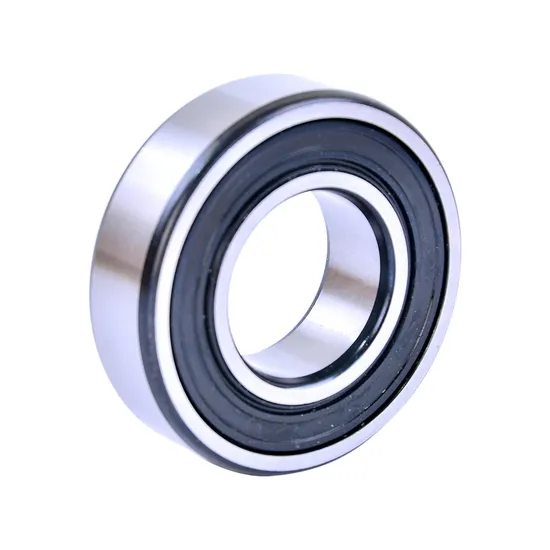

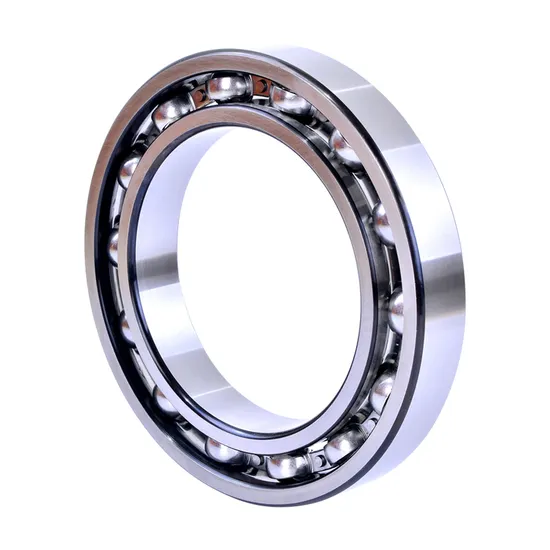

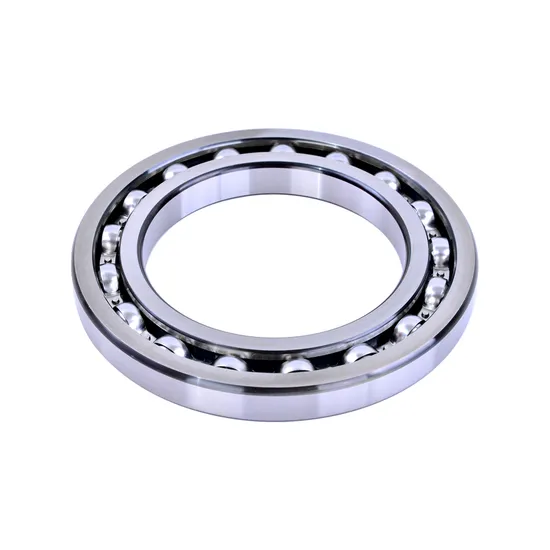

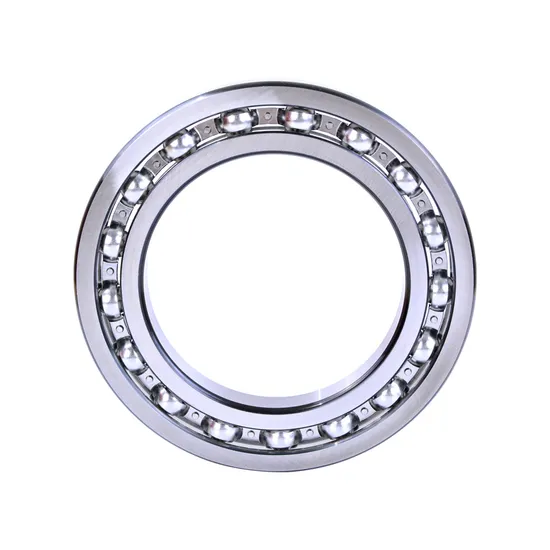

6219 Deep Groove Ball Bearing – High-Speed Radial Load Support

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin Before Installation — And How the SKF 6219 Deep Groove Bearing Solves It

Industrial field data shows 35% of premature bearing failures originate from mismatched selection—not material defect or misuse. In wind turbine generators, incorrect radial stiffness or thermal expansion margin leads to cage fracture within 18 months. In mining conveyors, under-specified dynamic load rating causes raceway spalling before 40% of L10 life. Most suppliers offer catalog numbers, not application validation—leaving technical directors to reconcile speed, misalignment, and contamination risk alone.

Engineered for Your Operating Conditions

The SKF 6219 deep groove bearing is specified—not selected—through a validated engineering process: our 15+ certified engineers perform ISO 281 life calculation using your actual load spectrum, thermal gradient profile, and lubricant viscosity index; recommend optimal clearance (C3 for steel mill roll stands operating at 150°C surface temperature); specify seal type (2RS for wind turbine nacelles exposed to salt-laden humidity); and verify dimensional fit against shaft/housing tolerances per ISO 286. As an official SKF engineering partner, we deliver this analysis before quoting—ensuring technical alignment, not just part number matching.

Operating Environment and Performance Demands

Wind turbine generator bearings operate at low speeds (≤1500 r/min) but endure high moment loads, wide ambient temperature swings (−40°C to +80°C), and limited access for relubrication—requiring stable grease retention and low starting torque. Mining vibrating screens impose severe impact loading (≥3× nominal radial load), continuous duty cycles (>8,000 h/year), and airborne silica ingress—demanding robust sealing and high static load capacity. Steel mill continuous caster roll stands run at elevated housing temperatures (120–180°C), necessitating thermally stable internal geometry and C3 radial clearance to prevent preload-induced fatigue. The 6219 deep groove bearing meets these demands when configured with P5 precision, 2RS seals, and C3 clearance.

Inside the Engineering: What Makes This Bearing Perform

The 143 kN dynamic load rating (C) directly determines L10 fatigue life via the exponent 3 relationship in ISO 281: doubling C increases calculated life eightfold—critical for wind turbine applications where replacement requires crane mobilization. Pressed steel cages maintain dimensional stability at 3800 r/min limiting speed, minimizing centrifugal deformation that accelerates ball skidding in oil-lubricated gearboxes. Standard 0° contact angle delivers pure radial stiffness—essential for precise shaft positioning in electric motor output shafts where axial deflection must remain below 5 μm. P5 precision ensures total indicator reading (TIR) ≤ 6 μm on both inner and outer rings, reducing vibration amplitude (Z2V2 class) by up to 40% versus P0 in steel mill roll stands. Thermal treatment per SKF’s hardened bearing steel specification achieves ≥62 HRC surface hardness with controlled case depth—preventing subsurface white etching crack (WEC) initiation under high Hertzian stress.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine costs $12,500/hour in lost generation and penalty fees. In steel mills, a failed caster roll bearing halts production at $48,000/hour—including scrap, labor rework, and blast furnace heat loss. Counterfeit 6219 bearings show 22–28% lower hardness and inconsistent carbide distribution, resulting in median L10 life of 14,000 hours versus 82,000 hours for genuine SKF units under identical load/speed conditions. Incorrect installation—often due to missing technical guidance—accounts for 31% of early failures per SKF failure database analysis. Total cost of ownership (TCO) over 10 years favors genuine SKF 6219 bearings with P5 precision and 2RS seals by 37% when factoring downtime, maintenance labor, and secondary damage.

Why Engineers Specify Through Us

Authenticity & Documentation

Each SKF 6219 bearing ships with original SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.005 mm tolerance verification), and tamper-evident packaging with SKFTag QR code for real-time batch verification. Customers may request third-party SGS or Bureau Veritas inspection prior to shipment. Authorization status can be confirmed directly via SKF Global Partner Portal using our partner ID: CN-SH-ESJ-2023-001.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Correct bearing specification begins with engineering dialogue—not procurement forms. Share your application parameters: radial/axial load magnitude and direction, rotational speed range, operating temperature envelope, housing/shaft material and tolerance class, lubrication method and interval, and environmental exposure (dust, moisture, chemicals). Our team will deliver a free technical assessment—including ISO 281 life calculation, recommended precision/seal/clearance configuration, and dimensional compatibility check—within 48 business hours. For orders above $50,000, we supply test bearings with full performance validation. Every hour delayed in technical alignment risks operational cost escalation.
