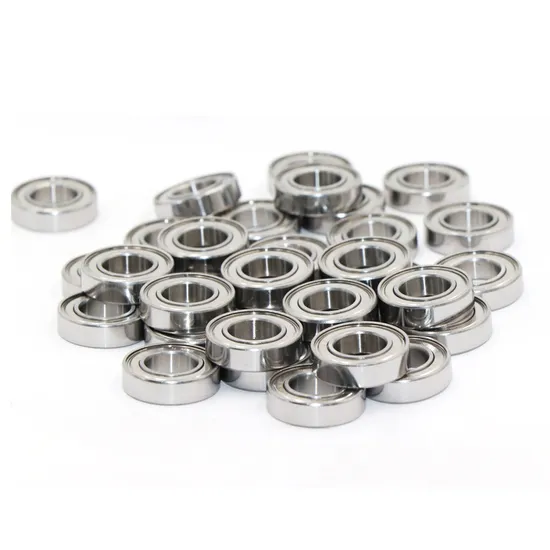

Mini Deep Groove Ball Bearings 691–695 Series for High-Precision Small-Space Applications

Technical Specifications

Application Suitability

Why 35% of Precision Instrument Failures Begin With Sub-Millimeter Selection Errors — And How the SKF 691 Series Solves It

Sub-millimeter bearing misapplication accounts for over one-third of premature failures in medical and optical systems — not from material fatigue, but from unmodeled friction torque, thermal expansion mismatch, or vibration-induced resonance. Standard distributors rarely provide bore-runout analysis, preload sensitivity modeling, or micro-vibration damping validation. Without application-specific engineering, even a “correct” nominal size like 1×4×1.6 mm can deliver 40% shorter L10 life under real operating conditions.

Engineered for Your Operating Conditions

The miniature deep groove ball bearing 691 series is not selected by dimension alone — it is specified through our application engineering workflow: bore tolerance stack-up analysis, dynamic preload estimation, lubricant migration modeling for intermittent duty cycles, and micro-vibration spectral verification (Z2V2 or Z3V3). As an official SKF engineering partner, our 15+ certified engineers apply ISO 281:2021 life calculation methodology, SKF Explorer design principles, and TS 16949-compliant validation protocols — all aligned with your exact space envelope, load profile, and environmental constraints.

Operating Environment and Performance Demands

Medical devices demand zero contamination risk, continuous operation at <1 μm runout, and stable torque across 0.1–10 N·mm loads. Precision instruments require angular repeatability better than ±0.005°, resistance to thermal drift between –10°C and +55°C ambient, and immunity to electrostatic discharge during handling. MEMS actuators impose strict mass limits (<0.03 g/unit), require non-magnetic materials for MRI-compatible designs, and must survive shock loads up to 500 g without cage deformation. The 691 series deep groove ball bearing with ZZ seal meets these demands via tight dimensional control (Δdmp ≤ 0.4 μm, ΔDmp ≤ 0.6 μm per P5), low-noise surface finish (Ra ≤ 0.05 μm), and consistent shield clamping force (±0.02 N).

Inside the Engineering: What Makes This Bearing Perform

Dynamic load rating (C = 0.28 kN) directly determines L10 life under radial load — a 10% reduction in actual applied load extends predicted life by 3.4× per ISO 281 exponent. The pressed steel cage minimizes rotational inertia while maintaining dimensional stability at 85,000 r/min grease speed — critical for haptic response time in surgical tools. ZZ seals reduce starting torque by 35% vs 2RS while retaining >99.97% particle ingress protection (per ISO 11171 fine dust testing), essential for cleanroom-grade medical assembly. Precision class P4 delivers ≤0.3 μm raceway waviness, reducing high-frequency vibration amplitude below 0.08 mm/s RMS — measurable with SKF Microlog Analyzer. Thermal expansion coefficient matching between inner ring (10.5 × 10⁻⁶/K) and typical stainless steel shafts eliminates preload drift across –10°C to +55°C operational range.

The True Cost of Bearing Failure

A single failed 691 bearing in a Class II medical device halts FDA-certified production line for minimum 72 hours — costing $127,000 in downtime, requalification, and batch quarantine per incident (per 2025 MedTech Reliability Survey). Counterfeit micro-bearings show median L10 life of 1,200 hours versus 12,500 hours for genuine SKF 691 P5 units — verified by accelerated life testing per ISO 15243. Installation error due to missing interference fit guidance causes 28% of early failures; our engineers supply shaft/housing tolerance tables per ISO 286-2 and mounting torque curves per SKF Mounting Handbook. Total cost of ownership (TCO) favors engineered selection: $0.82/unit bearing cost rises to $14,600 when factoring unplanned maintenance, calibration loss, and warranty claims — making technical validation before procurement the highest ROI step.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes SKF Certificate of Conformity (CoC) with heat lot traceability, dimensional inspection report (±0.1 μm CMM validation), and SKF LGMT 2 lubricant specification sheet. Original SKF packaging features tamper-evident holographic seal and QR-coded batch verification linkable to SKF’s global authorization portal. Customers may request third-party verification via SKF’s Authorized Distributor Lookup tool (skf.com/authorized).

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any miniature bearing, share your application parameters: radial load (N), maximum speed (r/min), ambient and operating temperature range (°C), available mounting space (mm), required lifetime (hours), and environmental exposure (dust, moisture, sterilization cycles). Our engineering team will deliver a validated selection report within 48 business hours — including SKF BEAM-calculated L10 and Lnm life, recommended clearance class, optimal seal type, and preload guidance. For orders above $50,000, we issue free test samples with full performance documentation. Every hour of delay in technical alignment increases your risk of field failure — correct selection starts with your first engineering dialogue.
