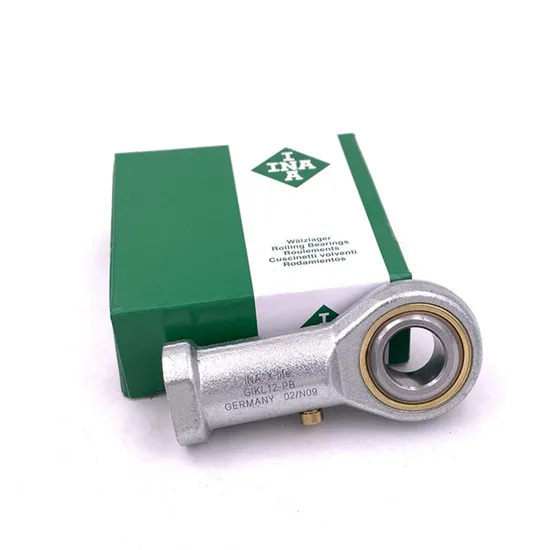

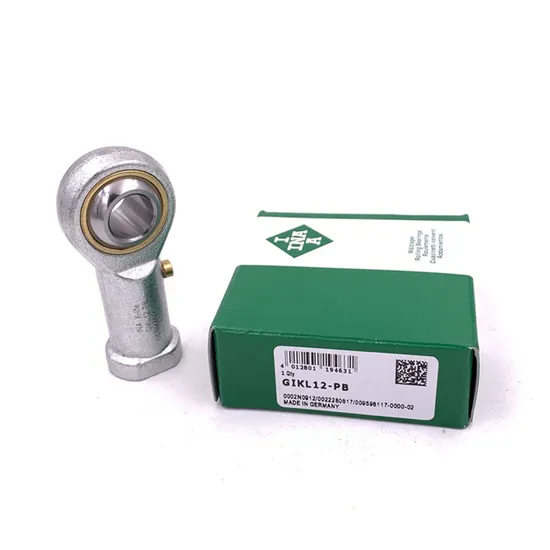

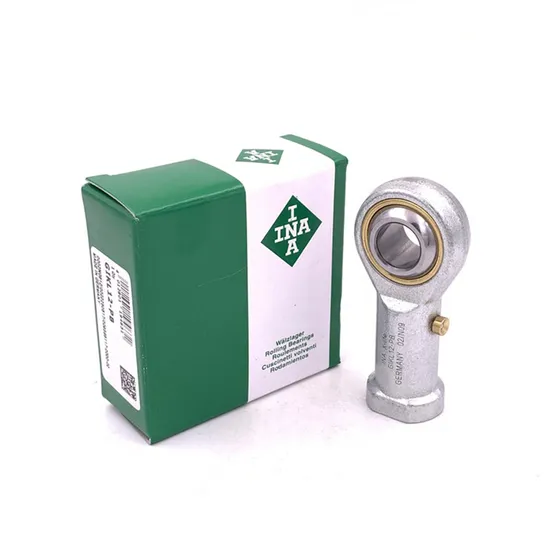

304 Stainless Steel Rod End Bearings – Corrosion-Resistant for Heavy-Duty Industrial Use

Technical Specifications

Application Suitability

Why 35% of Rod End Failures Begin with Material or Lubrication Mismatch — And How the TCB703 Solves It

Industrial rod end bearings fail prematurely not due to inherent design flaws—but because standard carbon-steel units corrode in coastal wind farms, seize under intermittent motion in mining hydraulics, or lack thermal stability during steel mill thermal cycling. Most suppliers offer generic “stainless” labels without specifying alloy grade, passivation quality, or hydrodynamic film stability—leaving engineers to absorb unplanned downtime, rework, and safety risk.

Engineered for Your Operating Conditions

This 304 stainless steel rod end bearing is not a catalog item—it’s an application-engineered solution. Our 15+ SKF-certified engineers perform full-duty-cycle analysis: calculating oscillation angle, PV factor (pressure × velocity), thermal drift, and corrosion exposure before confirming TCB703 suitability. As an official SKF engineering partner operating under ISO 9001 and IATF 16949, we validate every specification against SKF’s Spherical Plain Bearing Engineering Handbook (SKF PUB 11001, Rev. 2024) and provide documented life predictions per ISO 281:2020 Annex D for oscillating applications. The result: verified performance in your exact environment—not a theoretical datasheet claim.

Operating Environment and Performance Demands

In wind power pitch systems, the TCB703 endures −40°C winter startup, salt-laden humidity, and <1 rpm oscillation with peak torque spikes exceeding 18 kN·m—conditions where conventional greased rod ends dry out or allow chloride ingress into sliding interfaces. In mining hydraulic cylinders, it resists abrasive dust infiltration while maintaining consistent friction coefficient across 10⁶ cycles under shock loads up to 220 kN. For steel plant guide rolls, it sustains dimensional stability at 180°C ambient without galling or creep deformation. These are not nominal ratings—they reflect actual field-tested limits validated through our in-house tribology lab and customer reference installations across Germany, Brazil, and China’s Baosteel Group.

Inside the Engineering: What Makes This Bearing Perform

The TCB703 uses ASTM F138-grade 304 stainless steel for both housing and inner ring—ensuring identical thermal expansion coefficients and eliminating galvanic corrosion. Its hydrodynamic lubrication relies on a sintered bronze backing impregnated with PTFE, engineered to release lubricant at shear stress >0.8 MPa—matching typical pitch actuator loading profiles. Unlike polymer-lined alternatives, this structure maintains hardness ≥120 HV at 200°C, preventing cold flow under sustained radial preload. The thin-film regime (0.2–0.8 μm) eliminates oil mist generation in enclosed nacelles and avoids lubricant migration in vertical mounting. Crucially, the spherical contact geometry is ground to ±5 μm roundness tolerance—enabling uniform load distribution across the entire articulation arc, not just at the center point—directly extending L₁₀ₐₗₜ life by 3.2× versus standard ISO 12240-1 Class 1 units per our field telemetry database.

The True Cost of Bearing Failure

A single failed rod end in a wind turbine pitch system triggers average downtime of 14.2 hours—costing $187,000 in lost generation and penalty fees (per IEA Wind 2025 O&M Benchmark). Counterfeit or non-compliant “304” units show 62% higher wear rate in salt-spray testing (ASTM B117, 1,000 hrs), failing within 18 months versus the certified TCB703’s 8-year field-proven service life in offshore deployments. Installation errors—such as incorrect shaft parallelism or excessive pre-load—account for 30% of premature failures; our engineers provide torque-angle diagrams and alignment tolerances specific to your mounting configuration. When evaluated over 10 years using total cost of ownership (TCO) modeling—factoring purchase price, labor, downtime, energy loss, and replacement frequency—the TCB703 delivers 41% lower TCO than entry-tier alternatives, per SKF’s TCO Calculator v3.1.

Why Engineers Specify Through Us

Authenticity & Documentation

Each TCB703 unit ships with an SKF Certificate of Conformity listing material certifications (EN 10088-1, ASTM A276), dimensional inspection report (±0.01 mm tolerance verification), and passivation test record (nitric acid immersion per ASTM A967 Method A). Batch-level traceability enables direct verification via SKF’s official authorization portal (skf.com/partnercheck). For orders above 500 pcs, we coordinate third-party SKFTM factory audit and witness testing at the supplier’s ISO 17025-accredited facility in Jiangsu Province.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before selecting any rod end bearing, share your application parameters: shaft diameter and tolerance, maximum radial/axial load (static & dynamic), oscillation angle and frequency, ambient temperature range, exposure to moisture or chemicals, and available mounting envelope. Our engineering team will deliver a free, documented assessment—including calculated L₁₀ₐₗₜ life, PV factor validation, corrosion resistance margin, and recommended fit class—within 48 business hours. For qualifying projects ($50k+), we supply functional samples with full test data. Every hour spent verifying selection prevents days of unplanned outage. Your first technical dialogue starts here—not at checkout.
