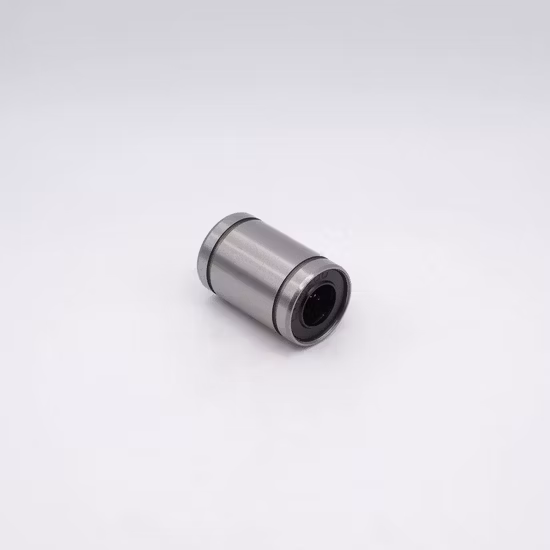

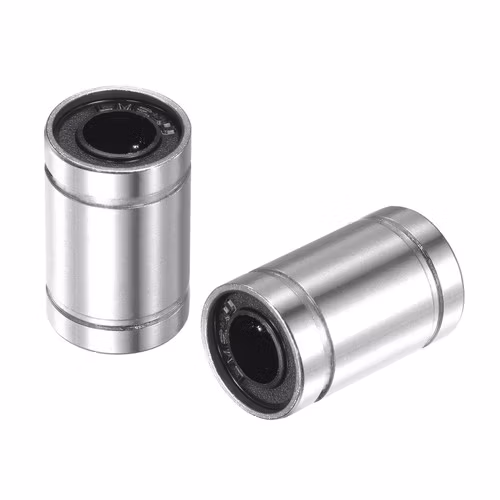

Lme10uu Lme12uu Lme16uu Linear Bearing Supplier

Multi-Brand Coverage — Procure mixed batches of Lmuu linear bearings from a single authorized source, eliminating the friction of coordinating across fragmented regional traders.

Technical Specifications

Application Suitability

Why the Wrong Cage Material Destroys Linear Motion

Nylon cages are mandatory for high-speed automation, yet counterfeit resin variants cause catastrophic carriage seizure.

In the trading hubs of Dongguan, I have dismantled countless failed linear carriages where the internal cage had disintegrated into abrasive dust. Procurement teams often focus solely on the outer shell dimensions, ignoring the polymer quality inside. When substandard recycled plastics are used instead of engineered nylon, the cage degrades rapidly under high-speed reciprocation, leading to severe vibration and eventual track scoring . Sourcing from a verified Lmuu linear bearing supplier ensures the internal components match the demanding kinematics of modern automation.

Matching the Lmuu to High-Cycle Automation Environments

Automation equipment demands continuous, frictionless reciprocation. The Lmuu linear bearing is engineered specifically for these high-cycle environments, utilizing a high-grade nylon cage that minimizes rolling friction and acoustic emission. As an authorized Lmuu linear bearing supplier, we verify that every batch meets the strict low-voice and high-speed operational criteria required by CNC and robotic applications, ensuring smooth linear travel without the micro-stutters that ruin surface finishes.

Reciprocating Loads and Contamination Challenges

Linear guides in machine tools and 3D printers face constant directional reversals and exposure to fine particulate matter. The double-sided contact seal (uu suffix) is critical here, wiping the shaft to prevent metallic swarf or polymer dust from entering the load-bearing zone. However, this contact seal introduces slight friction, which must be balanced against the high-speed requirements of the drive system. Furthermore, the open shape design allows the housing to be clamped, enabling precise clearance adjustment to eliminate play in high-precision measuring instruments .

Decoding the "uu" Suffix and Open Architecture

The "uu" designation strictly defines the double-sided contact sealing arrangement, which is non-negotiable in environments with airborne particulates. Unlike open-ended variants, the uu configuration retains lubrication and blocks contaminants, though it requires careful alignment to prevent seal lip binding. Additionally, the open (Lm-Op) structural profile is designed to be used with adjustable pillow blocks. This allows maintenance engineers to mechanically compress the housing slightly, taking up radial clearance and achieving the zero-backlash rigidity required for precision grinding and semiconductor wafer handling.

The Hidden Toll of Unverified Linear Components

Installing linear bearings with unverified internal clearances or soft inner rings leads to unpredictable carriage drift and premature shaft wear. According to failure analysis frameworks, surface fatigue and abrasive wear in linear motion systems are heavily accelerated by particulate ingress and improper preload . When a carriage fails mid-cycle, it causes unplanned downtime, scrapped production batches, and potential damage to the hardened linear shaft, far exceeding the initial savings of buying unverified stock.

Securing Authenticity in a Market Flooded with Clones

Our procurement protocol addresses the specific vulnerabilities of linear motion components. First, we provide authorized coverage across major brands, allowing you to consolidate mixed-brand requirements in one shipment. Second, we enforce strict cross-referencing; we verify that the LM metric dimensions perfectly match your housing, rather than blindly substituting European LME equivalents. Third, every Lmuu unit is backed by batch traceability to the manufacturer, verified via official QR applications to eliminate the risk of cloned packaging. Finally, our technical team reviews your load and speed parameters to confirm the nylon cage and uu seal are optimal for your specific duty cycle.

Documentation & Authenticity

• Certificate of Conformity verifying the LM series metric dimensional standards.
• Batch and lot traceability linking the nylon cage material to the original production run.
• Official app QR verification to authenticate the double-sided seal configuration.
• Dimensional and running accuracy inspection report confirming P-class tolerances.
• Material test report validating the bearing steel hardness for shaft contact.

Storage, Handling & Mounting Protocols

• Keep the Lmuu in its original vapor-corrosion inhibitor packaging until immediate mounting to protect the bearing steel tracks.
• Utilize the open-shape clamping feature carefully; over-tightening the housing bolts will distort the inner diameter and bind the nylon cage.
• Ensure the linear shaft surface finish matches the uu contact seal requirements to prevent premature lip wear.
• Apply clean, lint-free gloves during installation to avoid transferring skin oils to the high-precision P-class running surfaces.
• Verify the housing bore tolerance before pressing the circular flange bearing into the adjustable block.

Engineering Review and Selection Support

To ensure optimal performance and longevity, please provide your specific application parameters. Sharing the radial and axial load profiles, travel speed, operating temperature, and shaft support intervals allows our engineering team to validate the L10 life calculation. If you are replacing existing components, providing the exact OEM equipment number or housing drawings enables us to perform a rigorous cross-reference check, ensuring the metric LM dimensions and open-shape clearances align perfectly with your mechanical design.

Frequently Asked Questions

Q: How do we verify the authenticity of the nylon cage and seals?
A: Every batch we supply includes原厂 (original factory) lot traceability documentation. You can verify the authenticity directly through the manufacturer's official mobile application by scanning the QR code on the packaging. This confirms the exact production date, material specifications, and ensures the internal nylon cage is not a counterfeit substitute.

Q: Can we directly interchange LM series with LME series bearings?
A: No, direct interchange is highly risky. While Lme10uu, Lme12uu, and Lme16uu share similar designations, the LM series follows Asian metric standards, whereas the LME series follows European dimensional standards. The outer diameter and length often differ slightly, which will cause improper fitment in the housing or excessive play on the shaft. Always verify the exact dimensional drawing.

Q: What are the operational limits of the "uu" double-sided contact seal?
A: The "uu" seal provides excellent protection against dust and retains lubrication, making it ideal for dirty environments like CNC machining. However, the contact lip creates slight friction. In ultra-high-speed applications where heat generation is a primary concern, the friction from the contact seal must be calculated against the system's thermal limits to prevent cage degradation.

Q: Why choose a nylon cage over a steel cage for these linear bearings?
A: Nylon cages offer a significantly lower coefficient of friction and superior damping characteristics, which translates to smoother, quieter operation at high speeds. They also prevent metal-to-metal contact between the rolling elements. Steel cages are generally reserved for extremely high-temperature environments where polymer thermal limits would be exceeded, which is rare in standard automation.

Q: How does the open shape design affect installation and clearance?
A: The open shape (Lm-Op) features a slit along the outer ring, allowing it to be used in adjustable housings. By tightening the housing bolts, the bearing diameter can be slightly reduced to eliminate radial clearance. This is critical for precision applications like measuring instruments, where any residual play would compromise positional accuracy.
