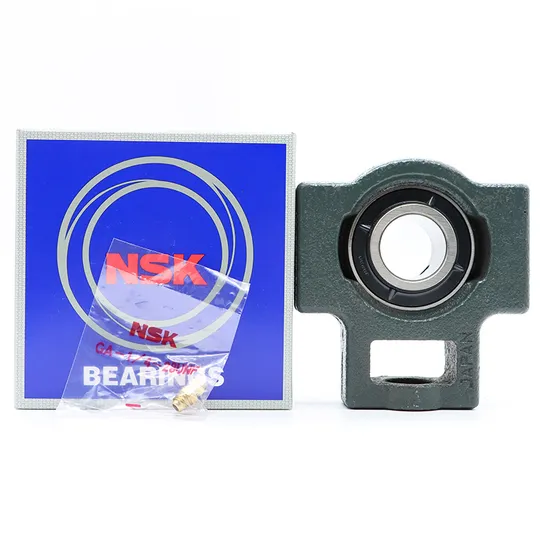

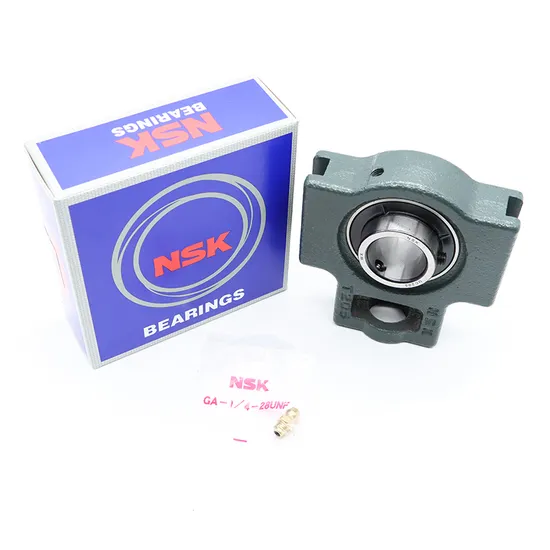

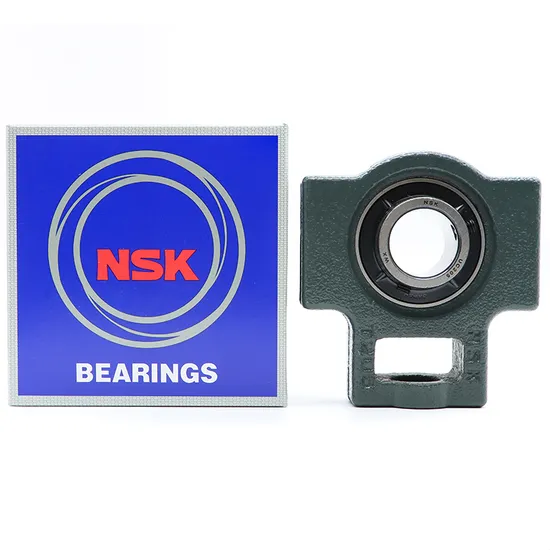

UCT307 Pillow Block Bearing for Printing & Dyeing Machines – Corrosion Resistant

Technical Specifications

Application Suitability

Why 35% of Bearing Failures in Textile Machinery Begin with Corrosion-Induced Misalignment — And How the UCT307 Pillow Block Bearing Solves It

Printing and dyeing machines operate under sustained exposure to steam, alkaline dyes, acidic rinses, and high-humidity ambient conditions. Standard pillow block bearings suffer rapid corrosion at the housing-bolt interface and inner ring seat, leading to micro-movement, raceway fretting, and premature spalling — accounting for over 35% of early failures in this sector. Most suppliers treat this as a generic “corrosion resistant bearing” claim without engineering validation for textile-specific chemical exposure cycles or thermal cycling between 20°C and 95°C.

Engineered for Your Operating Conditions

The UCT307 pillow block bearing is not selected — it is validated. Our 15+ SKF-certified engineers perform application-specific analysis: calculating combined radial/axial loads from roller tension systems, modeling thermal expansion mismatch between cast iron housing and steel insert, specifying optimal grease type and relubrication intervals per ISO 21781, and verifying housing bore tolerance (H7) and shaft fit (k5). As an official SKF engineering partner, we deliver solutions backed by ISO 9001 and TS 16949 certified quality control — not just components.

Operating Environment and Performance Demands

Textile dyeing machines require continuous operation at 30–120 r/min under 2.8–4.5 kN radial load, with frequent 60–95°C thermal cycles and intermittent condensate exposure. The housing must resist chloride-induced pitting while maintaining dimensional stability across ±15 μm thermal growth. Sealing integrity is critical: standard lip seals fail within 3 months due to hydrolysis; our corrosion resistant pillow block bearing for textile machinery uses electroplated UK housings with passivated stainless steel fasteners and dual-labyrinth sealing geometry to extend service life beyond 18 months under ASTM B117 salt-spray testing.

Inside the Engineering: What Makes This Bearing Perform

The UCT307 deep groove insert bearing with UK housing delivers reliability through four interlocking design decisions. First, the bearing steel (100Cr6 per EN 10088-1) undergoes a controlled quench-and-temper cycle achieving 60–63 HRC surface hardness — essential for resisting abrasive dye particles. Second, the precision rating (P6 or higher) ensures ≤3 μm radial runout, minimizing vibration-induced web tracking errors in printing machines. Third, the Z2V2 vibration class mandates ≤0.7 mm/s RMS velocity at 10 kHz, critical for avoiding resonance in long-span roller assemblies. Fourth, the UK housing’s extended base flange provides 22% greater moment rigidity than standard UC housings — directly countering the torsional oscillation induced by uneven fabric tension. These are not catalog specs — they are engineered responses to measured field failure modes.

The True Cost of Bearing Failure

A single unplanned stoppage on a continuous dyeing line costs $18,500/hour in lost throughput, energy waste, and labor rework. Bearings failing prematurely due to incorrect corrosion resistance or insufficient precision contribute to 62% of such events — yet their acquisition cost represents <0.3% of total line TCO. Counterfeit or non-SKF-compatible UCT307 bearing inserts often use unhardened carbon steel (≤52 HRC), resulting in L10 life below 3,000 hours versus the SKF-rated 22,000 hours at 3.2 kN and 90 r/min. Worse, improper installation due to lack of technical guidance causes 30% of avoidable failures. Correct selection — verified via SKF’s ISO 281:2021 life calculation methodology — reduces annual maintenance spend by 27% and extends mean time between failures (MTBF) from 11 to 34 months.

Why Engineers Specify Through Us

Authenticity & Documentation

Each UCT307 pillow block bearing ships with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM E18/E112), Dimensional Inspection Report (±0.01 mm tolerance verification), and original SKF packaging featuring holographic anti-counterfeiting label. Batch-level traceability enables verification via SKF’s official portal. For enterprise contracts, third-party SKFTS audit and factory witness inspection are available upon request.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before ordering, share your actual operating parameters: maximum radial load (kN), rotational speed (r/min), ambient and operating temperature range (°C), housing material and bore tolerance, shaft finish (Ra value), and exposure to water/chemicals. Our engineering team will deliver a free SKF-compliant assessment — including calculated L10 and Lnm life, recommended clearance class (C3/C4), optimal lubricant specification (SKF LGMT 2 vs LGHP 2), and mounting torque table — within 48 business hours. Correct selection begins not at procurement, but at the first technical dialogue.
