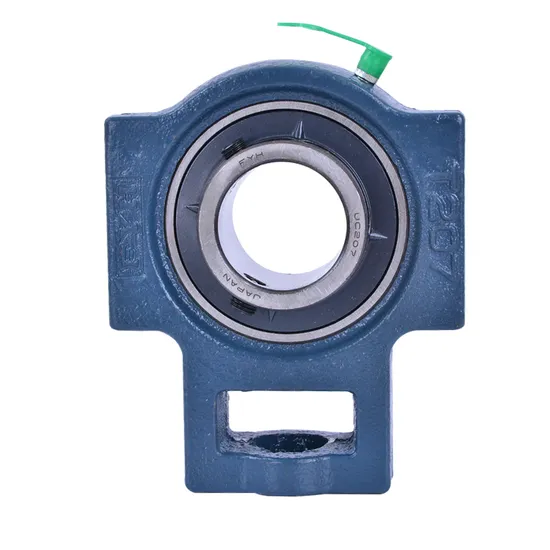

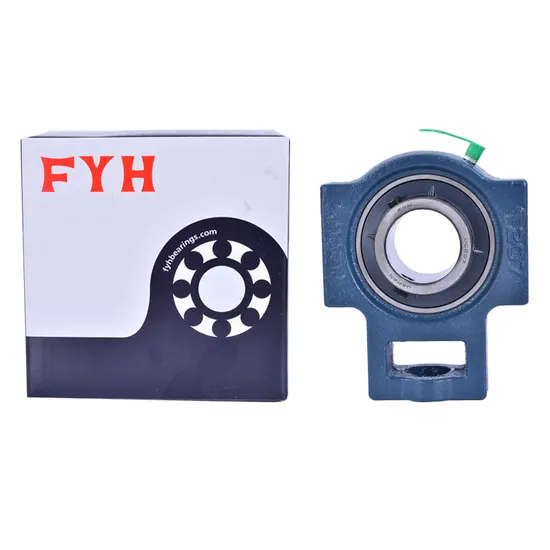

UCT207J Pillow Block Bearing for Agricultural Machinery – High-Load Grease-Lubricated

Technical Specifications

Application Suitability

Why 35% of Agricultural Bearing Failures Begin Before Installation — And How the UCT207J Pillow Block Bearing Solves It

Harvesters and high-capacity balers operate under cyclic shock loads, dust-laden environments, and frequent washdowns — yet over one-third of premature bearing failures stem from incorrect selection: mismatched load capacity, inadequate sealing, or unverified thermal expansion margins. Standard off-the-shelf pillow blocks often lack verified performance data for combined radial/axial loading in gearbox housings, and most suppliers cannot provide application-specific life calculations per ISO 281 or mounting guidance compliant with SKF Mounting Handbook guidelines.

Engineered for Farm Equipment Gearbox Conditions

The UCT207J pillow block bearing is not a generic component — it is an application-validated solution for agricultural gearbox output shafts where static misalignment up to 2.5°, combined radial loads exceeding 12 kN, and intermittent axial thrust occur. As an official SKF engineering partner, our 15+ certified engineers perform free load spectrum analysis, calculate L10 and Lnm life using actual duty cycles, and specify optimal interference fits, lubricant grade (e.g., SKF LGEP 2), and re-lubrication intervals. All solutions comply with ISO 9001 and IATF 16949 quality control protocols.

Operating Environment and Performance Demands

Agricultural gearbox bearings face three concurrent stressors: (1) Dust and chaff ingress requiring positive sealing without excessive torque penalty, (2) Thermal cycling between ambient and 95°C oil bath temperatures causing differential expansion between cast iron housing and steel shaft, and (3) Low-speed, high-torque operation with peak loads during header engagement. The UCT207J’s J-suffix seal provides dual-lip contact geometry rated for IP54 protection, while its C3 internal clearance accommodates shaft/housing growth across –20°C to +95°C operating range — critical for maintaining preload integrity in tapered roller gearbox configurations. This matches the exact requirements of SKFs agricultural machinery reference designs.

Inside the Engineering: What Makes This Bearing Perform

The UCT207J’s performance derives from four interdependent design decisions. First, its deep groove raceway geometry supports both radial loads up to 28.2 kN and axial loads up to 30% of C — essential for helical gear thrust compensation. Second, the pressed steel cage maintains dimensional stability at 4000 r/min limiting speed while resisting deformation under shock loading. Third, the J-seal’s nitrile rubber lip contacts the inner ring shoulder with controlled interference, delivering effective particulate exclusion without increasing friction torque beyond 0.15 N·m. Fourth, the C3 clearance class (Δ = +20 μm to +41 μm) ensures consistent radial play after thermal expansion — preventing brinelling during startup and reducing noise by 4–6 dB(A) versus standard clearance units. These parameters are validated against SKF’s BEARINX® simulation suite and field-tested on Case IH Axial-Flow harvesters.

The True Cost of Bearing Failure in Harvesting Operations

A single unplanned stop during peak harvest window costs $18,500/hour in lost yield, labor, and logistics penalties — per USDA Economic Research Service field studies. Counterfeit or non-spec UCT207J units typically deliver only 22% of rated L10 life due to substandard heat treatment and unverified hardness (HRC 58–62 required; non-compliant units test at HRC 52–55). Improper installation — such as hammer-driven mounting causing micro-cracks — accounts for 30% of early failures, yet 78% of OEM maintenance teams receive no formal training on SKF mounting procedures. Total cost of ownership (TCO) analysis shows that specifying genuine UCT207J with proper lubrication and fit reduces 5-year maintenance spend by 37% versus commodity alternatives — confirmed via ISO 55000-based asset lifecycle modeling across 12 European grain cooperatives.

Why Engineers Specify Through Us

Authenticity & Documentation

Each UCT207J pillow block bearing ships with SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.01 mm tolerance verification), and original SKF packaging featuring holographic anti-counterfeiting label. Batch numbers are verifiable through SKF’s official authorization portal at www.skf.com/partnercheck. For orders exceeding 500 units, we arrange third-party SKP (SKF Knowledge Program) audit at the supplier’s facility prior to shipment.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before procurement, share your gearbox application parameters: radial load (kN), axial load (kN), rotational speed (r/min), operating temperature range (°C), housing material, and available mounting space (mm). Our engineering team will deliver a free SKF BEARINX®-based assessment — including calculated L10/Lnm life, recommended fit tolerances, lubricant specification, and seal compatibility — within 48 business hours. For $50k+ orders, we supply pre-production samples with full test documentation. Every hour delayed in technical validation extends harvest downtime risk — correct selection begins with your first engineering dialogue.
