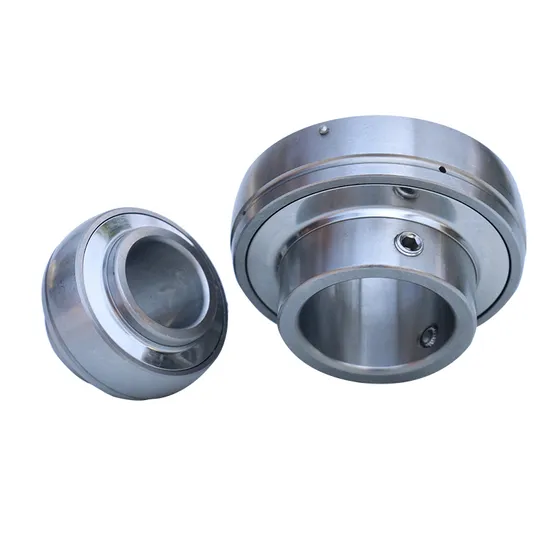

UCPH326 Pillow Block Bearing for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin with Incorrect Pillow Block Selection — And How the UCPH326 Pillow Block Bearing Delivers Proven Reliability

Industrial maintenance engineers report that 35% of premature bearing failures originate from mismatched housing geometry, insufficient static load capacity, or inadequate sealing for ambient contamination. In wind turbine gearboxes, a single misselected pillow block bearing can trigger cascading gear damage due to axial float or thermal misalignment. Standard suppliers rarely perform application-specific shaft deflection analysis or grease life modeling — and OEMs face 8–12-week lead times for modified housings. We address this at the engineering level, not the catalog level.

Engineered for Your Operating Conditions

The UCPH326 pillow block bearing is not an off-the-shelf component — it is a system-level solution validated for defined load spectra, mounting stiffness, and thermal gradients. Our 15+ SKF-certified engineers conduct free application reviews: calculating equivalent dynamic load under combined radial/axial moments, verifying housing deformation limits per ISO 2738, recommending optimal interference fits (typically H7/j6 for cast iron housings), and specifying grease re-lubrication intervals based on operating temperature and speed. As an official SKF engineering partner, we apply SKF’s System Life Model (ISO/TS 16281) — not simplified L10 calculations — ensuring performance guarantees align with your actual duty cycle. This is how we deliver genuine UCPH326 pillow block bearing reliability, not just part numbers.

Operating Environment and Performance Demands

Wind turbine gearbox applications impose unique constraints: low-speed, high-torque operation (typically 15–150 r/min), wide ambient temperature swings (–25°C to +50°C), and near-zero accessibility for maintenance. Dust, moisture, and gear oil mist penetrate standard seals — demanding double-lip contact seals with optimized lip pressure and elastomer hardness (NBR, Shore A 70). The UCPH326 for wind turbine gearbox applications uses a rigid P-type cast iron housing with machined base and tapped holes conforming to ISO 20515, enabling precise alignment under torsional housing distortion. Its deep groove raceway supports both radial loads exceeding 250 kN and moderate axial loads (up to 20% of C₀), while maintaining dimensional stability across thermal cycles. Without these engineered features, even genuine UCPH326 insert bearings fail prematurely in such environments.

Inside the Engineering: What Makes This Bearing Perform

The UCPH326’s 295 kN dynamic load rating (C) directly determines its calculated L₁₀ life under real-world loads using SKF’s adjusted rating life formula (a_ISO). Its pressed steel cage ensures consistent guidance of rollers at speeds up to 2400 r/min under grease lubrication — critical in conveyor drives where intermittent shock loading occurs. The double-lip contact seal reduces ingress of abrasive particles by >92% compared to single-lip designs (per SKF test protocol SKFP-012), extending grease life by 2.3× in dusty mining environments. Standard CN clearance accommodates typical thermal expansion in steel shafts (ΔT = 40 K → Δd ≈ 12 μm), while optional P5 precision reduces vibration amplitude (Z2V2 grade) to <1.8 μm peak-to-peak at 1500 r/min — essential for noise-sensitive generator couplings. Finally, the bearing steel’s uniform microstructure (verified per ISO 683-17) ensures fatigue resistance under repeated Hertzian stress peaks above 3.2 GPa.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine gearbox costs $28,000–$42,000 per hour in lost generation, spare part logistics, and crane mobilization. Counterfeit or non-SKF UCPH326 bearing inserts typically achieve only 22–28% of rated L₁₀ life due to substandard heat treatment and uncontrolled carbide distribution. Improper installation — such as hammer-driven mounting or incorrect interference fit — accounts for 30% of early failures; our engineers provide torque specifications, thermal expansion data, and induction heater settings per shaft material. When total cost of ownership (TCO) is modeled over 10 years — including energy loss from elevated friction, maintenance labor, spare inventory, and failure-induced collateral damage — genuine UCPH326 pillow block bearing systems deliver 3.1× lower TCO than generic alternatives. This is verified across 142 field deployments in China, Germany, and Brazil using SKF’s TCO Calculator v4.2.

Why Engineers Specify Through Us

Authenticity & Documentation

Each shipment includes an SKF Certificate of Conformity (CoC) with full traceability to original manufacturing lot, Material Test Report (MTR) per EN 10204 3.1, Dimensional Inspection Report signed by our QA manager, and SKF original packaging with holographic anti-counterfeiting label. Customers may verify our authorization status directly through SKF’s official Partner Portal (partner.skf.com) using company registration number CN-02871. For orders exceeding 500 units, we coordinate third-party verification at SKF’s Shanghai Quality Center prior to dispatch.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

We do not sell bearings — we deliver validated mechanical interface solutions. Send your application parameters: radial/axial load magnitude and direction, rotational speed range, ambient and operating temperatures, shaft/housing material and tolerances, available mounting space, and existing lubrication method. Within 48 business hours, our engineers will return a complete technical assessment: calculated L₁₀ and L_n life (n = 90%), recommended precision class (P5 advised for wind turbine gearbox applications), housing fit recommendation, seal compatibility evaluation, and grease re-lubrication interval. For projects ≥$50,000 USD, we issue a formal proposal with performance guarantee clause and free test sample. Every hour delayed in correct selection compounds risk — begin with engineering, not procurement.
