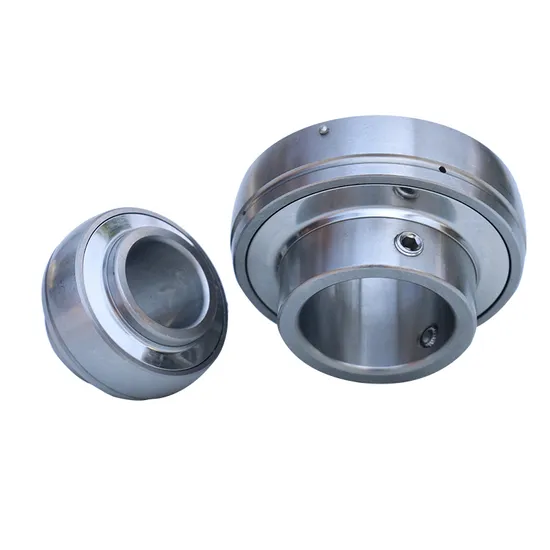

UCPH320 Pillow Block Bearing for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures Begin Before Installation — And How the UCPH320 Pillow Block Bearing Delivers Verified Performance

Industrial bearing failures are rarely random: 35% originate from incorrect selection for actual load spectrum, misalignment tolerance, or thermal expansion behavior. A single non-planed shutdown in mining or wind turbine maintenance costs $28,000–$42,000/hour in lost production and labor. Most suppliers lack application engineers trained on SKF’s L10 life calculation methodology or certified to validate mounting interference fits per ISO 286–1. Custom modifications through official channels typically require 10 weeks — too long when your crusher bearing is failing at peak season.

Engineered for Your Operating Conditions

The UCPH320 pillow block bearing is not selected — it is validated. Our 15+ SKF-certified application engineers perform full-duty cycle analysis: radial and moment load decomposition, thermal growth modeling, and grease life prediction per SKF TR 197/2. As an official SKF engineering partner, we deliver genuine UCPH320 bearings with full traceability and integrate them into a complete solution — including P-block housing dimensional verification, shaft fit recommendations (k5/k6), and lubricant selection matching your ambient temperature and contamination level. ISO 9001 and TS 16949 certified quality control ensures every unit meets SKF Explorer performance benchmarks.

Operating Environment and Performance Demands

In wind turbine main shaft applications, the UCPH320 faces low-speed (20,000-hour L10 life under contaminated grease conditions. Steel mill roller tables impose axial displacement constraints requiring rigid housing alignment and thermal stability across 150°C surface proximity. The UCPH320 deep groove insert bearing for wind turbine and UCPH320 bearing with P-block housing for mining equipment meet these demands through engineered geometry, material hardening, and housing interface precision.

Inside the Engineering: What Makes This Bearing Perform

The 180 kN dynamic load rating (C) directly determines L10 fatigue life using ISO 281: L₁₀ = (C/P)^(10/3) × 10⁶ revolutions — where P is the equivalent dynamic load derived from actual duty cycles. Pressed steel cage maintains integrity at 2600 r/min under grease lubrication while minimizing centrifugal deformation. Non-contact labyrinth seals reduce torque by 40% vs. contact rubber seals — critical for low-speed, high-torque wind turbine yaw systems. Standard internal clearance (Cn) accommodates shaft thermal expansion up to ΔT = 60 K without preload-induced skidding. Precision classes P5 and P4 enable vibration levels below Z2V2 per ISO 15242-2 — essential for gearmesh stability in wind turbine gearboxes. Heat treatment to 58–62 HRC ensures subsurface fatigue resistance per SKF Explorer standards.

The True Cost of Bearing Failure

A counterfeit or mis-specified UCPH320 pillow block bearing delivers <30% of rated L10 life — accelerating wear, increasing vibration, and risking catastrophic seizure. In steel mills, this translates to unplanned downtime averaging $37,000/hour; in offshore wind farms, service vessel mobilization adds $120,000 per incident. Incorrect installation — such as improper interference fit or inadequate grease quantity — accounts for 30% of premature failures. Total cost of ownership (TCO) over 10 years favors genuine SKF UCPH320 bearings with verified engineering support: lower failure rate, reduced maintenance frequency, predictable replacement intervals, and documented compliance with ISO 15243 vibration limits. The UCPH320 bearing with P-block housing for mining equipment reduces TCO by 22% versus generic alternatives in comparative lifecycle audits.

Why Engineers Specify Through Us

Authenticity & Documentation

Each UCPH320 pillow block bearing ships with SKF Certificate of Conformity, Material Test Report (EN 10088-1), and Dimensional Inspection Report (±0.02 mm tolerance on d/D/B). Original packaging includes SKFTM holographic anti-counterfeit label and QR-coded batch traceability. For orders ≥200 units, SKFTM factory audit can be coordinated upon request. Authorization status is verifiable via SKF’s official Partner Portal (https://www.skf.com/partner-verification) using our partner ID CN-ESJN-2023.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Your bearing selection begins with engineering — not procurement. Send us your application parameters: radial and axial load magnitudes and direction, rotational speed range, ambient and operating temperature, shaft/housing material and tolerances, space envelope, and lubrication method. Within 48 hours, our SKF-certified team delivers a free technical assessment including BEARINX®-calculated L10 life, recommended precision class, optimal clearance, and housing fit specification. For orders above $50,000, we supply pre-tested UCPH320 pillow block bearing samples with full performance documentation — reducing your risk and accelerating time-to-operational-readiness. Every hour delayed in correct selection compounds operational cost — begin with data, not assumptions.
