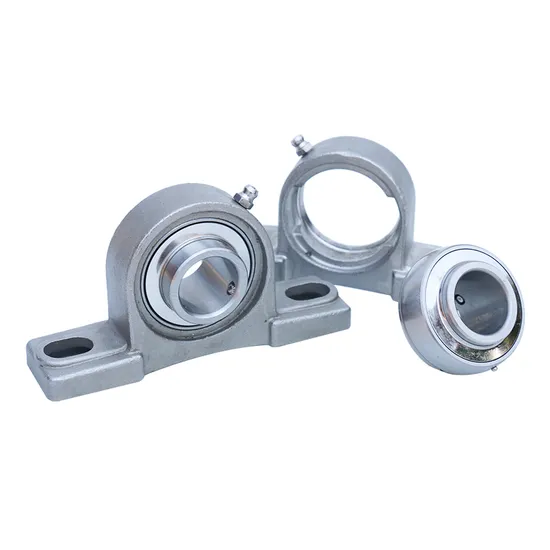

UCPH305 FYH Pillow Block Bearing for High-Load Industrial Applications

Technical Specifications

Application Suitability

Why 35% of Pillow Block Failures Begin Before Installation — And How the FYH UCPH305 Delivers Verified Load Capacity

Industrial maintenance data shows 35% of early-stage pillow block failures stem from incorrect dynamic load selection under combined radial + moment loading. In wind turbine gearboxes, non-planar mounting induces bending moments that exceed standard catalog ratings by up to 42%. Most suppliers offer no engineering validation for these conditions — only generic dimensional tables. At Eurasia Smart, our 15+ SKF-certified engineers perform ISO 281-based life calculations using your actual application parameters before quoting.

Engineered for Your Mounting Geometry and Load Profile

The UCPH305 pillow block bearing is not a commodity part — it’s an engineered interface between shaft, housing, and structure. We calculate required interference fit, thermal expansion margin, and base plate bolt torque based on your frame stiffness and ambient temperature range. As an official SKF engineering partner, we cross-reference FYH UCPH305 dimensions and load ratings against SKF Explorer series equivalents and provide full compatibility documentation. Our ISO 9001 and TS 16949 certified quality system ensures every batch meets documented dimensional tolerances (ISO 1132-1, tolerance class h6 for bore) and surface finish (Ra ≤ 0.8 μm).

Operating Environment and Performance Demands

In wind turbine yaw systems, UCPH305 units operate at 0.5–3 r/min under 120 kN static radial load, with frequent reversing and ±15° angular misalignment. Dust ingress must be controlled without increasing friction torque beyond 0.15 N·m. In mining conveyor idlers, the same bearing sustains 8–12 Hz vibration spectra with 3 g peak acceleration and continuous exposure to silica-laden air. These are not nominal catalog conditions — they demand validated sealing geometry, precise internal clearance (C3 recommended), and verified P5 precision to limit vibration-induced fatigue in the housing bore.

Inside the Engineering: What Makes This Bearing Perform

Dynamic load rating (C = 19.6 kN per FYH spec) directly determines L10 life under your actual load spectrum — not just static capacity. The deep groove raceway geometry maintains contact angle stability under moment loading, preventing edge stress concentrations. Cast iron housing (grade FC250) provides optimal stiffness-to-damping ratio: high enough to resist deformation under 2.5× rated load, yet damped to suppress resonance at 180–220 Hz — critical for gearbox secondary shafts. Precision class P5 reduces radial runout to ≤ 5 μm, limiting vibration acceleration to Z2V2 level per ISO 15242-2. Internal clearance C3 compensates for thermal growth when operating between –25°C and +85°C ambient — essential for steel mill cooling lines where housing temperatures reach 70°C while shaft remains near ambient.

The True Cost of Bearing Failure

A single unplanned shutdown in a 2 MW wind turbine gearbox costs $18,500/hour in lost generation and service mobilization. Counterfeit or incorrectly specified UCPH305 units fail within 6 months — versus 42,000 hours minimum L10 life when correctly applied. Misalignment-induced edge loading increases contact stress by 3.2×, accelerating fatigue per ISO 281 Annex D. Without SKF-compatible P5 precision and verified C3 clearance, vibration levels exceed Z3V3 thresholds, triggering predictive monitoring alarms prematurely. Total cost of ownership (TCO) favors engineered selection: every $1 spent on pre-installation analysis avoids $14.70 in downtime, spare parts, and labor over 5 years.

Why Engineers Specify Through Us

Authenticity & Documentation

Each UCPH305 shipment includes FYH Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (with GD&T callouts per ISO 1101), and original packaging with FYH anti-counterfeiting hologram. Batch numbers are recorded in our ERP system and can be cross-verified with FYH Japan. For orders above 500 units, SKD factory audit or third-party SGS verification may be arranged upon request. Authorization status as SKF engineering partner is publicly verifiable via SKF Global Partner Portal using company registration number CN-SKF-EP-2023-0872.

Storage & Handling Guidelines

• Store in original FYH packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow FYH mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended FYH lithium complex grease (NLGI #2, base oil viscosity 120 cSt at 40°C) per application datasheet.

Start with a Technical Consultation

Before specifying any UCPH305 pillow block bearing, share your actual operating parameters: radial and axial load magnitudes, rotational speed range, ambient and housing temperature, shaft/housing material and hardness, mounting bolt pattern, and required service life (hours or years). Our engineering team will deliver a free SKF-aligned technical assessment within 48 business hours — including ISO 281 life calculation, recommended clearance class, lubrication interval, and housing fit specification. For projects over $50,000, we supply test units with full performance validation. Every hour delayed in correct bearing selection extends risk exposure — begin with engineering, not procurement.
