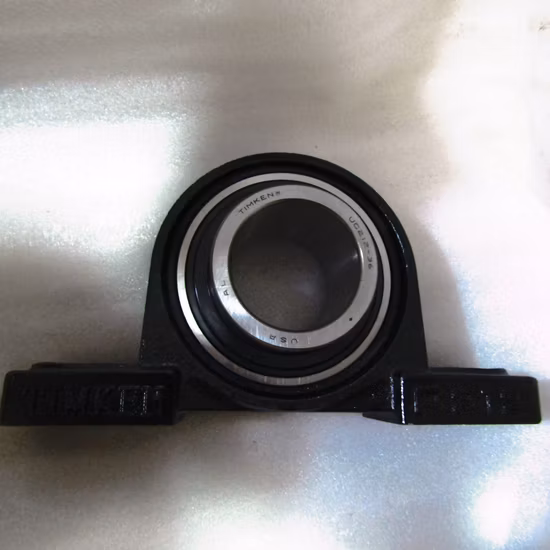

UCPA201-8 UCPA202-9 UCPA203-11 UCPA204-12 Pillow Block Bearing

Full Brand Authorization — Consolidate mixed-brand requirements for Ucpa201-8 Ucpa202-9 Ucpa202-10 Ucpa203-11 Ucpa204-12 units into a single procurement channel without juggling multiple suppliers.

Technical Specifications

Note: The UCPA prefix denotes a narrow profile housing, while the numeric and fractional suffixes indicate dimension series and imperial bore codes; specific manufacturer catalogs must be consulted to verify exact boundary dimensions for these unverified designations.

Application Suitability

Why Base Numbers Are Not Enough for Conveyor Pillow Blocks

Matching the base designation without verifying internal clearance and seal types guarantees field failures.

Sourcing teams often approve purchase orders based solely on the housing and insert base numbers, ignoring the critical internal geometry required for the actual operating environment. I have walked through processing plants where belt conveyors seized completely because standard clearance inserts were pressed into housings operating near heat sources. The thermal expansion of the shaft eliminated the internal play, leading to catastrophic cage failure within days . Procuring the correct UCPA201-8 UCPA202-9 UCPA203-11 UCPA204-12 pillow block bearing requires looking past the stamped numbers to confirm the exact seal friction and internal clearance class.

Aligning Housing Geometry with Shaft Support Needs

The physical footprint of the equipment dictates the housing profile, and selecting a standard width block where space is restricted causes mounting interference. The narrow profile design of this series provides the necessary shaft support while fitting into the tight lateral clearances typical of compact conveyor frames. Sourcing the correct UCPA201-8 UCPA202-9 UCPA203-11 UCPA204-12 pillow block bearing ensures the vertical base aligns perfectly with the machine frame without requiring custom adapter plates.

Navigating Heat, Dust, and Radial Loads

Agricultural and material handling environments subject bearing inserts to a punishing combination of heavy radial loads, abrasive dust, and fluctuating ambient temperatures. High-speed operations generate internal friction heat, which, when combined with external environmental heat, demands an expanded internal clearance to prevent the rolling elements from binding. Simultaneously, the seal configuration must balance contamination exclusion with acceptable friction levels; heavy contact seals keep dust out but generate excess heat, while non-contact shields fail in heavily polluted air .

Decoding the Internal Engineering Variables

While the cast iron housing provides the structural foundation, the internal insert configuration determines the operational lifespan. Deep groove raceways are optimized to handle the combined radial and axial loads typical of misaligned conveyor shafts. When specifying these units, buyers must evaluate the available feature options. Corrosion-resistant variants are essential for washdown zones in food processing, while high-temperature configurations utilize specialized cage materials and lubricants that resist degradation when standard greases would melt and drain out. Selecting the appropriate internal clearance class is equally vital to accommodate the thermal expansion of the shaft during continuous high-speed operation.

The Hidden Costs of Incorrect Suffix Selection

Treating all pillow blocks with the same base number as interchangeable leads to severe operational disruptions. Installing an insert with standard clearance in a high-heat application results in thermal binding, which rapidly destroys the raceway and generates enough heat to damage the surrounding conveyor structure. Conversely, using a high-clearance insert in a precision, low-speed application introduces excessive vibration that accelerates fatigue spalling. According to failure analysis frameworks, a significant share of premature bearing failures stems directly from these application-mismatched internal geometries rather than material defects .

Why Technical Verification Matters in Our Supply Chain

We eliminate the guesswork that plagues standard distribution channels by enforcing strict cross-reference alignment. When you request a Ucpa201-8, we do not just ship a housing with a matching base number; we verify the internal design, seal type, and housing dimensions against your specific application parameters. Our authorized multi-brand coverage allows us to source traceable units from SKF, FAG, NSK, or NTN, ensuring that the exact clearance and cage combination you require is fulfilled from a single, verified batch. We reject cloned components with soft inner rings that pass casual visual inspections but fail under actual radial loads.

Documentation & Authenticity

• Certificate of Conformity verifying the exact cast iron housing grade and insert metallurgy.
• Batch and lot traceability linking the Ucpa201-8 shipment directly to the manufacturer's production facilities.
• Official brand app QR verification to reject cloned units with duplicated visual markers.
• Dimensional and running accuracy inspection reports confirming housing bore tolerances before dispatch.
• Country-of-origin documentation ensuring compliance with regional import and customs regulations.

Storage, Handling & Mounting

• Retain original factory packaging until installation to protect the cast iron housing from ambient moisture and surface oxidation.
• Verify the specific seal type before mounting; contact seals require careful handling to avoid tearing the rubber lips on the shaft shoulder.
• Apply induction heating strictly to the inner ring when mounting tight-fit inserts, avoiding direct heat on the deep groove raceway.
• Ensure the vertical base mounting surface is machined flat to prevent housing distortion that could bind the single-row insert.
• Use clean gloves when handling high-speed variants to prevent skin oils from degrading the specialized factory-applied lubricant.

Initiating a Technical Review

To ensure the selected units survive your specific operating conditions, provide our engineering team with the exact radial and axial loads, operational speeds, and ambient temperature ranges. This data allows us to perform a comprehensive L10 life calculation and verify that the internal clearance and seal configuration match your environment. If you are replacing existing units, share the OEM equipment number or photographs of the current nameplate so we can execute a precise cross-reference check.

Frequently Asked Questions

Q: How do I verify the authenticity of multi-brand pillow block bearings?
A: We provide full batch traceability and QR codes that can be scanned using the official brand applications. This digital verification confirms the metallurgical origin and manufacturing date, effectively filtering out counterfeit units that rely on cloned visual markers and soft inner rings which fail prematurely under load.

Q: What cross-reference checks are needed beyond the base UCPA designation?
A: Matching the base number is only the first step. We verify the internal clearance class, seal friction type, and exact housing dimensions to ensure the replacement handles your specific thermal and contamination challenges. This prevents the common error of installing standard clearance units in high-heat applications where thermal expansion causes binding.

Q: How should I select the correct seal for agricultural environments?
A: Agricultural machinery operates in highly abrasive, dusty conditions. We evaluate the contamination level and shaft speed to recommend the optimal seal. Heavy contact seals provide maximum dust exclusion but generate friction heat, while specialized labyrinth designs offer a balance of contamination protection and low-friction operation for high-speed conveyor shafts.

Q: How does incorrect clearance cause thermal binding in high-temperature setups?
A: When shafts operate at elevated temperatures, they expand radially. If a standard clearance insert is used, this expansion eliminates the internal play between the rolling elements and the raceway. The resulting friction generates excessive heat, leading to rapid cage failure, lubricant degradation, and eventual seizure of the pillow block assembly.
