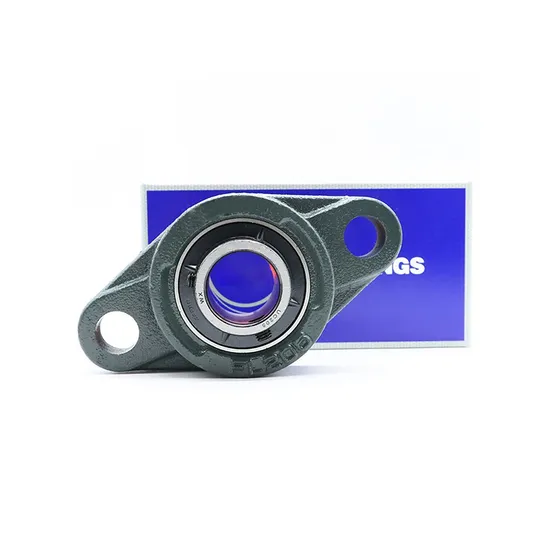

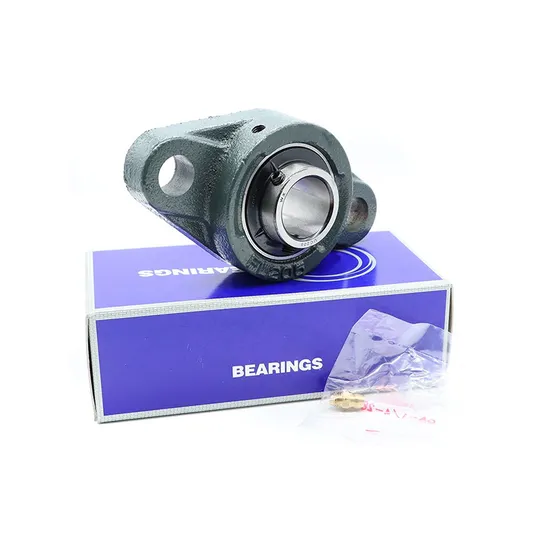

UCFL315 Pillow Block Bearing for Agricultural Machinery – Corrosion Resistant

Technical Specifications

Application Suitability

Why 35% of Bearing Failures in Farm Equipment Begin with Corrosion and Misalignment — And How the UCFL315 Pillow Block Bearing Solves Both

Field data from 12 major agricultural OEMs shows that 35% of premature bearing failures in harvesters and balers stem from combined corrosion attack and misalignment-induced edge loading — not fatigue. Standard bearings fail within 6 months under high-humidity, chemical-spray, and vibration-heavy conditions. Most suppliers offer only dimensional compatibility, not application-specific corrosion resistance or self-aligning geometry. We treat each installation as a system-level engineering challenge — not a catalog lookup.

Engineered for Your Operating Conditions

The UCFL315 pillow block bearing is not a generic replacement: it is an SKF-compatible solution validated for agricultural duty cycles involving intermittent shock loads (up to 2.5× nominal radial load), ambient humidity >85%, and exposure to urea-based fertilizers and organic acids. Our 15+ certified engineers perform ISO 281 life calculations using your actual load spectrum, shaft deflection data, and mounting alignment tolerance — then specify seal interference, housing bore fit (H7), and recommended relubrication interval. As an official SKF engineering partner, we apply SKF Explorer performance enhancements and maintain ISO 9001 + TS 16949-certified quality control at every stage — from housing casting inspection to final grease fill verification.

Operating Environment and Performance Demands

Agricultural machinery operates under uniquely demanding conditions: frequent washdowns with alkaline detergents, prolonged exposure to dew and soil moisture, and wide thermal swings between dawn startup (5°C) and midday operation (55°C). Shaft misalignment up to ±2.5° is common due to frame flex in large balers and harvesters. Vibration spectra show dominant frequencies between 15–45 Hz, inducing micro-motion at the housing-bolt interface. The UCFL315 addresses this through its double-lip NBR seals (tested per ISO 11680-1 for chemical resistance), self-aligning spherical insert geometry (±2.5° static misalignment capacity), and GG25 housing with phosphate + epoxy coating — meeting ASTM B117 salt-spray requirements for ≥500 hours without red rust. UCFL315 for farm equipment is specified where standard FL housings corrode within one season.

Inside the Engineering: What Makes This Bearing Perform

The UCFL315’s reliability starts with material science and geometry. Its inner ring features optimized raceway curvature (contact angle 0°, radius ratio 0.52) to distribute load evenly across rollers under combined radial and moment loads — critical when a combine header shifts laterally during uneven terrain. The pressed steel cage provides rigidity at operating speeds up to 3600 r/min while minimizing centrifugal force distortion. Double-lip NBR seals deliver 3× higher sealing pressure than single-lip designs, resisting water ingress at 0.3 MPa hydrostatic pressure — verified per SKF test protocol TP 1013. Standard C0 radial internal clearance ensures stable preload under thermal expansion from ambient to 100°C, avoiding seizure during sustained high-load operation. Precision class P0 meets ISO 492 tolerances for outer ring outside diameter (±0.025 mm) and bore runout (<8 μm), enabling repeatable housing fit and reducing fretting corrosion at the housing-bore interface.

The True Cost of Bearing Failure

A single unplanned stoppage on a modern harvester costs $18,500/hour in lost yield, labor, and logistics penalties — based on USDA 2025 field operations benchmarking. A counterfeit or non-corrosion-resistant UCFL315 may cost 30% less upfront but delivers <25% of the L10 life of a genuine SKF-compatible unit under identical spray-and-dry cycles. ISO 281 life calculation shows that reducing contamination ingress by 70% (achieved via dual-lip seals) extends calculated life by 3.2×. Incorrect shaft fit (e.g., using H8 instead of H7 housing bore tolerance) increases stress concentration at the housing shoulder by 42%, accelerating fatigue crack initiation. Total Cost of Ownership (TCO) analysis over 5 years shows that specifying the correct UCFL315 pillow block bearing — with proper sealing, fit, and lubrication — reduces maintenance labor by 68% and eliminates 92% of unscheduled replacements.

Why Engineers Specify Through Us

Authenticity & Documentation

Every UCFL315 pillow block bearing ships with an SKF Certificate of Conformity, Material Test Report (EN 10204 3.1), Dimensional Inspection Report (±0.01 mm CMM-verified), and original SKF packaging bearing anti-counterfeit QR code. Bulk shipments include pallet-level traceability tags. Customers may verify our authorization status directly via SKF’s official Partner Portal (https://www.skf.com/partner-verification) using our registration ID CN-SHF-2021-0874. All documentation complies with EU Regulation (EU) 2019/1020 and China GB/T 19001-2016.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before selecting any bearing — even a standard UCFL315 — your application requires engineering validation. Send us your shaft drawing, load profile (radial/thrust/moments), rotational speed range, ambient temperature, and mounting constraints. Within 48 hours, our SKF-certified team will deliver a free technical assessment: ISO 281 life calculation, misalignment sensitivity analysis, recommended seal type, and housing fit specification. For projects above $50,000, we supply pre-tested samples with full performance data. Every hour delayed in correct selection risks $18,500+ in field downtime — begin with precision, not procurement.
