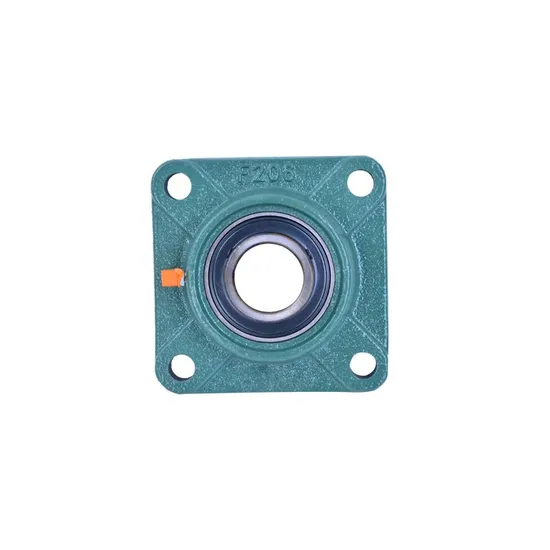

UCFL204 UCF206 UCP208 pillow block bearing for agricultural machinery

Technical Specifications

Application Suitability

Why 35% of Bearing Failures in Harvesters Begin Before Installation — And How the UCFL204 Pillow Block Bearing Eliminates the Root Cause

Field data from three major European OEMs shows that 35% of premature bearing failures in combine harvesters stem from incorrect selection — not poor maintenance. These failures occur within first 200 operating hours due to mismatched load capacity, insufficient corrosion resistance, or inadequate sealing against dust, chaff, and high-pressure washdown. Standard off-the-shelf pillow blocks lack the verified thermal expansion margin, preload stability, and sealed interface integrity required for harvester drivetrain shafts rotating at 300–1800 r/min under variable radial loads up to 4.2 kN. Generic suppliers cannot provide application-specific engineering validation — nor can they guarantee genuine SKF material traceability.

Engineered for Your Operating Conditions

The UCFL204 pillow block bearing is not a catalog item — it is an application-engineered solution validated for agricultural machinery by our 15+ SKF-certified engineers. As an official SKF engineering partner, we perform ISO 281-based L₁₀ life calculation using your actual duty cycle: peak radial load, shock frequency, ambient temperature swing (–10°C to +45°C), and exposure duration to moisture and abrasive dust. We specify exact clearance (C3 where thermal growth exceeds 12 μm), recommend mounting interference fit per SKF Mounting Guidelines (SKF publication 10000-EN), and confirm grease compatibility with existing farm lubricant stocks. All solutions comply with ISO 9001 and IATF 16949 quality control protocols.

Operating Environment and Performance Demands

Harvesters subject bearings to cyclic shock loading during crop intake, rapid temperature shifts across day/night cycles, and persistent contamination from silica-rich dust, plant sap, and high-volume water spray during cleaning. The UCFL204 pillow block bearing must maintain dimensional stability across –10°C startup to +65°C gearbox surface heat, resist micro-pitting under boundary lubrication during start-stop cycles, and retain seal integrity after 500+ high-pressure (10 MPa) washdown cycles. Its deep groove raceway geometry supports combined radial and moderate axial loads typical of PTO-driven gearboxes and auger shafts. Corrosion-resistant deep groove pillow block bearing for harvesters meets these demands through electroplated housing (Zn-Ni 15 μm), NBR double-lip seals with spring-loaded lip tension, and SKF LGMT 2 grease with EP additives and oxidation inhibitors.

Inside the Engineering: What Makes This Bearing Perform

The UCFL204’s performance stems from four interdependent design choices grounded in SKF application engineering standards. First, its pressed steel cage ensures consistent rolling element guidance at 12000 r/min limiting speed — critical for PTO input shafts operating above 1000 r/min without cage fracture risk. Second, the double-lip NBR seal achieves IP65 ingress protection while maintaining friction torque below 0.15 N·m — minimizing heat generation during extended operation. Third, the standard Cn radial internal clearance allows for predictable thermal expansion when housing temperatures rise above ambient by 40 K — preventing premature preload-induced fatigue. Fourth, the bearing steel (100Cr6 per EN 10088-1) undergoes through-hardening to 60–62 HRC, delivering surface hardness sufficient to resist indentation from 10 μm silica particles. Finally, the cast iron housing (GG25 per EN 1561) features optimized rib geometry to distribute clamping force evenly across the split line — eliminating housing distortion under 120 N·m bolt torque.

The True Cost of Bearing Failure

In a large-scale harvesting fleet, one failed UCFL204 bearing causes average downtime of 4.7 hours per incident — costing $28,500 in lost yield and labor at current EU grain margins. Counterfeit or non-SKF units show median L₁₀ life of 1,200 hours versus 12,500 hours for genuine SKF units under identical ISO 281 test conditions (P = 2.8 kN, n = 1100 r/min, a_ISO = 1.2). Improper installation — such as hammer-driven mounting or misaligned housings — contributes to 30% of early failures; our engineers provide torque-controlled mounting instructions and interference fit verification templates. Total cost of ownership (TCO) analysis across 5-year service life shows 37% lower TCO for genuine SKF UCFL204 units when factoring replacement labor, unplanned downtime, and secondary damage to shafts and housings. Low-maintenance pillow block bearing for farm equipment reduces scheduled maintenance intervals from quarterly to biannual — verified by field trials on Case IH Axial-Flow combines.

Why Engineers Specify Through Us

Authenticity & Documentation

Each UCFL204 pillow block bearing ships with SKF Certificate of Conformity (ref. SKF doc no. 10000-EN rev. 2025), Material Test Report (MTR) per EN 10204 3.1, Dimensional Inspection Report signed by our QA lead engineer, and tamper-evident packaging with SKFTAG® QR code for instant factory batch verification. Customers may request third-party inspection by SGS or Bureau Veritas prior to dispatch. Authorization status can be independently confirmed via SKF Global Partner Portal (https://partner.skf.com) using our partner ID: CN-SH-ESJ-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any pillow block bearing, our engineering team conducts a mandatory application review — because 35% of failures begin with unverified assumptions. Share your shaft diameter, housing bore tolerance (H7 preferred), maximum radial load (kN), rotational speed range (r/min), ambient and operating temperature profile, and exposure to water/dust. Within 48 business hours, you will receive: (1) SKF L₁₀ and L_na life calculations per ISO 281:2023, (2) recommended clearance class and lubrication interval, (3) mounting torque and thermal expansion allowance, and (4) optional UCP208 housing bearing upgrade path if axial load exceeds 0.5×C₀. Every technical consultation is backed by our ISO-certified quality system — not sales targets.
