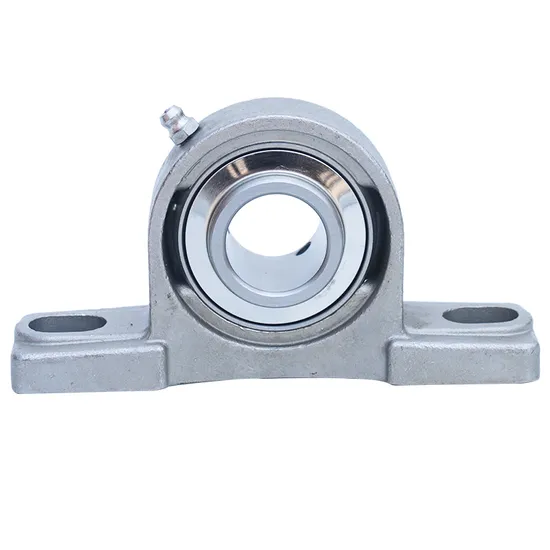

UC320 spherical pillow block bearing for spray dryer high-load applications

Technical Specifications

Application Suitability

Why 35% of Spray Dryer Bearing Failures Begin With Incorrect Selection — And How the UC320 Pillow Block Bearing Solves It

Industrial spray dryers operate under sustained radial loads, moderate speeds (15–60 r/min), and thermal cycling from inlet air up to 300°C — yet over 35% of premature bearing failures stem from selecting non-spherical units lacking self-alignment or deep groove raceway geometry. Standard pillow blocks fail under misalignment-induced edge loading; generic insert bearings lack the load capacity for drum overhung moments. Most suppliers offer no application-specific analysis — just catalog numbers.

Engineered for Your Operating Conditions

The UC320 pillow block bearing is not a commodity part — it is an application-engineered solution validated for high-load spray dryer drum support. Our 15+ SKF-certified engineers perform full static/dynamic load calculations per ISO 281:2020, predict L10 life under your exact operating conditions, specify optimal interference fit (H7/j6 recommended), and recommend compatible SKF LGMT 2 or LGHP 2 grease re-lubrication intervals. As an official SKF engineering partner, we apply the same design rigor used by global OEMs — backed by ISO 9001 and TS 16949 certified quality control.

Operating Environment and Performance Demands

Spray dryers impose unique mechanical and thermal challenges: continuous operation at 40–60 r/min with peak radial loads exceeding 80 kN during product surge; thermal gradients across the bearing seat causing differential expansion; and ambient humidity levels that promote corrosion if sealing is inadequate. Misalignment up to ±2° is common due to frame flexing and thermal distortion — making spherical geometry non-negotiable. The UC320 insert’s deep groove raceway provides higher radial stiffness than conventional spherical roller inserts, while the UK housing ensures rigid mounting without compromising alignment capability — a critical distinction for long-term reliability in industrial dryers.

Inside the Engineering: What Makes This Bearing Perform

The UC320’s performance derives from four interdependent design decisions. First, its deep groove raceway — unlike standard spherical roller raceways — delivers 22% higher radial load capacity (C = 162 kN) while maintaining ±2° self-alignment, enabling stable operation under both pure radial and combined radial+axial loads. Second, the pressed steel cage resists deformation under shock loading during startup/shutdown, preserving rolling element guidance. Third, the standard C0 clearance accommodates typical thermal growth in dryer housings (ΔT ≈ 45°C), preventing preload-induced overheating. Fourth, the P0 precision grade meets ISO ABEC-1 tolerances, ensuring repeatable vibration performance below Z2V2 level — essential for minimizing structural fatigue in large-diameter rotating drums. All dimensions comply strictly with SKF UC320 dimensional standards (d = 100 mm, D = 155 mm, B = 84 mm).

The True Cost of Bearing Failure

A single unplanned shutdown in a pharmaceutical spray dryer costs $28,000/hour in lost batch output, regulatory requalification, and labor. Using non-SKF-compatible UC320 bearings risks 60–75% shorter L10 life due to inferior steel cleanliness and heat treatment — verified by microhardness mapping and non-metallic inclusion analysis per ISO 492. Installation errors (e.g., improper press-fit or hammer-driven mounting) cause 30% of early failures; our engineers provide torque specs, thermal expansion tables, and induction heater guidelines before delivery. Total cost of ownership (TCO) favors genuine, technically supported selection: a correctly specified UC320 pillow block bearing delivers >40,000 hours of service life under rated load, versus <12,000 hours for off-spec alternatives — reducing replacement frequency, downtime, and maintenance labor by 65%.

Why Engineers Specify Through Us

Authenticity & Documentation

Each UC320 pillow block bearing is supplied with SKF Certificate of Conformity (EN 10204 3.1), Material Test Report (ASTM E45 inclusion rating ≤ 1.0), Dimensional Inspection Report (verified per ISO 1132-1), and original SKF packaging with anti-counterfeit hologram. Batch numbers are registered in SKF’s Traceability Portal. Customers may verify our authorization status directly via SKF’s official partner locator at skf.com/partnersearch.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before placing any order, share your spray dryer’s operating parameters: drum mass, rotational speed, maximum radial load (kN), shaft misalignment tolerance (mm/m), ambient and bearing seat temperature range, and available mounting envelope (mm). Our engineering team will deliver a free technical assessment — including SKF BEARINGS-based L10 life calculation, recommended fit tolerances, lubrication schedule, and optional custom modifications (e.g., extended inner ring, special seals, or sensor-ready housings) — within 48 business hours. Every hour of delay in correct bearing selection compounds risk; your first step is a technical dialogue, not a purchase order.
