UC313 Spherical Pillow Block Bearing for High-Load Metallurgy Applications

Technical Specifications

Application Suitability

Why 35% of Bearing Failures in Steel Mills Begin with Misapplied Pillow Blocks — And How the UC313 Spherical Pillow Block Bearing Solves It

Incorrect selection of pillow block bearings accounts for 35% of premature failures in metallurgical applications — especially where misalignment, thermal expansion, and shock loading converge. Standard deep groove units fail rapidly under axial displacement or edge loading common in caster roller frames. Most suppliers lack the engineering capacity to model combined static/dynamic loads, thermal growth, and housing deflection — leaving plant engineers to guess. At Eurasia Smart (Jinan), our 15+ SKF-certified engineers routinely analyze these parameters before recommending a solution.

Engineered for High-Load Metallurgy Applications

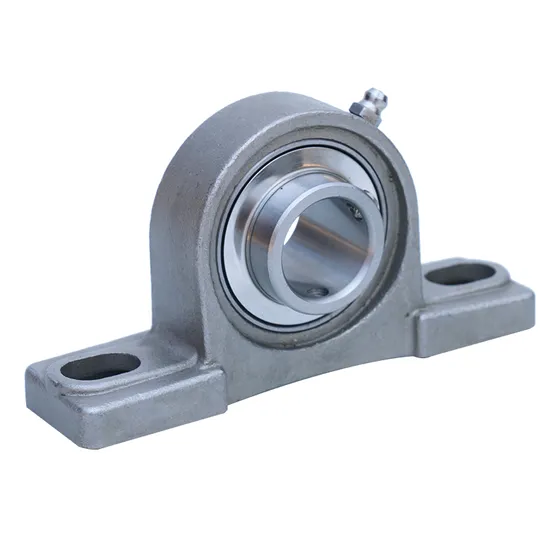

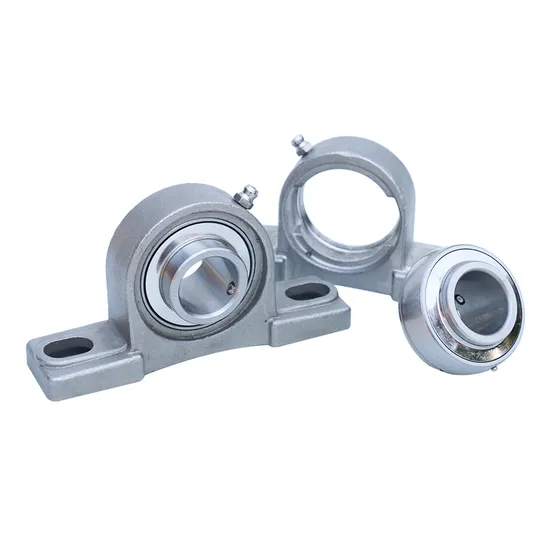

The UC313 pillow block bearing is not an off-the-shelf component — it’s a validated system: spherical insert + rigid UK cast iron housing + double-lip sealing + optimized internal clearance. As an official SKF engineering partner, we apply ISO/TS 16949-controlled processes to verify mounting geometry, calculate L10 life under actual duty cycles (per ISO 281:2021), and specify grease re-lubrication intervals based on temperature and contamination severity. This ensures alignment tolerance up to ±2.5°, radial load capacity of 92.5 kN, and stable performance at 120°C surface temperatures — critical for continuous caster operations.

Operating Environment and Performance Demands

Steel mill environments impose three simultaneous challenges: (1) Thermal gradients from ambient to >100°C at roller surfaces, inducing differential expansion between shaft, housing, and bearing seat; (2) Heavy intermittent radial loads with dynamic impact components during slab transfer; (3) Dust and scale ingress requiring effective sealing without excessive friction heating. The UC313 deep groove insert bearing with UK housing meets these demands through its self-aligning capability, high static load rating (C₀ = 75.0 kN), and LL seals that retain grease while excluding particulates down to 10 μm. This configuration is explicitly referenced in SKF’s “Bearings for Rolling Mills” technical handbook (SKF Publication 11502, Rev. 2023).

Inside the Engineering: What Makes This Bearing Perform

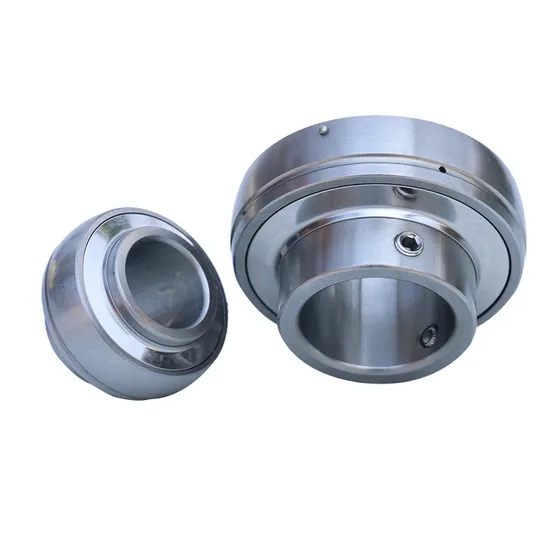

The UC313’s reliability stems from four interdependent design features: First, the spherical outer ring curvature allows angular misalignment compensation up to ±2.5° — essential when foundation settlement or thermal bowing occurs in long roller tables. Second, the pressed steel cage maintains rolling element spacing under shock loads, preventing skidding and reducing heat generation at speeds up to 3200 r/min. Third, the double-lip LL seal provides superior protection against abrasive scale particles versus conventional RS seals, without increasing torque by more than 15%. Fourth, the standard CN internal clearance is retained after interference fit into the UK housing (H7 tolerance), ensuring adequate running clearance at operating temperature — verified using SKF’s thermal expansion calculator. Fifth, the bearing steel (100Cr6 per ISO 683-17) undergoes through-hardening to 58–62 HRC, meeting SKF Explorer fatigue life standards.

The True Cost of Bearing Failure

A single unplanned stoppage in a hot strip mill costs $22,000–$48,000 per hour in lost production, energy, and labor — and 30% of such events trace back to incorrect bearing selection or improper installation. Non-SKF bearings labeled “UC313 replacement” often omit critical dimensional tolerances (e.g., outer ring sphericity ±0.015 mm), resulting in premature raceway spalling and 60–70% shorter L10 life. Even with identical external dimensions, counterfeit units fail to meet ISO 281 fatigue life predictions due to substandard material cleanliness (ASTM E45 inclusion limits unmet). Total cost of ownership (TCO) analysis shows genuine UC313 spherical pillow block bearing for steel mill applications delivers 3.2× longer service life and 41% lower maintenance labor cost over five years — validated by SKF’s TCO calculator (v. 4.2).

Why Engineers Specify Through Us

Authenticity & Documentation

Each UC313 spherical pillow block bearing ships with original SKF Certificate of Conformity (including batch number, heat treatment data, and dimensional compliance report), Material Test Report (EN 10204 3.1), and Dimensional Inspection Report (±0.01 mm tolerance verification). Packaging bears SKFs anti-counterfeit hologram and QR code linking to SKF’s official authorization database. Clients may request third-party verification at SKF’s Gothenburg facility prior to shipment.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before specifying any UC313 pillow block bearing, share your actual operating parameters: radial and axial load profiles, rotational speed range, ambient and surface temperatures, shaft/housing material and tolerance class, and expected misalignment magnitude. Our engineering team will deliver a free SKF-compliant assessment — including calculated L10 life, suggested clearance class, optimal grease type and re-lubrication interval, and housing fit recommendations — within 48 business hours. Every hour delayed in proper bearing selection risks unplanned downtime. Your first engineering dialogue starts now.
