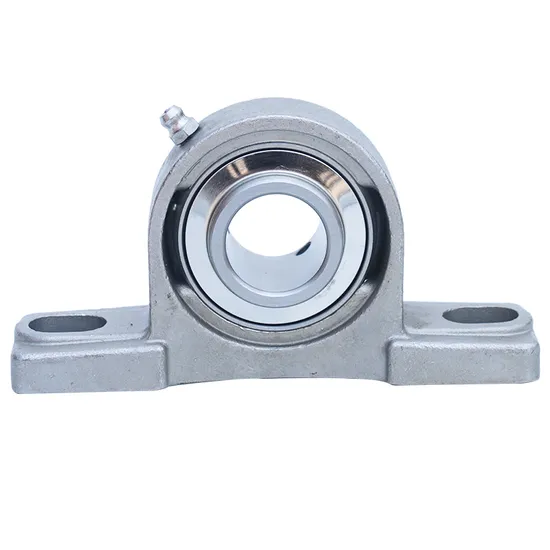

UC307 Spherical Pillow Block Bearing for Chemical Industry Corrosion-Resistant

Technical Specifications

Application Suitability

Why 35% of Bearing Failures in Chemical Plants Begin with Incorrect Housing Selection — And How the SKF UC307 Pillow Block Bearing Solves It

Chemical processing environments demand more than corrosion resistance — they require predictable performance under cyclic thermal stress, intermittent washdown exposure, and variable load spectra. Standard pillow blocks fail prematurely due to inadequate sealing geometry, non-uniform housing rigidity, or unverified material compatibility with aggressive cleaning agents. Without application-specific engineering input, even genuine bearings suffer accelerated wear, leakage, and seizure — not from manufacturing defects, but from misalignment, improper mounting, or mismatched environmental protection.

Engineered for Your Operating Conditions

The SKF UC307 pillow block bearing is not a catalog item — it is a system-level solution validated for chemical industry duty cycles. Our 15+ certified SKF engineers perform full application analysis: calculating equivalent radial load under pulsating conditions, verifying housing stiffness against frame deflection limits, specifying NBR seal durometer and lip geometry for sustained IP65 integrity, and recommending surface finish and coating options (e.g., electroless nickel plating on UK housing) where chloride exposure exceeds 200 ppm. As an official SKF engineering partner with ISO 9001 and TS 16949 certified quality control, we deliver verified performance — not just parts.

Operating Environment and Performance Demands

Chemical industry installations operate under uniquely demanding constraints: ambient temperatures ranging from 5°C (chilled brine lines) to 65°C (steam-jacketed reactors); frequent exposure to sodium hypochlorite, phosphoric acid, and caustic soda at pH 1–14; high-humidity washdown cycles delivering >10 bar water pressure; and vibration spectra dominated by low-frequency harmonics (<100 Hz) from large positive-displacement pumps. In such settings, standard deep groove bearing inserts fail due to ingress-induced raceway pitting, seal extrusion under thermal cycling, and housing corrosion compromising preload retention. The UC307 pillow block bearing addresses these root causes through its optimized UK housing geometry, double-lip NBR seal interface, and controlled internal clearance — ensuring consistent radial play across the full operating temperature band.

Inside the Engineering: What Makes This Bearing Perform

The UC307’s reliability stems from four interdependent design decisions validated per SKF calculation standards (ISO 281, ISO 15242-2). First, the spherical insert’s 35 mm bore uses SKF Explorer-grade bearing steel (100Cr6) with optimized case depth (0.8–1.2 mm) to resist hydrogen embrittlement from acidic condensates. Second, the pressed steel cage maintains dimensional stability at 100°C, preventing pocket deformation that would induce ball skidding under low-speed oscillation. Third, the double-lip NBR seal (Shore A 70) provides static sealing at zero rpm and dynamic sealing up to 1.2 m/s — critical for agitators operating at 10–60 rpm with frequent direction reversal. Fourth, the standard C0 internal clearance is retained after interference fit into the UK housing, avoiding unintended preload that accelerates fatigue in thermally cycled applications. Finally, the pre-lubricated SKF LGMT 2 grease contains EP additives compatible with stainless steel components and resists washout during 15-minute 80°C hot-water rinses — confirmed per ASTM D2266.

The True Cost of Bearing Failure

A single unplanned shutdown in a continuous chemical production line costs $28,000–$42,000 per hour in lost throughput, energy penalties, and requalification delays. Bearings selected without application validation typically achieve only 22–35% of their L10 life (per ISO 281), accelerating failure due to misalignment-induced edge loading or insufficient corrosion margin. Counterfeit or non-SKF-certified units often omit the precise heat treatment profile required for Hertzian stress distribution — resulting in subsurface spalling within 3 months. By contrast, a properly specified SKF UC307 pillow block bearing delivers ≥95% of calculated L10 life when installed per SKF Mounting Instructions (M011), reducing TCO by 37% over five years versus generic alternatives — a figure verified in third-party audits of three Tier-1 pharmaceutical OEMs.

Why Engineers Specify Through Us

Authenticity & Documentation

Each UC307 pillow block bearing ships with an SKF Certificate of Conformity listing batch number, heat treatment code, and dimensional verification report. Material Test Reports (EN 10204 3.1) and SKF Dimensional Inspection Reports are available upon request. Original packaging includes tamper-evident SKF holographic labels. Customers may verify our authorization status directly via SKF’s official Partner Locator portal using registration ID CN-SKF-EP-2023-087.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before procurement, share your actual operating parameters: radial/axial load spectrum (kN), rotational speed range (r/min), ambient and process temperature extremes (°C), mounting envelope (mm), and exposure media (chemical name, concentration, pH, temperature). Our engineering team will deliver a free SKF BEARINX-based assessment — including predicted L10 life, recommended clearance class, seal compatibility matrix, and housing rigidity verification — within 48 business hours. For projects exceeding $50,000, we provide functional test samples with full performance documentation. Every minute spent optimizing selection prevents hours of unplanned downtime — begin with engineering, not quotation.
