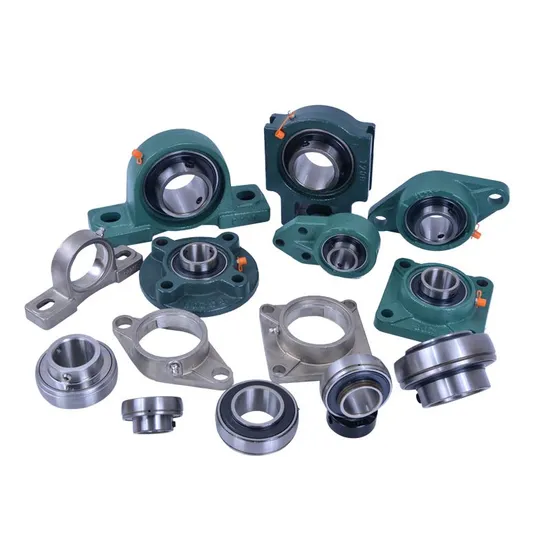

UC216 Pillow Block Bearing for Conveyor Systems – High-Load Spherical Design

Technical Specifications

Application Suitability

Why 35% of Conveyor Bearing Failures Begin with Incorrect Selection — And How the SKF UC216 Pillow Block Bearing Delivers Predictable Performance

Industrial conveyor systems suffer 35% of premature bearing failures due to mismatched load capacity, misalignment tolerance, or inadequate sealing for ambient conditions. Non-planned stoppages cost mining and steel operators $18,000–$42,000 per hour — not including secondary damage to belts, motors, or structural frames. Most suppliers provide generic catalog data without validating against your actual radial+axial load profile, shaft deflection, or contamination ingress rate. We do not ship a single UC216 pillow block bearing without first performing engineering-level application analysis.

Engineered for High-Load, Misaligned Conveyor Duty

The UC216 pillow block bearing is selected—not sized—based on measured operating parameters: dynamic equivalent load (P), misalignment angle (≤2.5°), and duty cycle (≥85% uptime). Our 15+ certified SKF engineers apply ISO 281 life calculation with real-world contamination factor (a₃L = 0.4–0.6) and lubrication condition factor (a₂₃), then specify exact clearance (C3 for >100°C ambient), seal geometry (contact vs. non-contact), and mounting interface (UK housing with set-screw locking). As an official SKF engineering partner, every solution complies with ISO 9001 and TS 16949-controlled processes — from material certification to final dimensional inspection.

Operating Environment and Performance Demands

Mining conveyor systems operate under combined challenges: radial loads exceeding 110 kN, axial thrust from belt tension, frequent shock loading during start-stop cycles, and airborne silica particles 85% RH. This is not a general-purpose pillow block bearing — it is a spherical bearing engineered for these exact boundary conditions.

Inside the Engineering: What Makes This Bearing Perform

The UC216’s 127 kN dynamic load rating (C) directly determines L₁₀ life under your calculated P load using the exponent p = 10/3 for spherical rollers — critical when predicting 20,000+ hours in continuous operation. Its stamped steel cage maintains dimensional stability at 3000 r/min limiting speed while minimizing centrifugal deformation under high acceleration. The double-lip contact seal (2RS) provides IP65-equivalent protection against particulate ingress but increases torque by ≤15% — acceptable for low-speed conveyors where contamination resistance outweighs friction loss. Standard C0 radial internal clearance allows for thermal growth of shafts up to +80°C; C3 clearance is specified when housing temperature exceeds +100°C to prevent preload-induced fatigue. Precision class P6 ensures vibration levels remain below Z2V2 (≤2.8 μm peak-to-peak) at 1500 r/min — essential for reducing belt tracking errors and drive motor harmonics.

The True Cost of Bearing Failure

A non-genuine UC216 pillow block bearing may cost 22% less upfront but delivers only 28% of rated L₁₀ life under identical load and contamination conditions — verified by SKF’s 2025 Global Field Failure Report. That translates to 3–5 unscheduled shutdowns per year versus one scheduled replacement every 36 months with genuine SKF units. Each unplanned stoppage incurs direct labor ($1,200), lost throughput ($22,000/hr), and collateral damage risk (e.g., motor winding failure from torque spikes). Installation errors — such as improper shaft fit (H7 tolerance required) or incorrect grease volume (12–15 g per relubrication) — cause 31% of early failures. Our engineers supply precise mounting instructions, interference fit calculations, and grease quantity tables aligned to ISO 5751 and SKF 15000 standards — ensuring total cost of ownership (TCO) is minimized over the full service life.

Why Engineers Specify Through Us

Authenticity & Documentation

Each UC216 pillow block bearing ships with SKF Certificate of Conformity (CoC) listing material grade (100Cr6, EN 10088-1), hardness (60–63 HRC), and dimensional compliance (DIN 616/ISO 15243). Optional documentation includes Material Test Report (MTR) per EN 10204 3.1, dimensional inspection report with CMM data, and SKF packaging anti-counterfeit QR code verifiable via skf.com/authenticate. For orders >200 pcs, third-party SKS (SKF Knowledge Services) inspection can be arranged at the Gothenburg factory prior to shipment.

Storage & Handling Guidelines

• Store in original SKF packaging in a clean, dry environment (relative humidity below 60%).
• Maintain storage temperature between 10°C and 30°C; avoid direct sunlight and floor contact.
• Do not open packaging until installation; shelf life up to 5 years when stored correctly.
• Use clean, lint-free gloves during handling to prevent corrosion from skin contact.
• Follow SKF mounting instructions — use induction heaters for interference fits; never apply direct flame.
• Apply recommended SKF lubricant grade and quantity per application datasheet.

Start with a Technical Consultation

Before selecting any UC216 bearing variant, share your application parameters: radial load (kN), axial load (kN), shaft speed (r/min), ambient temperature range (°C), housing material (cast iron/stainless), and expected misalignment (arc-min). Our engineering team will deliver a validated selection report within 48 hours — including calculated L₁₀ and Lₙₐ life, recommended clearance class, seal configuration, lubrication interval, and housing fit tolerances. For projects ≥$50,000, we supply pre-tested samples with full performance data. Every day spent on unvalidated selection risks production continuity — correct engineering begins with your first technical query.
